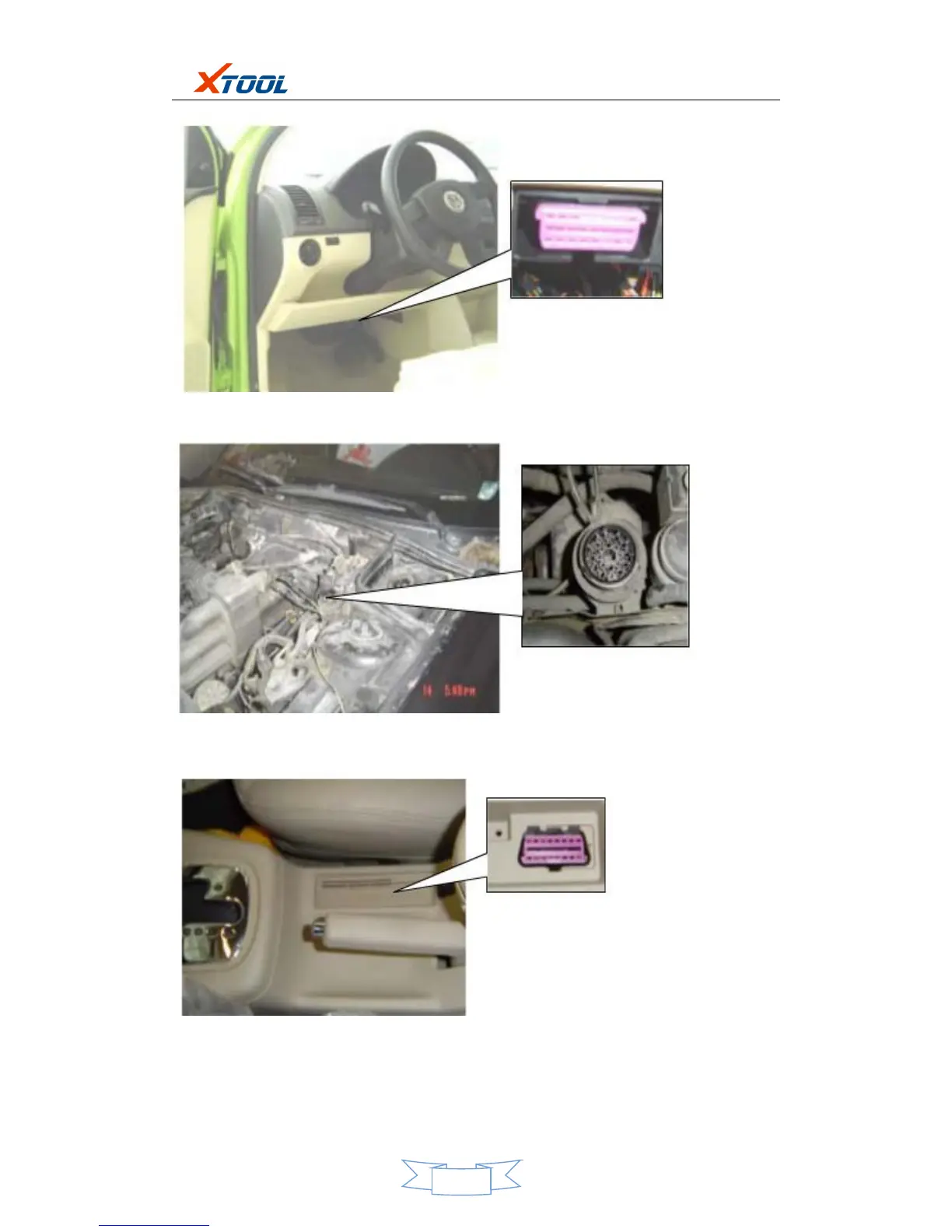

*VW POLO: the OBD plug is below the dashboard; we can use SMART OBDII-16 connector.
*BMW 735I: the OBD plug is in the left side of the engine room, we can use BMW-20
connector.
*VW Passat B5: the OBD plug is behind the gearlever and beside the parking brake lever. It
will appear when take away the cover. we can use SMART OBDII-16 connector.
