Xtool Key & Chip KC501 User Manual

15

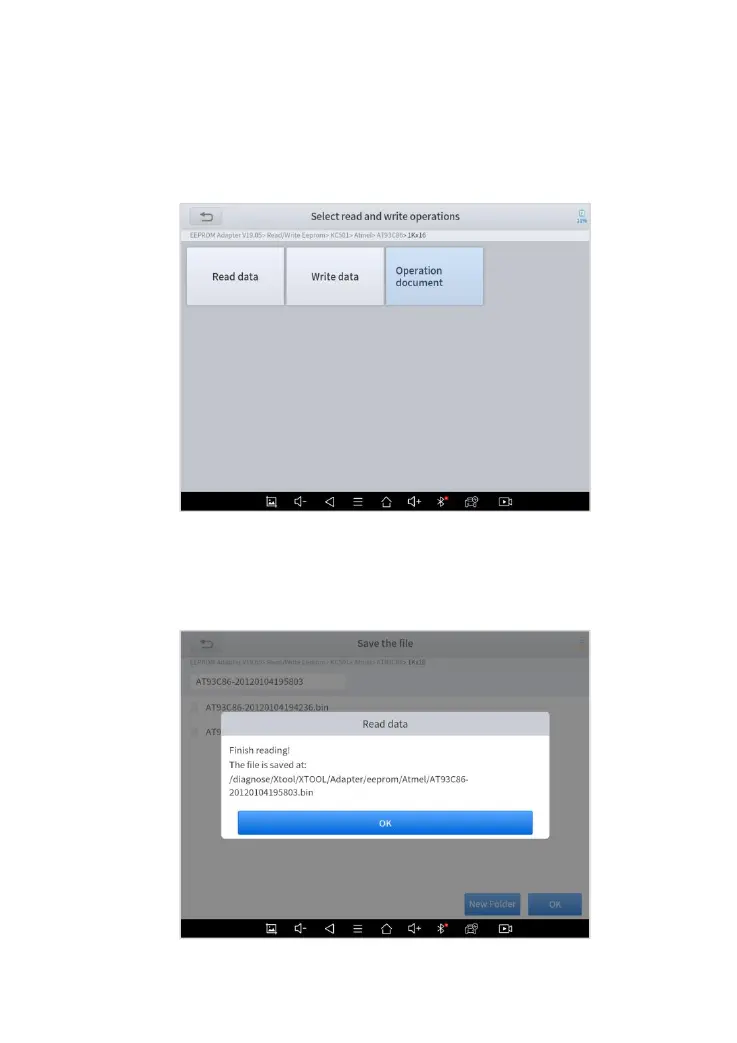

3) There are 3 options under this menu. From Operation
document menu you can find the way to recognize pin 1 on the
EEPROM chip. We will click “Read data” first.
4) Now KC501 will read the data from the EEPROM chip. After it
is done, you can edit the name of the EEPROM file and save it.
The path will be shown on the screen.
