VESDA-EVES-A10-P Product Guide
96 www.xtralis.com

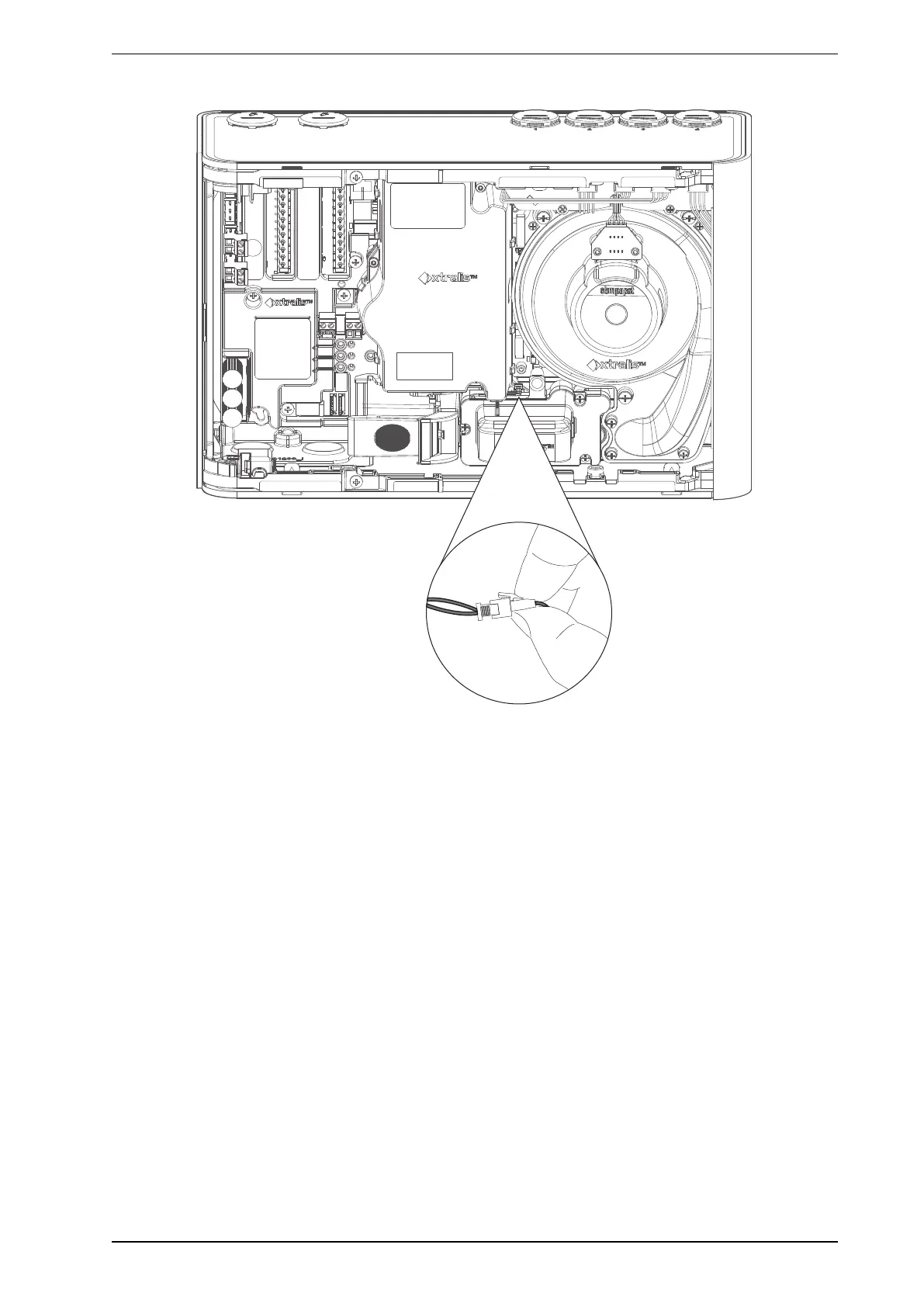

4. Press on the lever on the connector to release the catch (Figure7-20).
Figure7-20: Release the Sampling Module cable
5. Undo the three screws holding the Sampling Module (Figure7-21).
