5 Mounting the Detector
The VLC can be mounted onto the wall using the mounting bracket on any suitable secure surface.
Note: The detector can only be mounted using the mounting bracket included with the packaging.
5.1 Securing the mounting bracket
The mounting bracket for the VLC is always mounted in the UP direction. The mounting bracket is
clearly marked with the word “UP” and an upward pointing arrow.
Legend
A Tab
B This side to detector

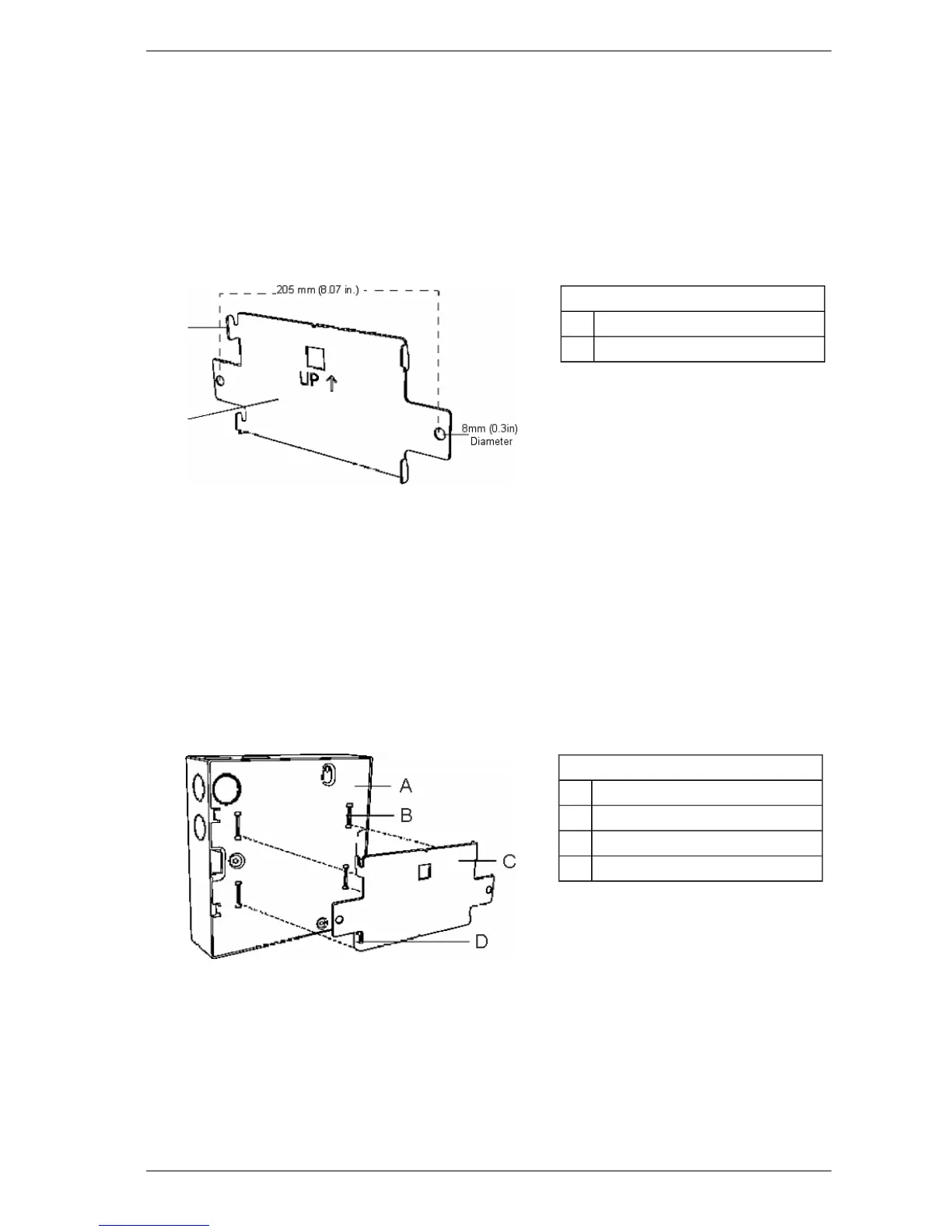

Figure 5-1: The mounting bracket for normal and inverted orientations
Secure the mounting bracket to the surface using appropriate fasteners, ensuring that the bracket is
horizontally straight and sits flush on the surface.
Determine the ports for cable entry. Press out the tabs for the cable entry, air inlet and air exhaust
ports.
5.2 Installing the Detector
Determine the orientation for mounting the VLC detector. Remove the front cover and if necessary
separate it from the enclosure box. The back of the enclosure box is slotted over the four mounting
bracket tabs. Slide the detector downwards until it slides onto the tabs. Screw in the anti-tamper
screw. Check to confirm that the detector does not slide off the mounting bracket.
Legend
A Back of detector
B Rectangle Slots
C Mounting Bracket
D Bracket Tab
Figure 5-2: Mounting the VLC detector onto the mounting bracket
