VESDA Accessories Guide
VESDA by Xtralis
4.1.3 Product Specification
Table 4-1: Specifications for display module
Supply Voltage 18 to 30 VDC
Dimensions (WHD) 105 mm x 130 mm x 30 mm (4.1 in x 5.3 in x 1.2 in)
Operating Temperature 0° to 39° C (32° F to 103° F)
Humidity 10-99 % RH non-condensing
Alarm Indicators High Intensity LEDs with 70 degree viewing a
Push Button Keys Mode/Test
Silence/Scan
Reset
Isolate
Can be disabled during commissioning (except Silence)
Fault Indicators System, Power, Airflow, VESDA Address (also called
Zones), Network, Filter, Urgent (This indicator will only
illuminate in conjunction with another fault indicator)
4.1.4 Overview
Legend
A Threshold Indicators D Alarm LED’s G Front Decal
B Bargraph E Fault LED’s H Module Processor Card
C Numerical Display F Push button Keys

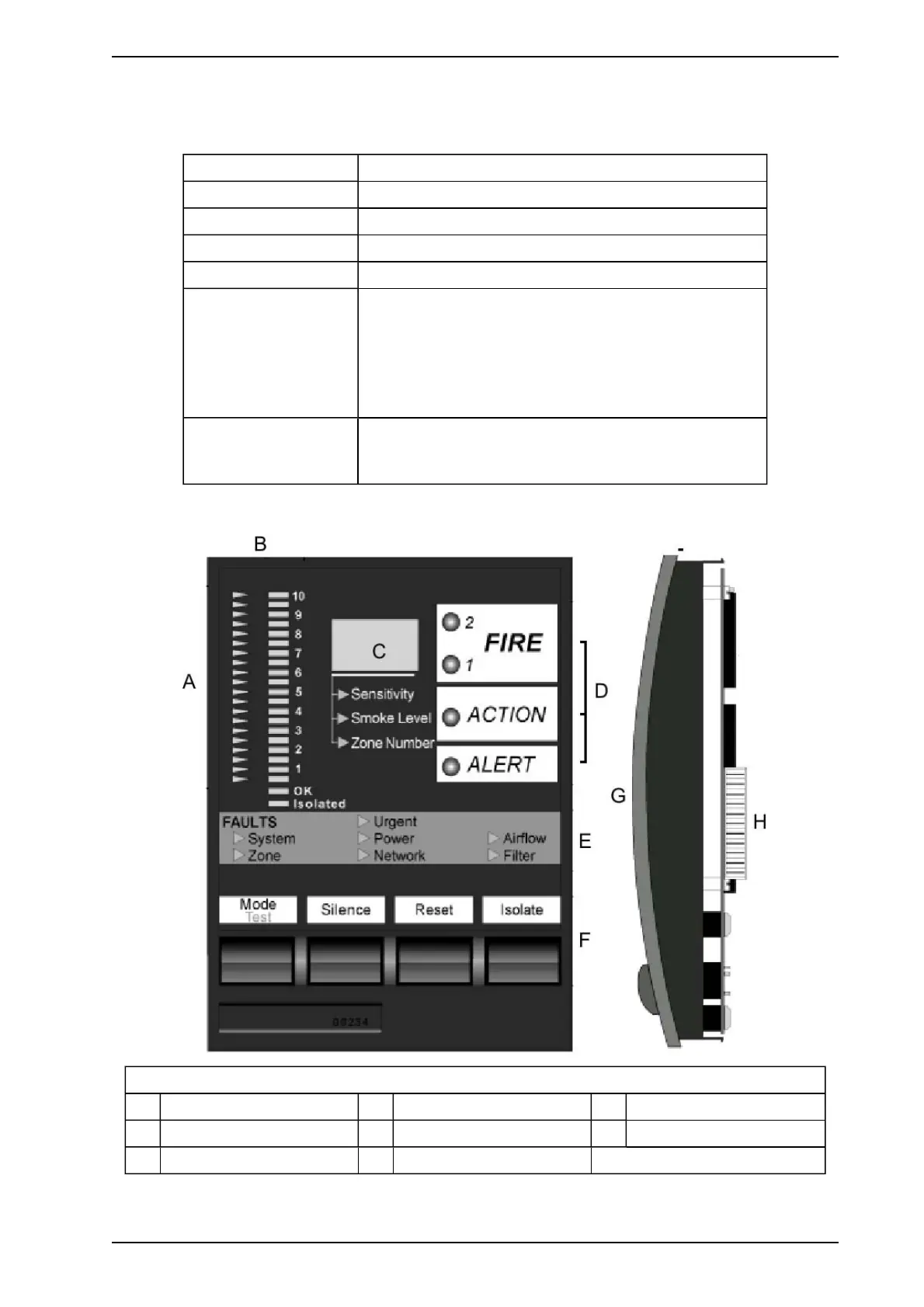

Figure 4-1: Display Module
