VESDA Accessories Guide
5 Other Accessories
5.1 Labels

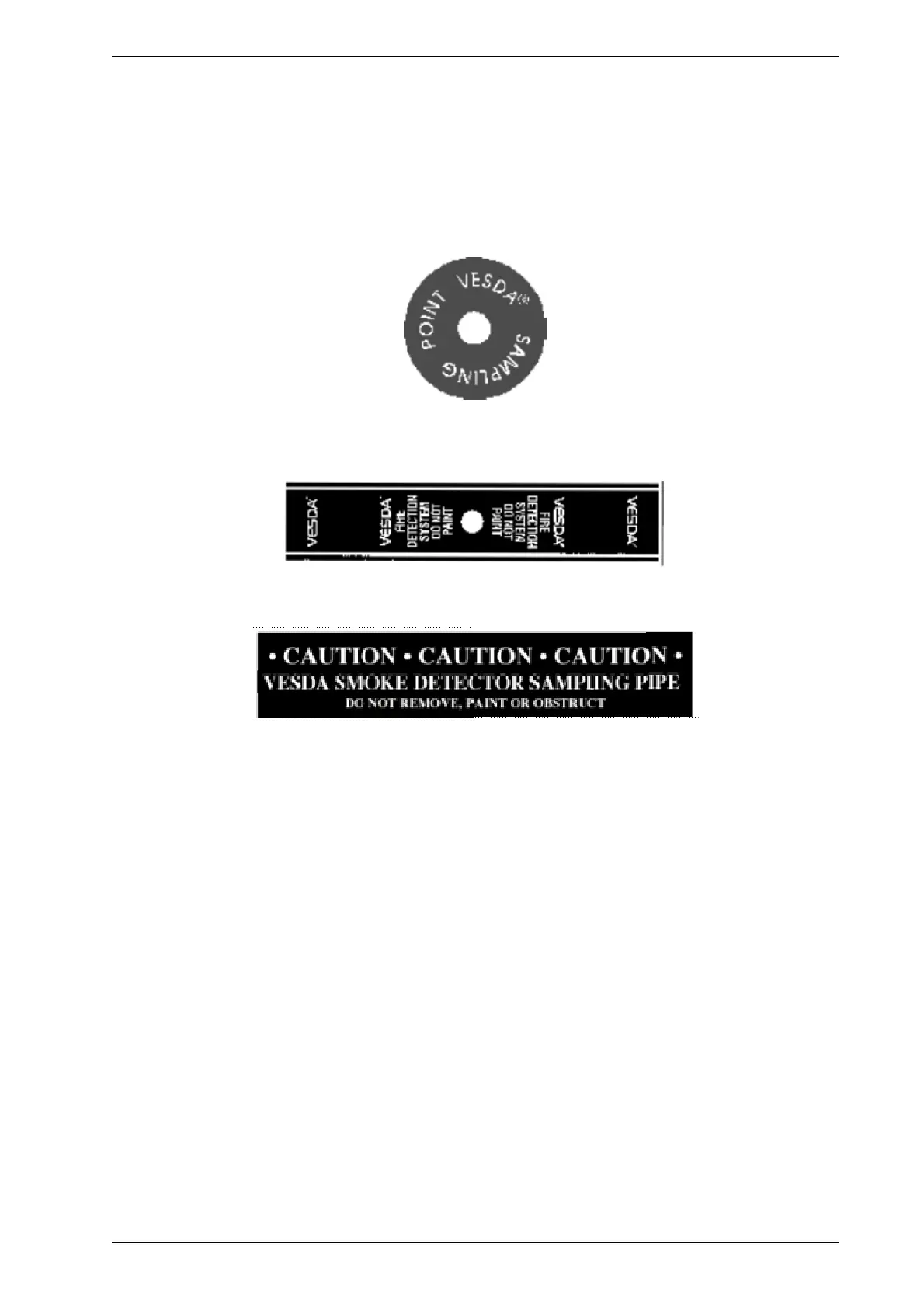

Sampling point labels – There are two labels to identify sampling holes:
Miniature sampling point label
These are round labels with a hole in the center to fit around the miniature sampling points
Sampling point decal
This decal is wrapped around a pipe on the sampling hole. The decal has a hole in the center. The hole in the
decal must be aligned to the sampling hole drilled into the pipe.
Pipe label
This label identifies the pipe as being a smoke detector pipe and warns against tampering with it.
