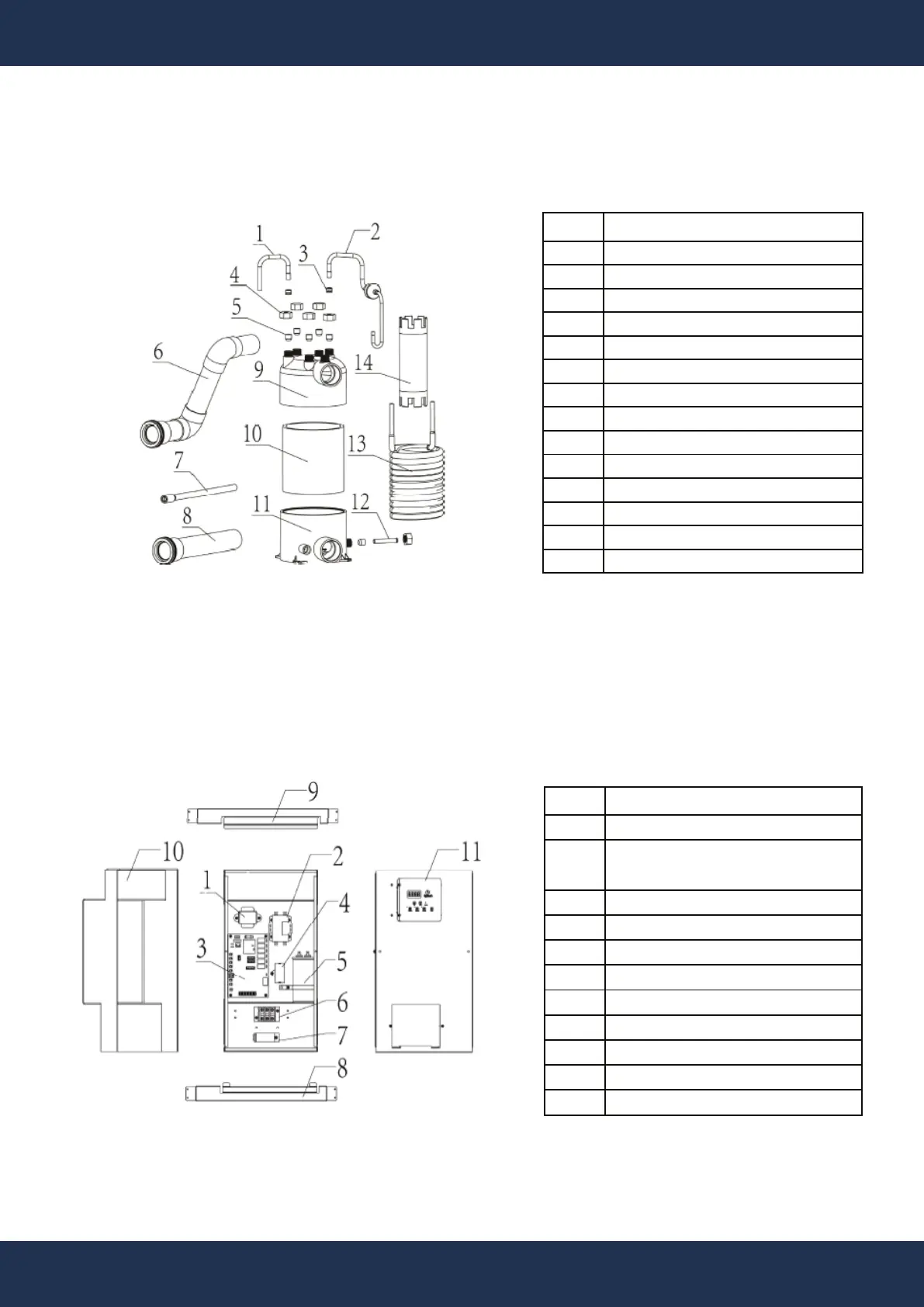

REPLACEMENT PARTS
17
SKU: 75210 / 75211 / 75212
TITANIUM HEAT EXCHANGER COMPONENT
ITEM DESCRIPTION
1 COPPER CONNECTION PIPE
2 COPPER FILTER PIPE
3 LOCK RING
4 PLASTIC SCREW NUT
5 SEAL RING
6 WATER OUTLET
7 DRAIN OUTLET
8 WATER INLET
9 200MM TOP CAP
10 200MM PVC PIPE
11 200MM BOTTOM CAP
12 METAL SLEEVE
13 TITANIUM PIPE
14 INTERMEDIUM TUBE
SKU: 75210 / 75211 / 75212
ELECTRICAL BOX COMPONENT
ITEM
DESCRIPTION
1
TRANSFORMER
2
RELAY (32H) OR
CONTACTOR( 53H)
3
MAIN CONTROL BOARD
4
FAN CAPACITOR
5
COMPRESSOR CAPACITOR
6
TERMINAL STRIP
7
WIRE CLAMP
8
UNDER FIXED PLATE
9
UPPER FIXED PLATE
10
SPONGE LAYER
11
WIRE CONTROLLER PANEL
