Xylem LOWARA e-SVE - Example: Ramp Settings

en – Original instructions
44
Table 17: Description
Gray area
 Missing input Voltage detection threshold
Speed [RPM]
 Actual Speed related to analog 0-10V input Voltage value (see par. 5.4, table 13 contacts 7 and
8)
Max
 P26 (Max RPM set)
Min
 P27 (Min RPM set)
Setpoint
 Example of Actual Speed related to a specific Vset Voltage value
Sby
 Input Voltage at which the motor goes in Stand by
Vin [V]
 Input Voltage value to control the pump in ACT mode
Different thresholds are managed by the pump, from Non-detection to Max speed.)
For further information about ACT control mode and parameters adjustment, see par. 7.5.3.
9.2 Example: Ramp Settings
Graph

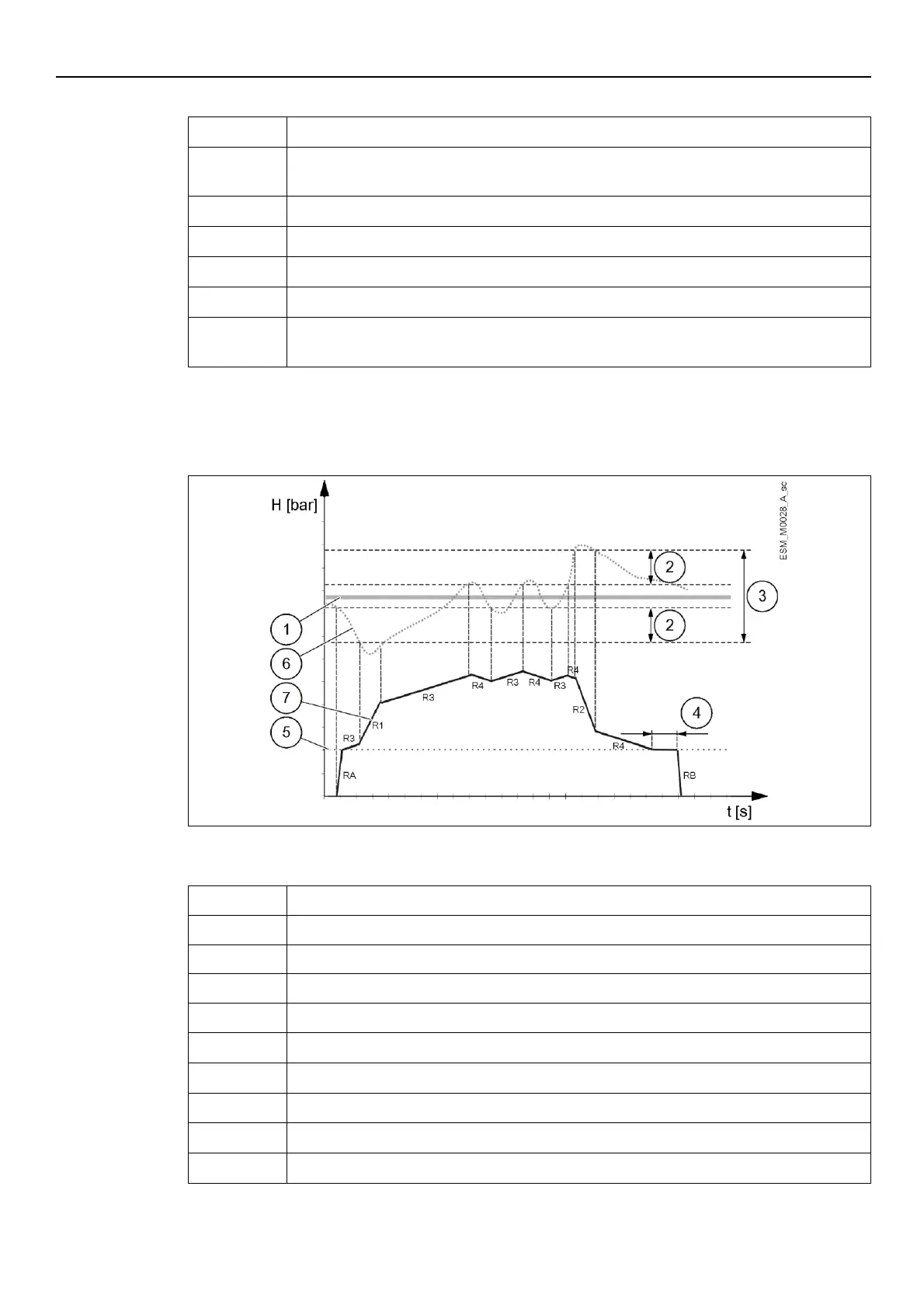

Figure 19: Ramp settings
Table 18: Description
1
P01 (Required Value)
2
P37 (Hysteresys) in % of P36 (Window)
3
P36 (Window) in % of P01 (Required Value)
4
P35 (Smin Time)
5
P27 (Min RPM set)
6
 Actual Head
7
 Actual Speed
RA
 P32 (Ramp Speed Min Acceleration)
RB
 P33 (Ramp Speed Min Deceleration)
R1
 P28 (Ramp 1) - speed ramp fast increase
