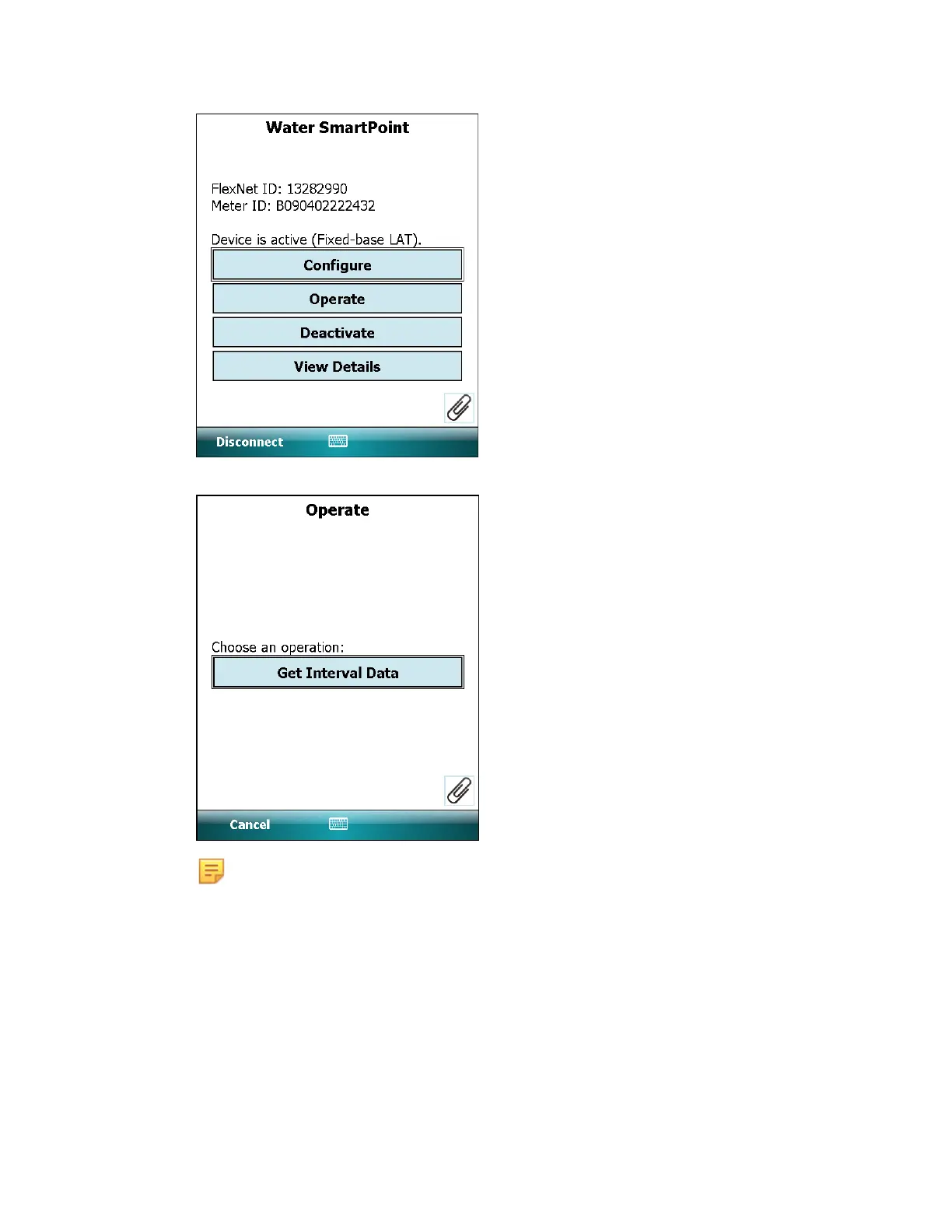

2. From the Operate screen, select Get Interval Data.
Note: For dual port SmartPoint modules, the Get Interval Data screen will
display port options. Select the port for which you want to retrieve interval
data.
3. When prompted, enter the number range of interval data to retrieve and select
Next.
During the interval data retrieval process, FieldLogic Tools automatically creates an
interval data file (.ivd) that is stored on the field device in the \My Documents
\Sensus FieldLogic directory. However, the interval data file cannot be viewed on
the field device.
After the interval data is retrieved, a confirmation displays.
4. Select OK to return to the Product Summary screen.
6 Two-way SmartPoint modules | 36
