WQG-10029-01
Output Requirements
Proportional Output: 4-20
mA, 500 ohms maximum
impedance.
Option A: Dual Analog
Outputs. Specifies a dual 4-20
mA output signal in addition
to the standard 4-20 mA signal
supplied. The option A signals
may be calibrated to different
flow parameters than the
standard 4-20 mA signal. These
signals also operate through
and impedance of 0 to 500
ohms.
Option B, L: SPDT, rated 5
amps, resistive 24 VDC or
3 amps resistive, 117 VAC.
Duration approximately 40
msec.
Options C1, D: SPST, mercury-
wetted bounce free rated 1
amp 24 VDC or 0.1 amp at 117
VAC. All resistive loads.
Option C1 (SS): 50 mA at 24
VDC.

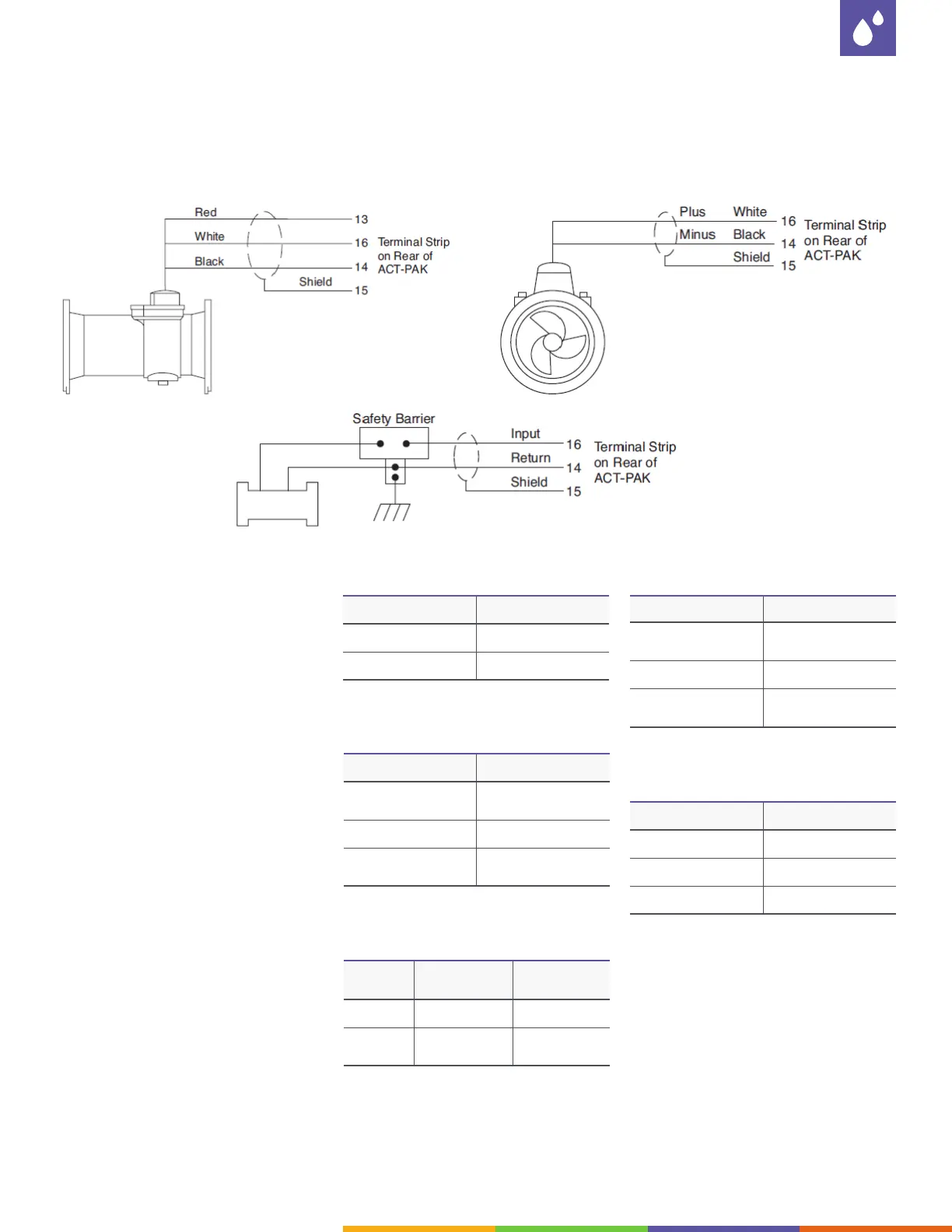

Typical Series 1100 Act-Pak Wiring Connection Diagrams
AC Power Inputs
Terminal Number Function
3 Earth Ground
2 117 VAC
1 117 VAC
Proportional Output
Terminal Number Function
5 Positive
6 Negative
Option B
Terminal Number Function
10 Normally Closed
Contact
11 Common
12 Normally Open
Contact
Option C1, C1 (SS)
Terminal
Number
Function
Relay
Function SS
20 C1 Common C1 Collector
21 C1 Open
Contact
C1 Emmitter
(common)
Option L
Terminal Number Function
22 Normally Closed
Contact
23 Common
24 Normally Open
Contact
Act-Pak® Electronic Instrumentation
Models 1100D and 1100DN Quick Guide
Propeller Meters with E-ROFI
Gas Meters with Slot Sensors
Water Meters with High Speed Pickup
or Hall Effect Transmitter
