Alarm Code Description Comment
ALr 006 Negative flow alarm Appears if the flow is against the main direction of flow during a pre-programmed period.
ALr 007 Leakage alarm Appears if the flow rate has not fallen below the programmed threshold value during the
programmed period.
ALr 008 Pipe burst alarm Appears if the flow rate has exceeded the programmed threshold value during the pro-
grammed period.
ALr 009 Low pressure alarm Appears if the pressure has fallen below the programmed threshold value during the
programmed period.
ALr 010 High pressure alarm Appears if the pressure has exceeded the programmed threshold value during the pro-
grammed period.
ALr 011 Low temperature alarm Appears if the temperature has fallen below the programmed threshold value during the
programmed period.
ALr 012 High temperature alarm Appears if the temperature has exceeded the programmed threshold value during the
programmed period.
Alarms remain in the display until either the programmed display duration is over or a reset command is issued by radio.
9.4. Testing mode
The Cordonel can be set to testing mode for testing purposes in a calibration laboratory. The testing mode switches the display to a 1000 times
higher resolution in order to achieve an optimal testing time. The testing mode can be switched on and off by radio command. The testing mode
is terminated automatically after 72 hours at the latest. The time of the automatic termination of the testing mode can be set using the Diavaso
config app.
Switching to testing mode has no effect on the previously accumulated meter reading. The volume metered in testing mode is added to the cu-
mulative meter reading. After exiting testing mode, the sum of the previously accumulated volume and the volume accumulated during testing
mode is displayed.

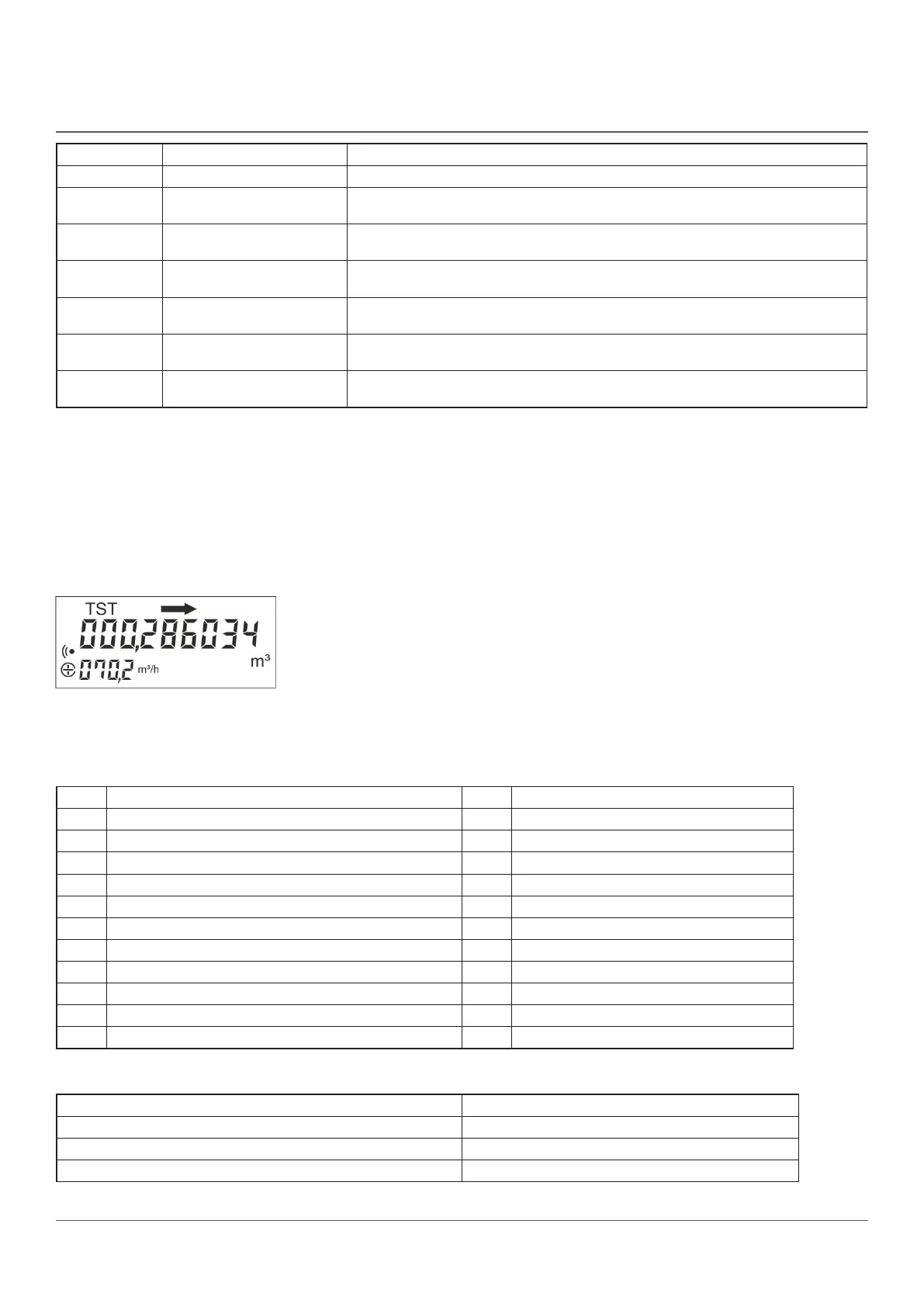

Fig. 5 Display in testing mode
10. Data logger
The Cordonel has two integrated data loggers, which can be parameterised and read out by radio. The first logger records data periodically, while
the second logger records data for a defined key date. The following data can be saved:
1 Alarm status 13 Absolute positive volume
2 Volume (net) 14 Minimum pressure
3 Absolute reverse volume 15 Minimum pressure period
4 Maximum flow rate * 16 Maximum pressure
5 Maximum flow rate period 17 Maximum pressure period
6 Peak flow rate ** 18 Minimum temperature
7 Peak flow rate period 19 Minimum temperature period
8 Average flow rate 20 Maximum temperature
9 Pipe burst alarm 21 Maximum temperature period
10 Pipe burst alarm period 22 Last measured pressure
11 Minimum flow rate 23 Last measured temperature
12 Minimum flow rate period 24 Extended alarm status (temp. and pressure)
* ) The maximum flow rate is an averaged value depending on the logger period:
Logger period Average period
1 minute 1 minute
2 minutes 1 minute
3 minutes 1 minute
