Yaesu FT-7900R/E - Exploded View & Miscellaneous Parts

B-1FT-7900R/E Technical Supplement

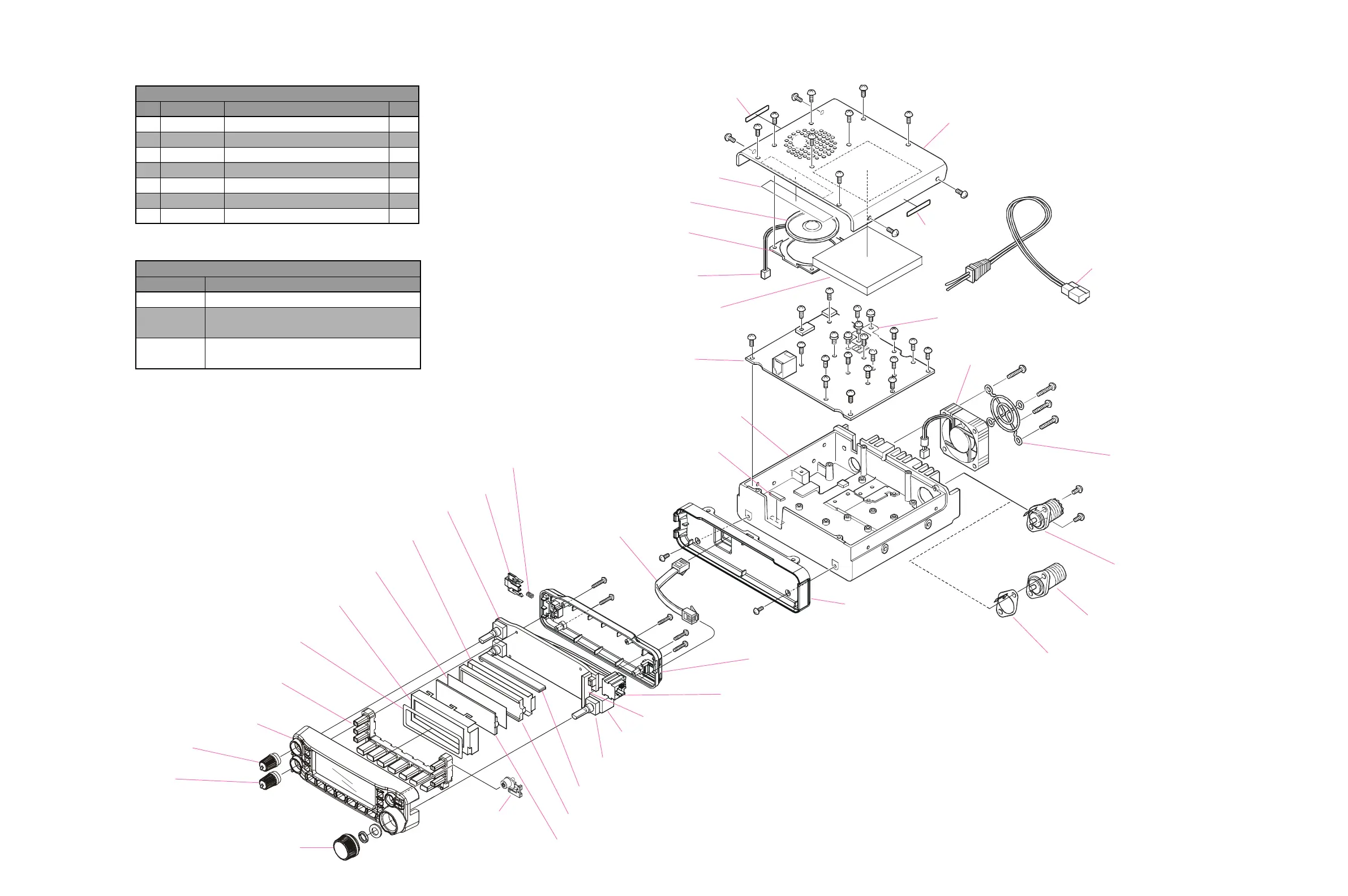

Exploded View & Miscellaneous Parts
M2090034A
FAN
P1090984
CONNECTOR (USA)
RA0552200
LCD SPACER
RA0540800
LCD HOLDER
G6090155
LCD
RA1110800
RUBBER KNOB
RA0540700
LIGHT GUIDE
RA0551900
REFLECTOR SHEET
RA0540900
INTER CONNECTOR
RA1111300
FRONT PANEL ASSY
(W/ WINDOW, DOUBLE FACE TAPE)
RA1118000
KNOB
RA1121500
ENCODER KNOB
RA1110900
KNOB
Q9000816
ROTARY ENCODER (W/ HEX NUT*, WASHER*)
RA0551800
DIFFUSER SHEET
CH UNIT
PANEL UNIT
RA1118000
KNOB
S5000288
FAN GUARD
M4090207
SPEAKER
T9206438A
WIRE ASSY
R0150630
HOLDER
RA02132A0
HIMERON TAPE
RA0438700
RUBBER
RA02668BA
CHASSIS
RA111070A
REAR PANEL ASSY
(W/ COIL SPRING, RELEASE KNOB)
RA0540400
RELEASE KNOB
RA0022900
COIL SPRING
T9101536
CT CABLE
RA053980A
SUB PANEL
CS1804001
CASE (W/ NYLON NET)
RA0322600
RUBBER SHEET
T9207482 (USA, EXP, AUS)
T9207483 (CE)
WIRE ASSY
RA0415200 (x2 pcs)
GROUND PLATE
P1090547
CONNECTOR (CE, EXP, AUS)
S5000236
WASHER (CE, EXP, AUS)
P1091107
CONNECTOR
T9207057
WIRE ASSY














































*
*
Non-designated parts are available only
as part of a designated assembly.
MAIN UNIT
SUPPLIED ACCESSORIES
VXSTD P/N DESCRIPTION
AAA43X001 MIC MH-48A6J
Q0000081 FUSE 15A (x2 pcs, USA, EXP, AUS Version)
Q0000172 FUSE 15A (x2 pcs, CE Version)
T9021715 DC CABLE (USA, EXP, AUS Version)
T9026115 DC CABLE (CE Version)
R8139500A
LABEL
R8139500A
LABEL
SCREW LIST
No. VXSTD P/N DESCRIPTION QTY.
 U31208007 OVAL HEAD SCREW M2.6X8B 8
 U44308002 TAPTITE SCREW M3X8NI 17
 U03310002 SEMS SCREW ASM3X10NI 4
 U20308002 BINDING HEAD SCREW M3X8NI 2
 U25320007 TAPTITE SCREW M3X20B 4
 U23116007 TAPTITE SCREW M2X16B 5
 U31206007 OVAL HEAD SCREW M2.6X6B 6
