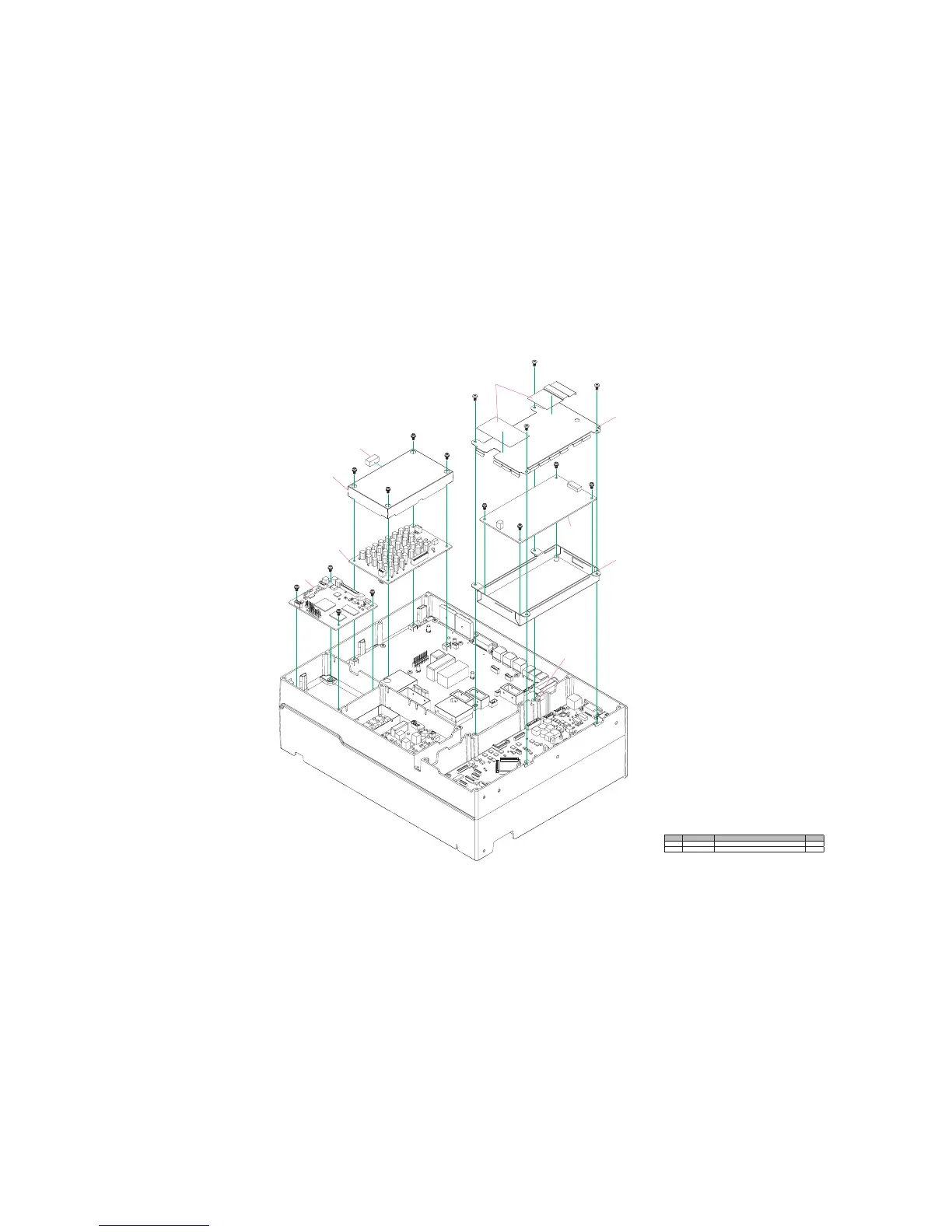

EXPLODED VIEW-5
FT
DX
3000 Technical Supplement
Exploded View
REF. YAESU P/N Description Qty.
①
U03306002 PAN HEAD SCREW ASM3X6NI 12
②
U24306001 BIND HEAD TAPTITE-B M3X6 4
Non-designated parts are available only as psrt of a designated assembly.
②
②
②
②
①
①
①
①
①
①
①
①
①
①
①
①
FFT-UNIT
RA0423200
LOCK PLATE
RA1151700
SHIELD CASE COVER
RA0879700
GASKET(L=18)
RA0470800
ELEC. COND TAPE (A)
RA0961500
SHIELD CASE COVER
DSP-UNIT
BPF-UNIT
RA0961400
SHIELD CASE(DSP)
