Yaesu FTDX3000 User Manual

EXPLODED VIEW-6
FT
DX
3000 Technical Supplement

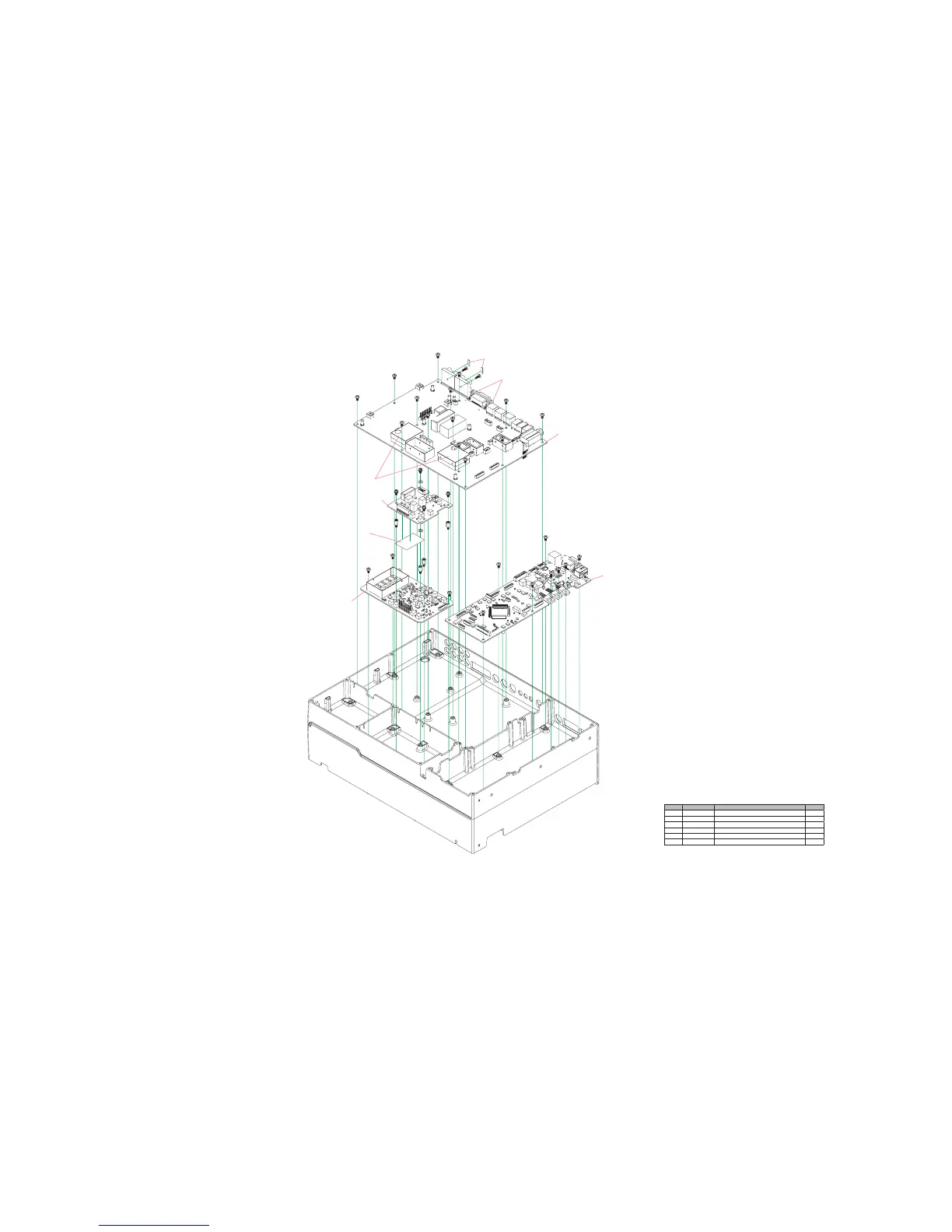

Exploded View
REF. YAESU P/N Description Qty.
①
U24306001 BIND HEAD TAPTITE-B M3X6 22
②
U24210001 BIND HEAD TAPTITE-B 2.6X10(3) 2
③
S5000284 SPACER QBSB308 4
④
U24308001 BIND HEAD TAPTITE-B M3X8 3
⑤
U03306002 PAN HEAD SCREW ASM3X6NI 4
⑥
RA085830A INSULATOR WASHER 2
Non-designated parts are available only as psrt of a designated assembly.
②
②
①
①
①
①
①
①
①
①
①
①
①
①
①
①
①
③
③
⑤
⑤
⑥
⑥
⑤
⑤
③
③
LOCAL-UNIT
RA0895500
PORON SHEET (0310T1)
S5000332
SPACER 181-031
RA1152400
SHIELD CASE COVER
CNTL-UNIT
MAIN-UNIT
SCP-UNIT
①
①
①
④
④
④
①
①
①
①
S5000253
SHEET R4N(05)-40*26T08S

Yaesu FTDX3000 Specifications

General

Antenna Impedance	50 Ohms
Type	HF/50 MHz Transceiver
Supply Voltage	13.8 V DC ±15%
Antenna Connector	SO-239
IF DSP	Yes
Modes	AM, FM, RTTY
Receiver Type	Triple Conversion Superheterodyne
Display	4.3-inch TFT Full-Color
