Yakima LockNLoad Platform - Final Installation Checks and Features; Final Torque Tightening; Tower Locking and Installation Test; Wind Deflector Removal and Reinstallation

Instruction #1035998F - Page 7 of 14
4
3
TEST THE INSTALLATION.
Test the installation by pushing and pulling
in all directions. The Platform should not
slide or move on crossbars or mounting
blocks. Retighten the mounting clamps or
mounting kit hardware if necessary.
NOTE: The Wind Delector can be removed
to suit certain anchors/accessories to be
used with the front extrusion. This is done
by simply peeling the part from the slot,
starting at one end and working across
the length of the delector.
Installation is the reverse and should be
conirmed by hearing an audible ‘CLICK’
when the delector is fully installed.
OPTIONAL: WIND
DEFLECTOR
REMOVAL
TIMBERLINE
TOWERS:
LOCK YOUR TOWERS.

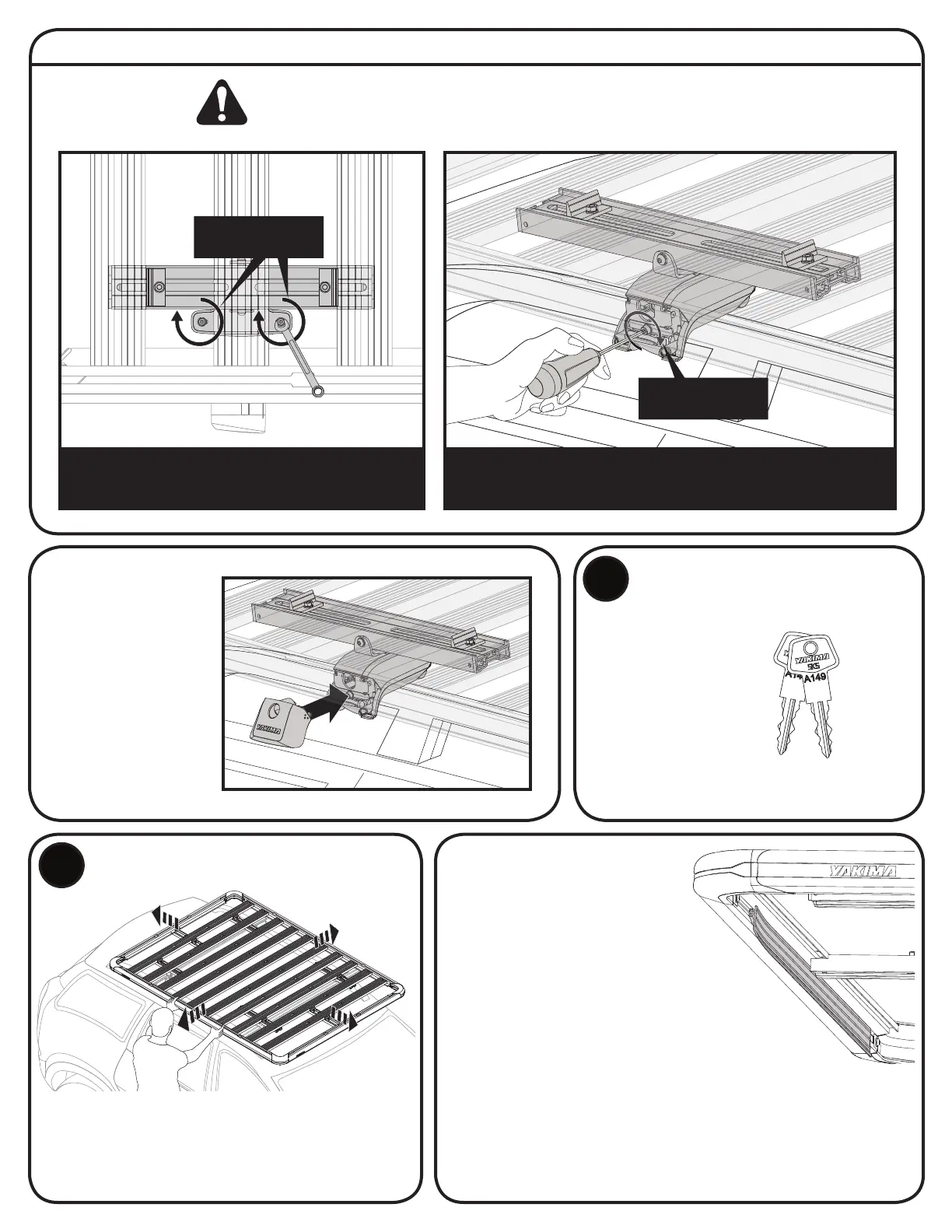

FINAL TIGHTENING • SERRAGE FINAL • AJUSTE FINAL
Now, fully tighten each Crossbar Clamp or TimberLine tower
(SkyLine towers are ixed so no tightening is required).
If you have
purchased and
installed lock
cores for your
towers use your
SKS Key to lock
the towers.
Install the
covers onto your
TimberLine towers.
CROSSBAR CLAMPS
PINCES CROSSBAR CLAMP PIEDS TIMBERLINE
ABRAZADERAS PARA BARRA TRANSVERSAL TORRES TIMBERLINE
TIMBERLINE TOWERS
3.5 Nm
2.5 Nm
