Yale Assure Lock 2 Plus User Manual

5
P/N YRD450-N-MNL-0039 Rev A
Tear Along the Dotted Line

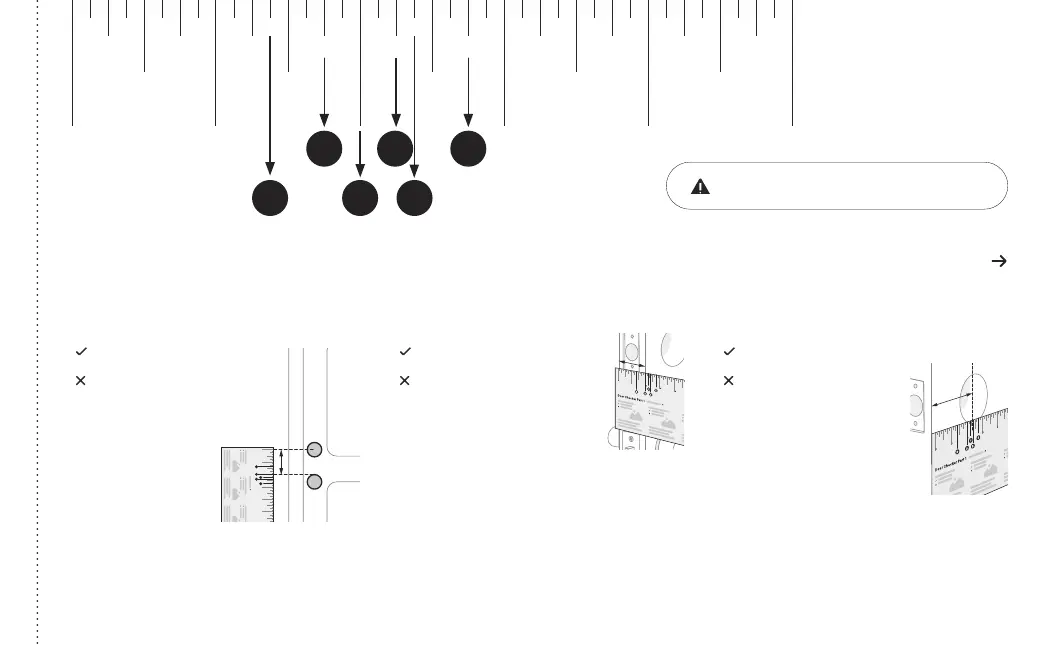

Door Checker Part 1
Measure Clearance Measure Door Thickness Measure Backset
A. 2” minimum clearance between top
of the door knob and center of deadbolt
hole.
B. 13/8” door thickness; use teal
(shortest) screws.
C. 13/8” - 13/4” door thickness;
use black (medium) screws.
D. 13/4” - 21/4” door thickness;
use silver (longest) screws.
E. 23/8” backset, use out of box latch
setting.
F. 23/4” backset, adjust latch setting
(Step 2, point 1 of this manual).
Greater than A B, C or D Equals E or F
Less than A
Less than B or
greater than D
Doesn’t equal E or F
(Your door is not a match)
(Your door is not a match)
(Your door is not a match)
10 2 3 4 5
6
Door Checker Part 1
v
B A D
C E
v
v
See Reverse for Part 2
1/8 1/8 1/8 1/8 1/83/8 3/8 3/8 3/8 3/85/8 5/8 5/8 5/8 5/87/8 7/8 7/8 7/8 7/8
1/4 1/4 1/4 1/4 1/4
1/2
10 2 3 4 5
1/2 1/2 1/2 1/2
3/4 3/4 3/4 3/4 3/4
B A E
DC F
If printed from electronic file, Measure
ruler to check scale. Set print scale to 1:1.

Yale Assure Lock 2 Plus Specifications

General

Lock Type	Deadbolt
Power Source	4 AA Batteries
Finish Options	Satin Nickel, Oil Rubbed Bronze, Black Suede
Battery Life	Up to 1 year
Door Thickness	1-3/8" to 2-1/4"
Bump Key Proof	Yes
Connectivity	Bluetooth, Wi-Fi
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Keypad	Yes, touchscreen
Smartphone App	Yale Access App
Weather Resistance	Yes
Backset	2-3/8" or 2-3/4"
Auto-Lock	Yes
Backup Power	9V Battery Terminal
User Codes	Up to 25 (unlimited with app)
