Yale Assure Lock 2 Plus User Manual

8
P/N YRD450-N-MNL-0039 Rev A

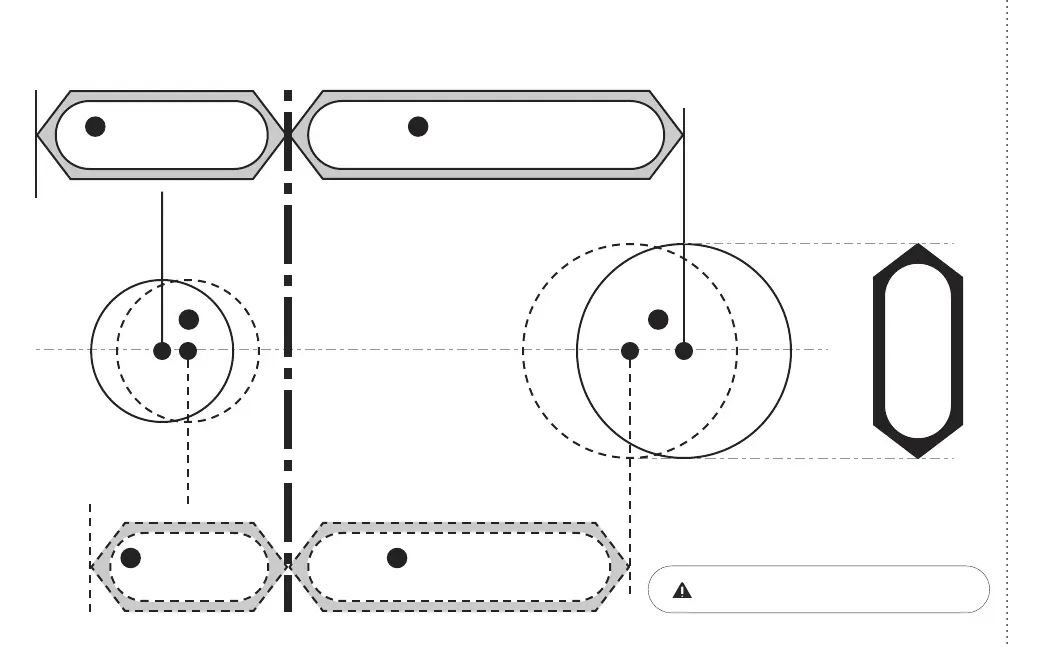

Marking Template for 11/2” (38mm) Face Bore
Center of
1” (25mm)
Edge Bore
Center of
1” (25mm)
Edge Bore
Centerline
Center of
11/2” (38mm)
Face Bore
Center of
11/2” (38mm)
Face Bore
11/2”
I G
13/8” (35mm)
Door Thickness
B
23/8” (60mm)
Backset
E
13/4” (44.5mm)
Door Thickness
C
23/4” (70mm)
Backset
F
Tear Along the Dotted Line
If printed from electronic file, Measure
ruler to check scale. Set print scale to 1:1.

Yale Assure Lock 2 Plus Specifications

General

Lock Type	Deadbolt
Power Source	4 AA Batteries
Finish Options	Satin Nickel, Oil Rubbed Bronze, Black Suede
Battery Life	Up to 1 year
Door Thickness	1-3/8" to 2-1/4"
Bump Key Proof	Yes
Connectivity	Bluetooth, Wi-Fi
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Keypad	Yes, touchscreen
Smartphone App	Yale Access App
Weather Resistance	Yes
Backset	2-3/8" or 2-3/4"
Auto-Lock	Yes
Backup Power	9V Battery Terminal
User Codes	Up to 25 (unlimited with app)
