Yale Assure Lock SL YRD256 User Manual

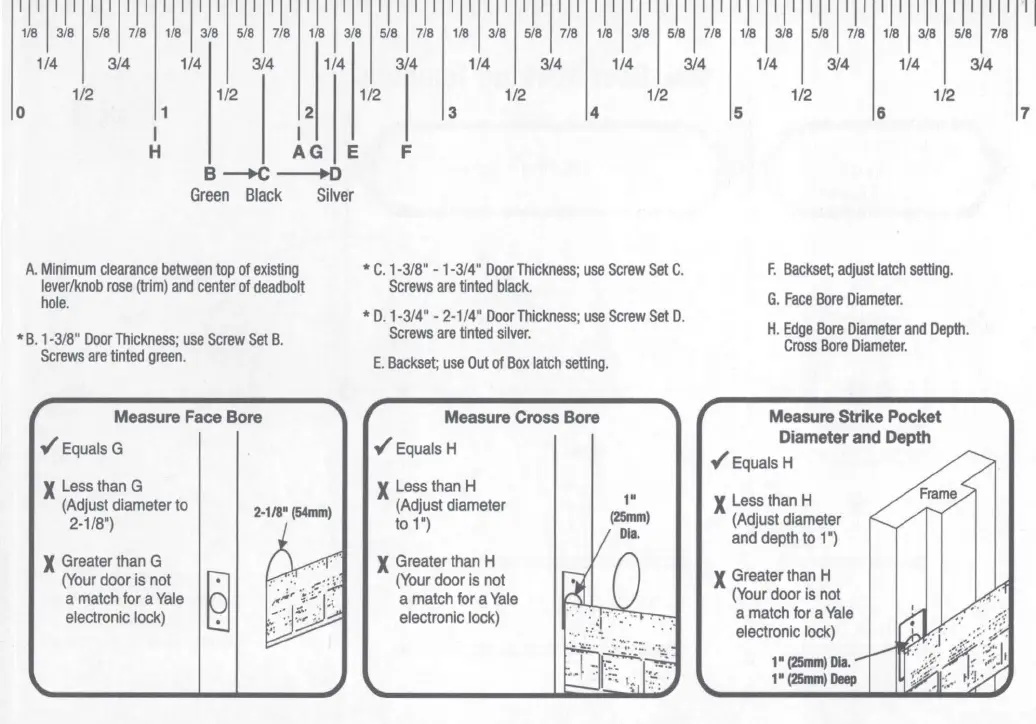

I 111111 I 111111
1/8 3/8 5/8 7/8
I 111111 I 111111
1/8 3/8 5/8 7/8
I 111111 I 111111
1/8 3/8 5/8 7/8
I 111111 I 111111
1/8 3/8 5/8 7/8
I 111111 I 111111
1/8 3/8 5/8 7/8
I 111111 I 111111
1/8 3/8 5/8 7/8
I 11111. I I 111111 '1
1/8 3/8 5/8 7/8
1/4 3/4
1/4 3/4 1/4 3/4 1/4 3/4 1/4 3/4
1/2 1/2
0 1 2
I
I
H AG E
B ---+C ----+D
Green Black Silver
A. Minimum clearance between top of existing
lever/knob rose (trim) and center of deadbolt
hole.
* B. 1-3/8" Door Thickness; use Screw Set B.
Screws are tinted green.
Measure Face Bore
✓ EqualsG
X Less than G
(Adjust diameter to
2-1/8")
X Greater than G
(Your door is not
a match for a Yale
electronic lock)
2-1/8" (54mm)
1/2
1/2
1/2
3 4
F
* C. 1-3/8" - 1-3/4" Door Thickness; use Screw Set C.
Screws are tinted black.
* D. 1-3/4" - 2-1/4" Door Thickness; use Screw Set D.
Screws are tinted silver.
E. Backset; use Out of Box latch setting.
Measure Cross Bore
✓ EqualsH
X Less than H
(Adjust diameter
to 1 ")
X Greater than H
(Your door is not
a match for a Yale
electronic lock)
1/4 3/4 1/4 3/4
1/2
1/2
5 6
F. Backs et; adjust latch setting.
G. Face Bore Diameter .
H. Edge Bore Diameter and Depth.
Cross Bore Diameter.
Measure Strike Pocket
Diameter and Depth
✓ EqualsH
X Less than H
(Adjust diameter
and depth to 1 ')
X Greater than H
(Your door is not
a match for a Yale
electronic lock)
7

Yale Assure Lock SL YRD256 Specifications

General

Lock Type	Deadbolt
Keyless Entry	Yes
Touchscreen	Yes
Power Source	4 AA batteries
Battery Life	Up to 1 year
Finish Options	Satin Nickel, Oil Rubbed Bronze, Polished Brass
Door Thickness	1-3/8" to 2-1/4"
Backup Key	No
Connectivity	Z-Wave, Zigbee, Bluetooth (with additional module)
Smart Home Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit (with module)
Installation	DIY installation
User Codes	Up to 25 without
Auto-Lock	Yes
Weather Resistance	Yes
Backset	2-3/8" or 2-3/4" adjustable
