Yale Assure Lock SL YRD256 User Manual

Copyright © Yale Security Inc., an ASSA ABLOY Group Company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
3"2"1"0"
75 mm50 mm25 mm
3" 2" 1"
75 mm 50 mm 25 mm
CAUTION: If printed from electronic file, set
print scale to 1:1. Measure ruler to check scale.
C
L
C
L
C
L
C
L
C
L
FOLD OVER DOOR EDGE
1" (25 mm)
Dia.
2
1
/ 8" (54 mm) Dia.
Half Deep Hole
2
1
/ 8" (54 mm) Dia.
Half Deep Hole
For 2
1
/ 4" (57 mm)
Thick Door
2
3
/ 4" (70 mm) Backset
2
3
/ 8" (60 mm) Backset
For 2 " (51 mm)
Thick Door

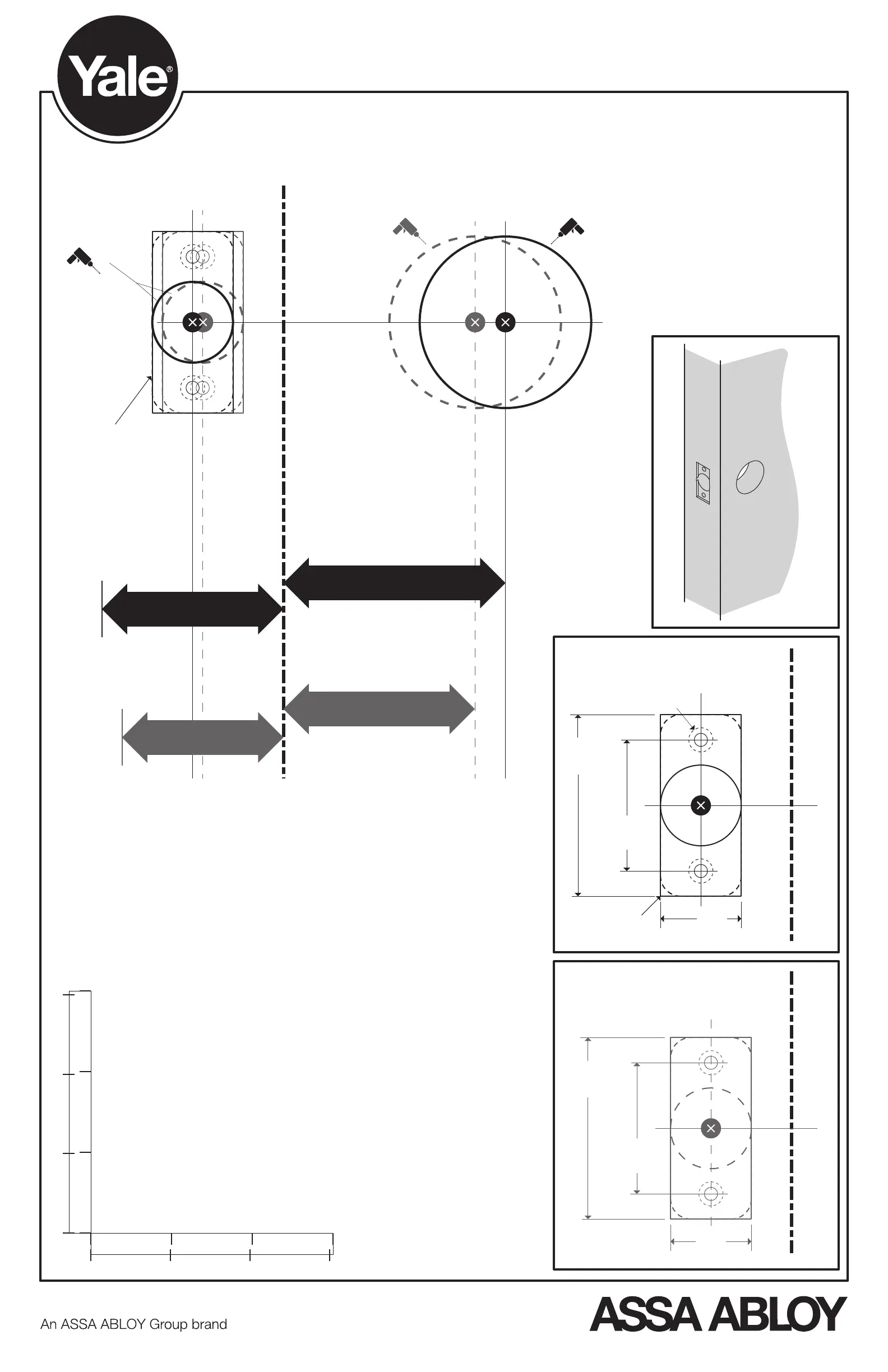

Latch Installation Template
for 2
1
/ 4" (57 mm) Thick Door
FOLD OVER DOOR EDGE
C
L
C
L
2
1
/ 4"
(57 mm)
1
5
/ 8"
(41 mm)
1"
(25 mm)
Radius (Std) or Square
#8-32 Tapped Hole
1
/ 4"
(6.3 mm)
See Latch
Installation
Template
for detail.
Latch Installation Template
for 2" (51 mm) Thick Door
FOLD OVER DOOR EDGE
C
L
C
L
2
1
/ 4"
(57 mm)
1
5
/ 8"
(41 mm)
1"
(25 mm)

Yale Assure Lock SL YRD256 Specifications

General

Lock Type	Deadbolt
Keyless Entry	Yes
Touchscreen	Yes
Power Source	4 AA batteries
Battery Life	Up to 1 year
Finish Options	Satin Nickel, Oil Rubbed Bronze, Polished Brass
Door Thickness	1-3/8" to 2-1/4"
Backup Key	No
Connectivity	Z-Wave, Zigbee, Bluetooth (with additional module)
Smart Home Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit (with module)
Installation	DIY installation
User Codes	Up to 25 without
Auto-Lock	Yes
Weather Resistance	Yes
Backset	2-3/8" or 2-3/4" adjustable
