P/N YRD216-MNL-0002 Rev G
x2
3
Actual Size
*Deadbolt latch position is based
on backset. Choose position
appropriate for your door.
Reference Door Checker
measurements E and F.
default
*2-3/8" Backset
*2-3/4" Backset

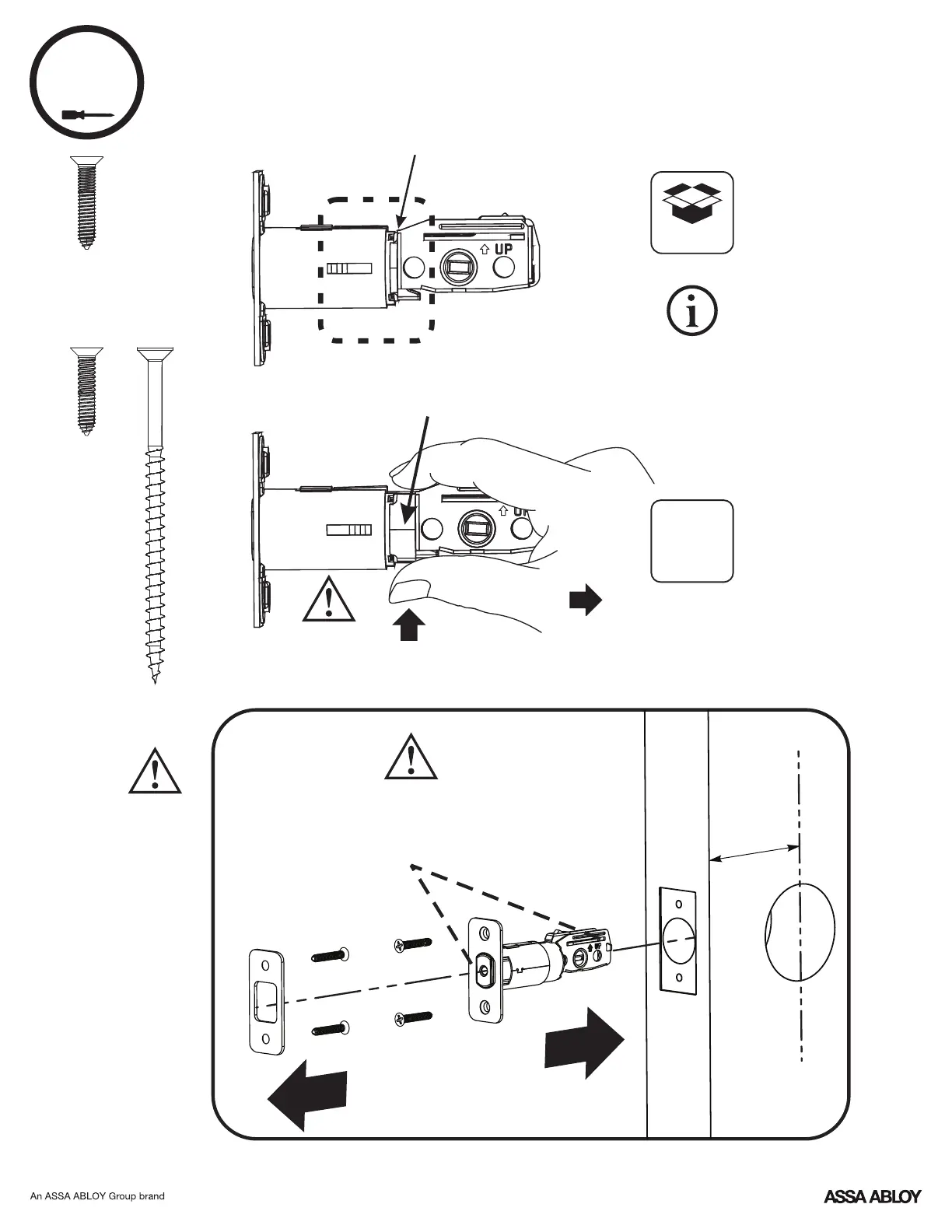

Installing Latch & Strike Plate
Press
Pull
Bolt must be in retracted
(unlocked) position. Note horizontal
orientation of tailpiece slot and UP
orientation of deadbolt latch.
Backset
Actual Size
x2
Choose
standard
strike plate
screws or
security
screws.
Actual Size
O
optional
Bolt must be
in retracted
(unlocked)
position.
x2
5
To Next Page
