Yale MPB040-E User Manual
4
of 1
of 1 rating
54 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
1800
YR
M
1005
Brake
Ass
embl
y
Repair
1.
MDU
HOUSING
2.
A
LLEN-HEAD
SC
REW
3.
W
ASHER
4.
DRIV
E
M
O
TOR
5.
CO
VE
R
6.
FILL
PLUG
7.
ALLE
N-HEAD
SCREW
8.
W
ASHE
R
9.
NUT
10.
SP
ACER
11.
GE
AR
12.
OI
L
SLING
ER
13.
B
ALL
BEARING
14.
O
-RING
15.
B
RAKE
ASSEMB
L
Y
16.
WOODR
UFF
KEY
(GEAR)
17.
WOODR
UFF
KEY
(HUB)
18.
HUB

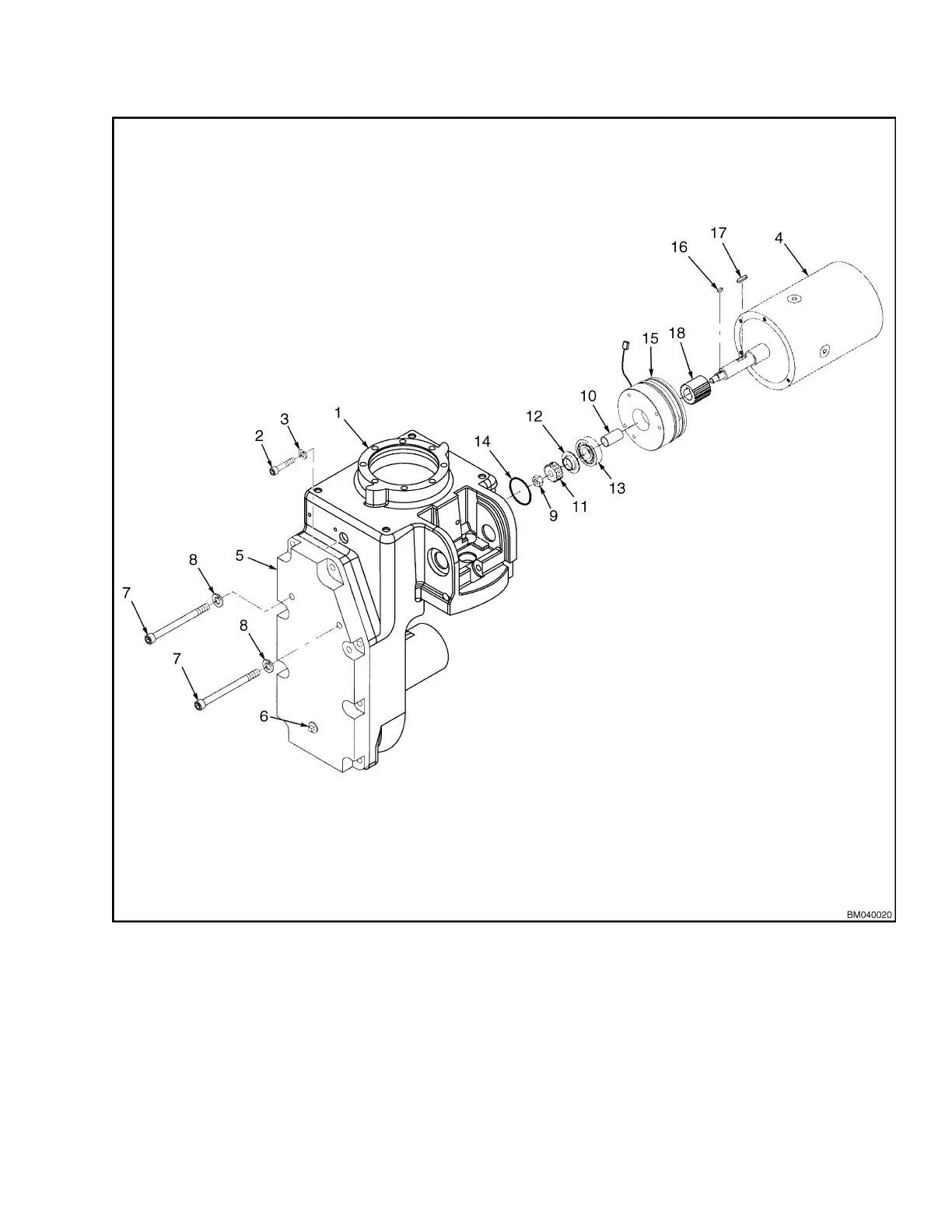

Figure
5.
Bra
ke
As
sembly
5
48
50
Table of Contents
Section 1
3
Table of Contents
3
Description
5
General
5
Frame Repair
6
Features
6
Frame Separation and Assembly
6
Separation
6
Assembly
6
Battery Compartment
7
Battery Compartment Specifications
7
Changing the Battery
7
Label Replacement
8
Remove
8
Battery Spacer Adjustment
8
Install
8
Painting Instructions
10
Load Wheels
10
Remove
10
Install
11
Section 2
17
Description
19
General
19
Special Precautions
19
Master Drive Unit Repair
21
Remove
21
Disassemble
23
Assemble
24
Install
24
Repair
24
Troubleshooting
25
Section 3
31
General
33
Special Precautions
33
Control Handle
34
Control Handle Head
34
Remove
34
Install
35
Discharging the Gas Spring
37
Gas Spring
37
Troubleshooting
38
Section 4
43
Description
45
General
45
Special Precautions
46
Brake Assembly Repair
47
Brake Override
47
Remove
48
Repair
50
Install
51
Troubleshooting
52
