100 YRM 1015 Label Replacement
1. Make sure the surface is dry and free of oil or
grease. DO NOT use solvent on new paint. Clean
the surface of old paint using a cleaning solvent.
2. Remove the paper from the back of the label. DO
NOT touch the adhesive surface.
NOTE: The label cannot be moved after it touches the
surface.
3. Carefully hold the label in the correct position above
the surface. Put the label in the correct position
on the surface. Make sure all air is removed from
under the label and the corners and edges are tight.

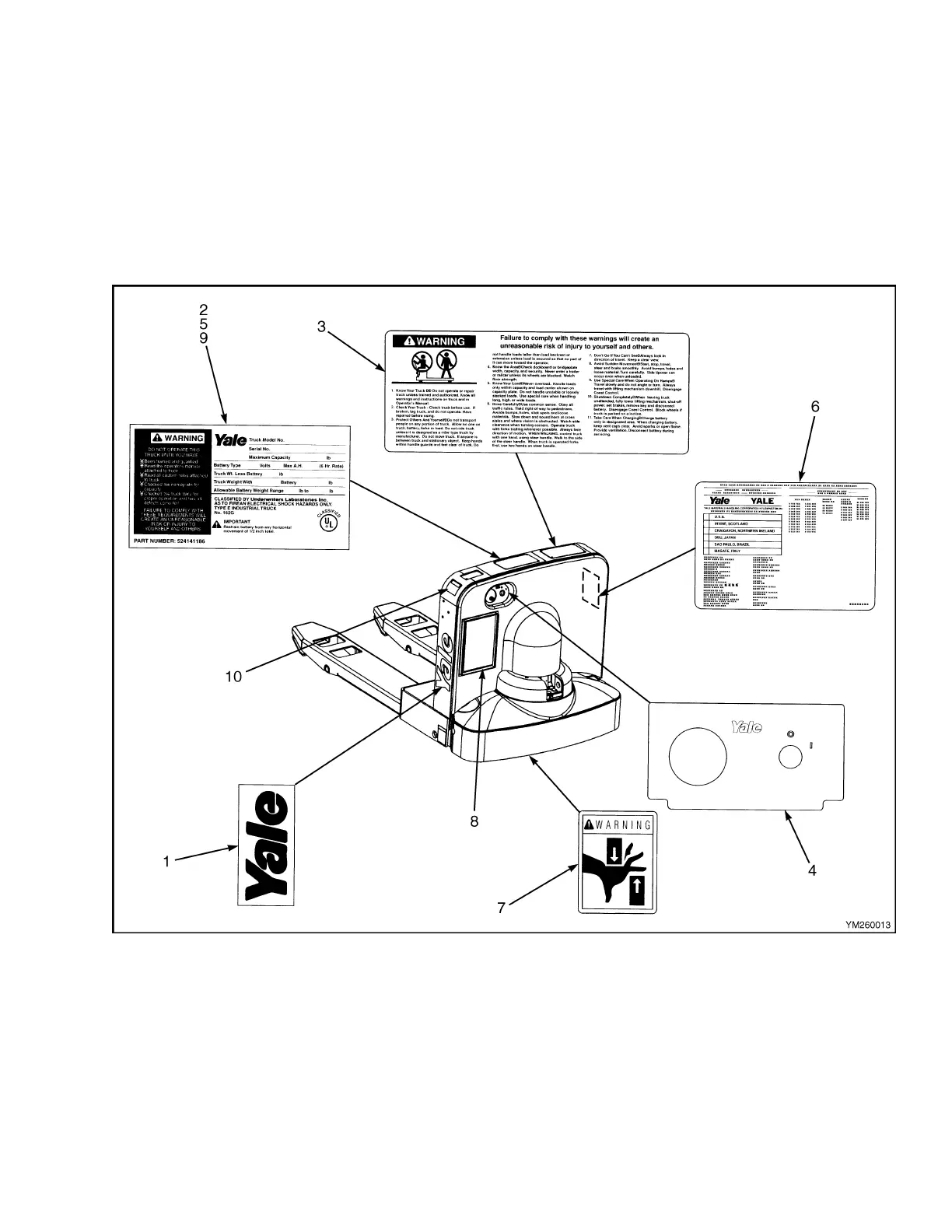

1. LABE
L(YALE)
2. NAMEPLATE
3. LABEL (WARNING)
4. DECAL
5. RIVET
6. LABE
L (PATENTS AND TRADEMARKS)
7. LABEL (PINCH WARNING)
8. OPERATING MANUAL
9. NAMEP
LATE LABEL
10. LABEL (BATTERY DISCHARGE NOTICE)
Figure 3. Label and Decal Location
5
