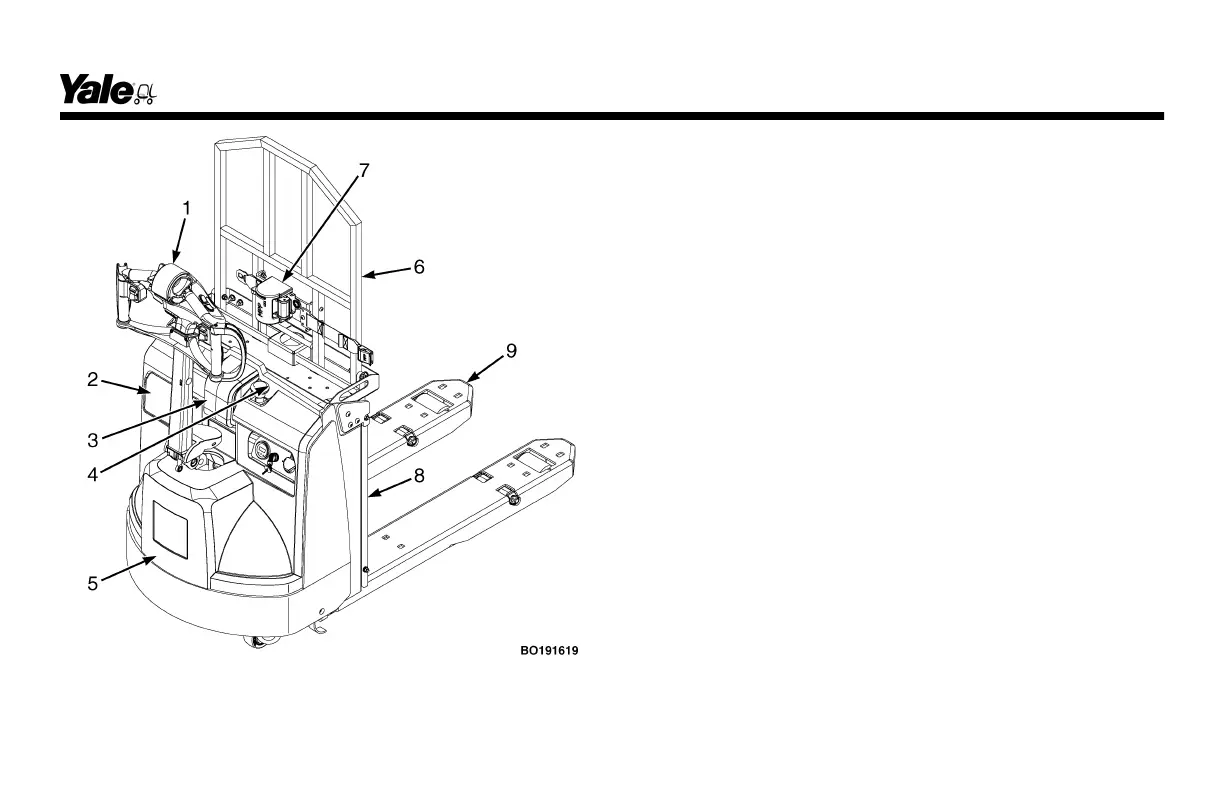

1. DELIVERY HANDLE
2. OPERATING MANUAL
3. CENTER COVER
4. EMERGENCY POWER DISCONNECT
5. DRIVE COMPARTMENT COVER
6. MOVEABLE LOAD BACKREST
7. LOAD RETENTION STRAP
8. BATTERY COMPARTMENT
9. FORK
Figure 2. Retail Delivery Model View Showing Major Components
Model Description
9

Table of Contents

Other manuals for Yale MPB045VG

Preview: Maintenance
Maintenance84 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yale MPB045VG and is the answer not in the manual?

Yale MPB045VG Specifications

General IconGeneral
ModelMPB045VG
CategoryForklifts
Power SourceElectric
Load Capacity4500 lbs
Battery Voltage24V
Battery Capacity375 Ah
