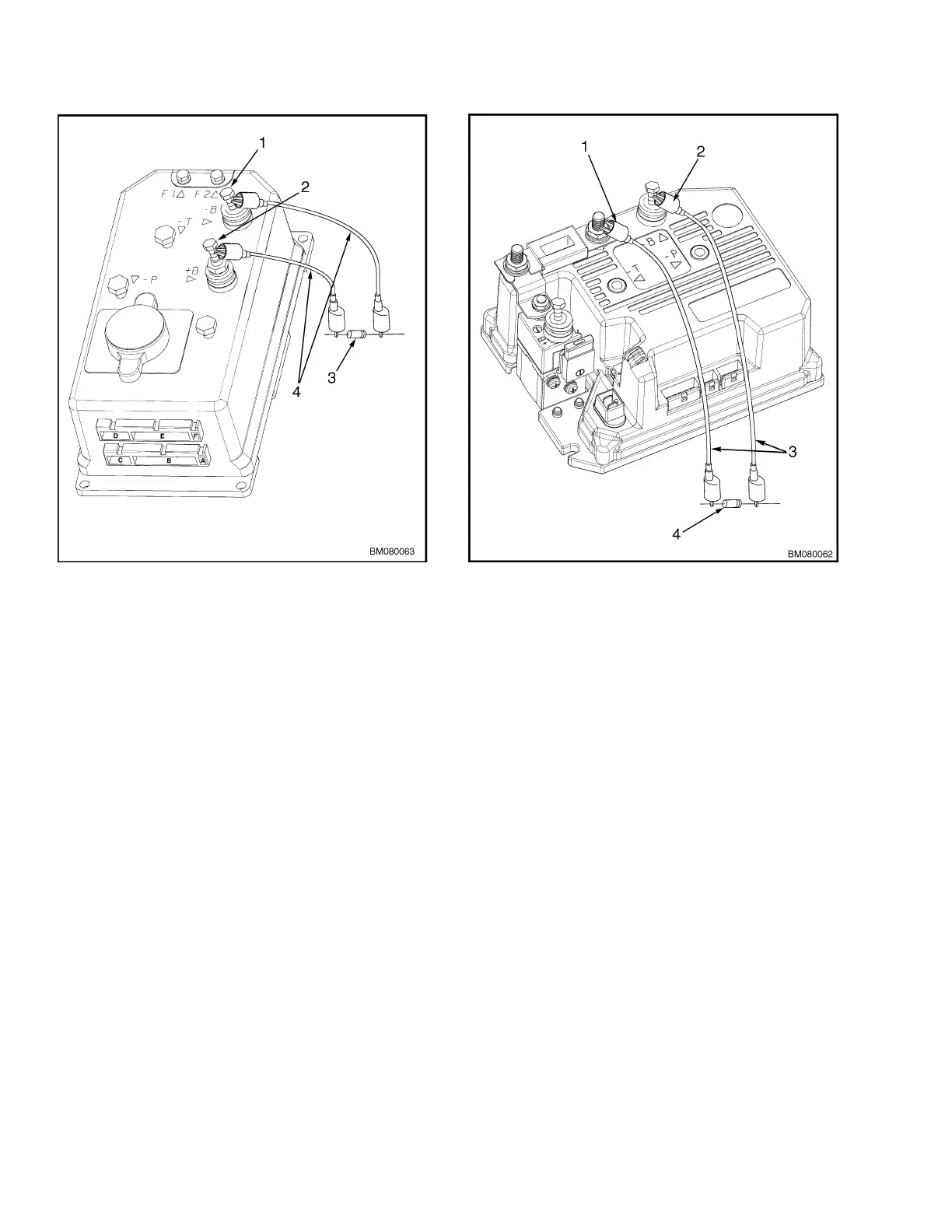

1. NEGATIVE CONNECTION
2. POSITIVE CONNECTION
3. 200-OHM, 2-WATT RESISTOR
4. INSULATED JUMPER WIRES
Figure 3. Discharging the Capacitor (MSW020/025-
E, MPW045/050-E, and MSW025/030-F)
1. POSITIVE CONNECTION
2. NEGATIVE CONNECTION
3. INSULATED JUMPER WIRES
4. 200-OHM, 2-WATT RESISTOR
Figure 4. Discharging the Capacitor (MPB040-E)
Special Precautions 2200 YRM 1007
6
