Yale MSW030-F

1. COVER (LOWER HALF)
2. COVER (UPPER HALF)
3. CONTROL HANDLE CARD ASSEMBLY
4. SHAFT
5. BUSHING
6. BUTTERFLY KNOB (LH)
7. WASHER
8. SCREW
9. SPRING
10. BUTTERFLY KNOB (RH)
11. SWITCH COVER
12. SPRING
13. SWITCH COVER
14. BUTTONS
15. SWITCH - ON/OFF
16. HORN SWITCH COVER
17. LABEL
18. LABEL
19. LABEL
20. SWITCH
21. PROPORTIONAL SWITCH (OPTIONAL)

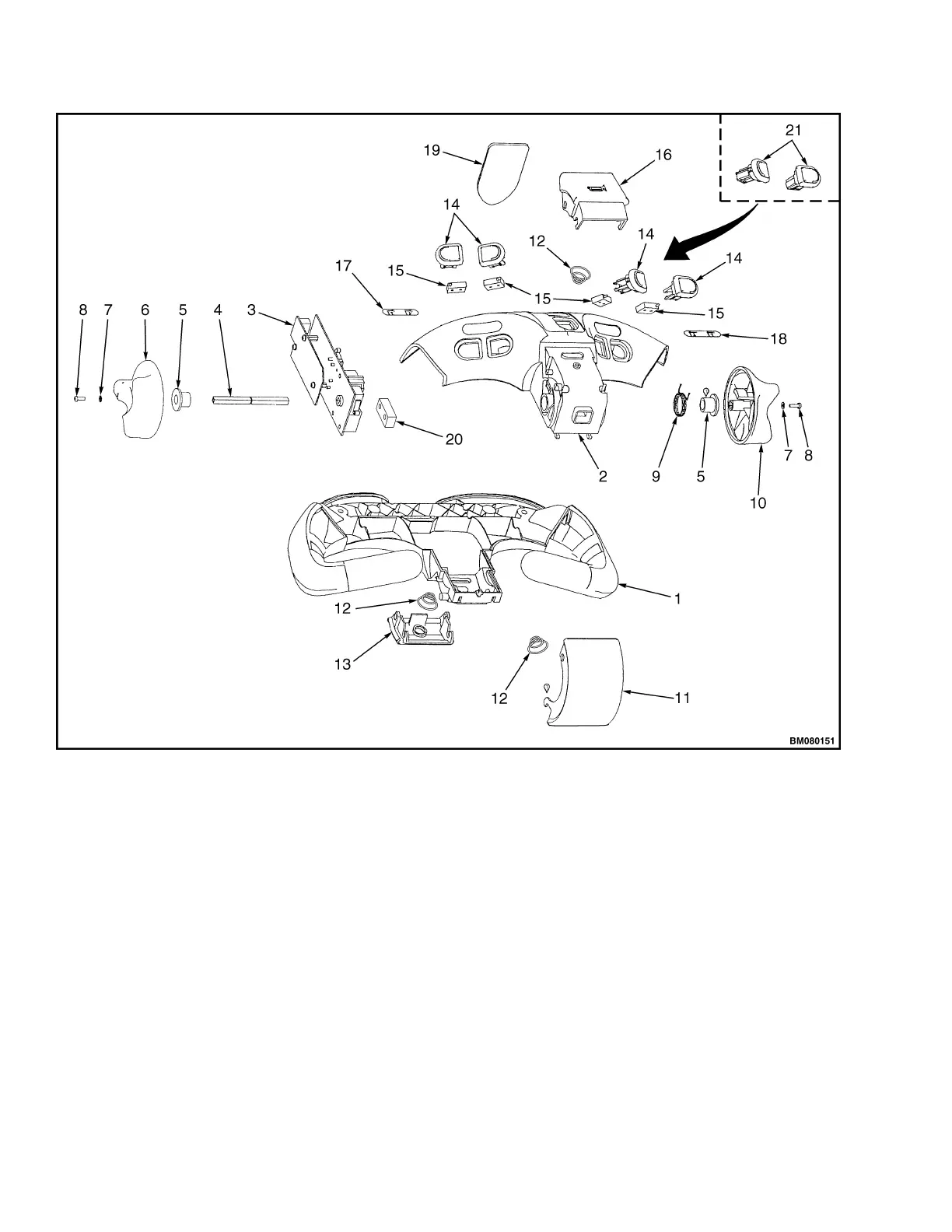

Figure 16. Control Handle
Control Handle 2200 YRM 1007
24
