Table 4. Operator Controls (See Figure 8) (Continued)
Item
No.
Item Function

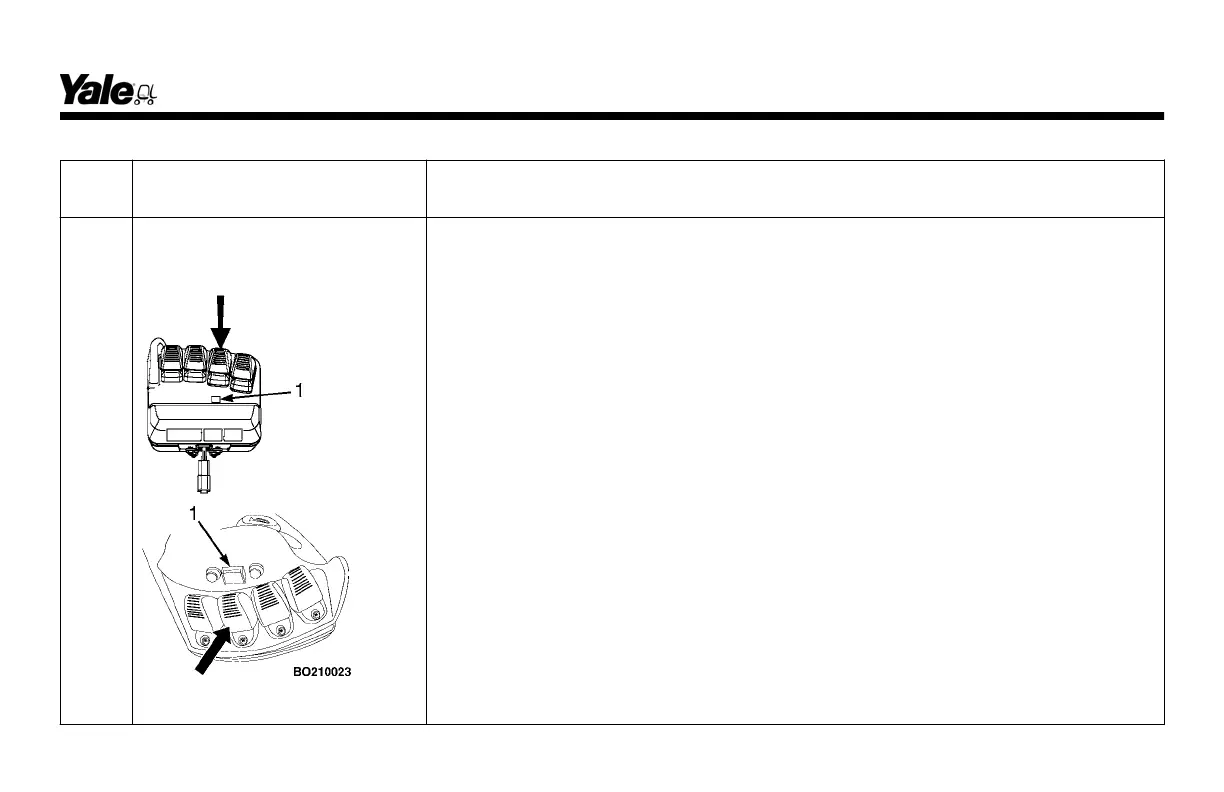

10 Electronic Control Mini-Lever
for Auxiliary
Hydraulic Func-
tions (3rd lever). See Figure 8.
1. OVERRIDE BUTTON
The third electronic control mini-lever is installed to the right of the electronic tilt
control lever.
This lever can have two methods of operation, depending on the
attachment.
NOTE: To operate the mini-levers, the operator must be on the seat and the arm
rest must be in the down position.
NOTE: If truck is equipped with only three levers and clamp attachment, the last
(3rd) lever controls clamp functions.
Trucks with Clamp Attachment: To engage the clamp, move the mini-lever
backward. To disengage the clamp, press the override button located directly
behind the mini-lever and push the mini-lever forward.
Trucks without Clamp Attachment: The lever is operated by moving it forward
and back. The lever is spring-loaded to return to the neutral position when
released.
Model Description
49
