1. STANDARD TRANSMISSION
2.
TECHTRONIX 100 TRANSMISSION
3. POWERSHIFT 1 SPEED TRANSMISSION

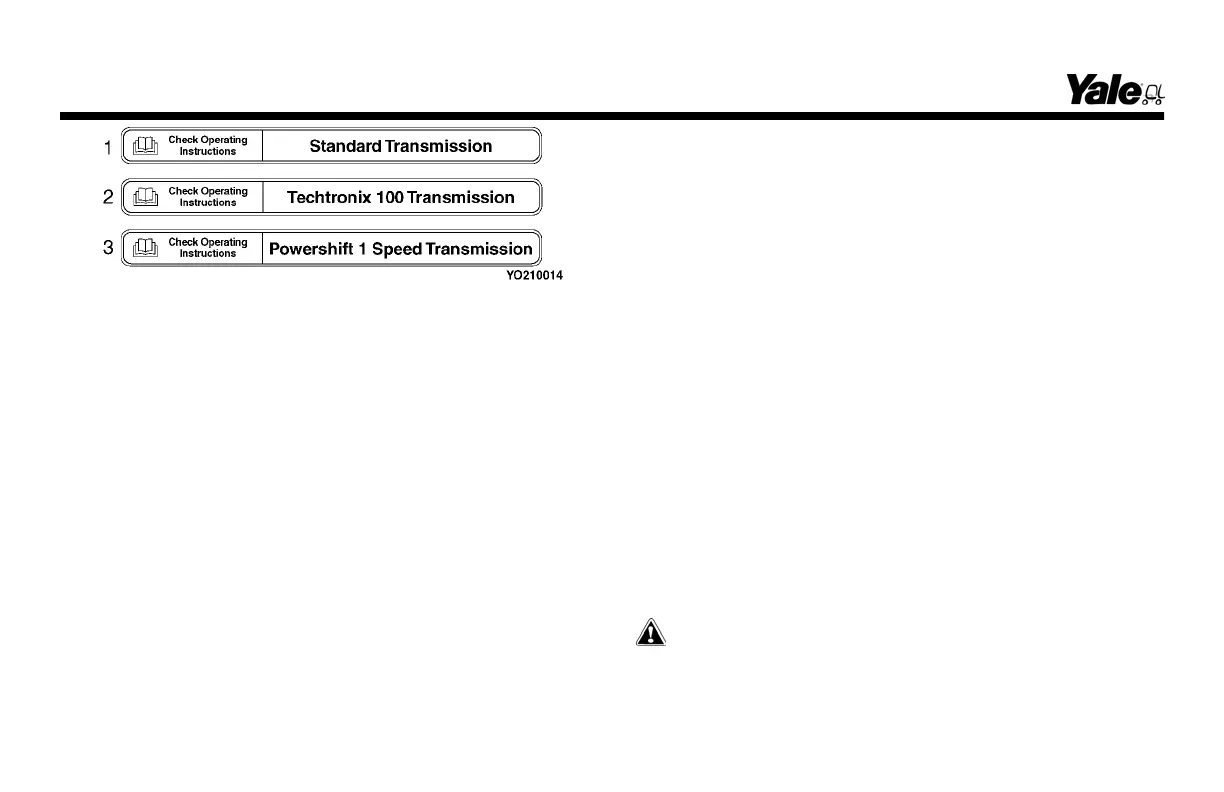

Figure 14. Transmission Labels
General
The lift truck can have either a Foot Directional Control
pedal or a Direction Control Lever to control the transmis-
sion. The selected direction of travel is shown on the dis-
play switch cluster. See Figure 7. If the lift truck has a Foot
Directional Control pedal, push on the left side of the pedal
to go FORWARD, or the right side of the pedal to go in
REVERSE. If the lift truck has a direction control lever,
move the lever toward the front of the lift truck to go FOR-
WARD and toward the rear of the lift truck to go in
REVERSE.
Normal Operations
In normal operating conditions, either at start or while driv-
ing, the lift truck can only be maintained at a stopped posi-
tion by applying the service brake or parking brake.
When moving away from a stop:
1. Select direction while maintaining braking.
2. Depress the accelerator or Foot Directional Control
pedal.
3. Release the brakes (parking and/or service brake)
Depress the accelerator or Foot Directional Control pedal
to ensure the lift truck will move in the selected direction
when the brakes are released.
Due to variable load and grade conditions, this procedure
minimizes the possibility of the lift truck traveling in a direc-
tion opposite to the one selected.
Standard Operator Presence System
WARNING
Always make sure the parking brake is fully applied
before leaving the lift truck. If the operator leaves the
lift truck without applying the parking brake, a seat
