Table 4. Operator Controls (See Figure 8) (Continued)
Item
No.
Item Function

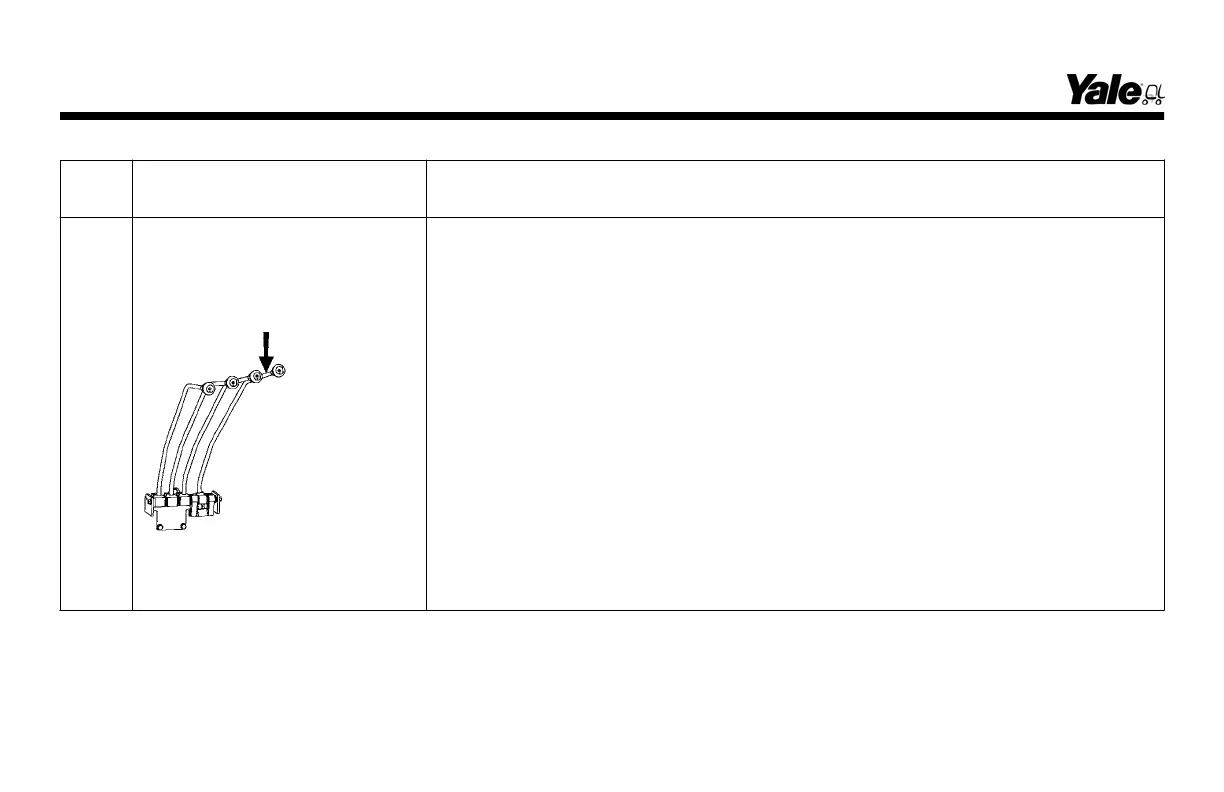

11 Manual Control Lever for
Auxiliary
Hydraulic
Functions (4th lever).
See Figure 8.
NOTE: Manual hydraulic
control levers are standard on the trucks covered in this
manual (see Figure 8). Two optional controls are available for the hydraulic func-
tions: electronic hydraulic mini-levers (see Figure 8) and a joystick (see Figure 10
and Table 5).
The fourth manual control lever is installed to the right of the third manual control
lever. This lever can have two methods of operation, depending on the attach-
ment.
NOTE: If truck is equipped with four levers and clamp attachment, the last (4th)
lever controls clamp functions.
Control Lever with a Detent - Attachments with a clamp action: The lever is
spring-loaded toward the operator. The lever is operated by moving it to the right,
then forward and back.
Control Lever without a Detent - Attachments without a clamp action: The
lever is operated by moving it forward and back.
Model Description
50
