Table 4. Operator Controls (See Figure 8) (Continued)
Item
No.
Item Function
11 Electronic Control Mini-Lever
for Auxiliary
Hydraulic Func-
tions (4th lever). See Figure 8.

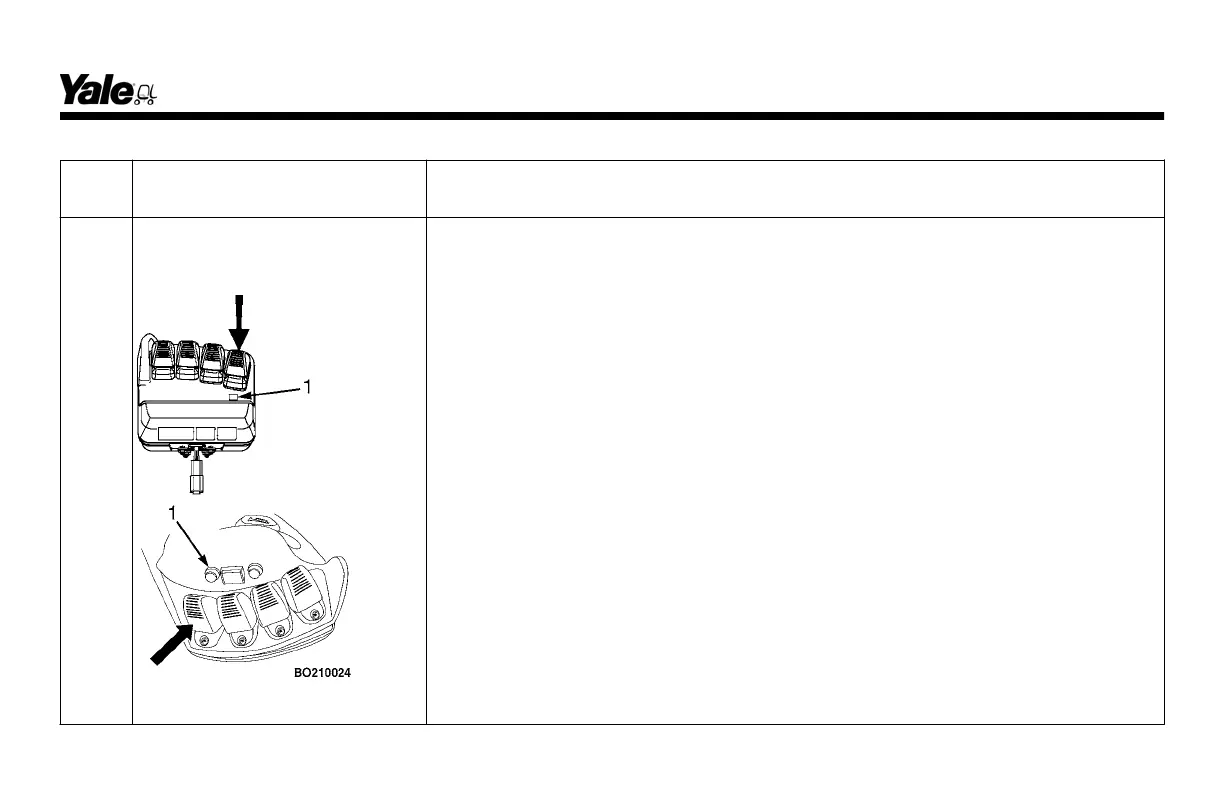

1. OVERRIDE BUTTON
The fourth electronic control lever is installed to the right of the third electronic
control lever.
This lever can have two methods of operation, depending on the
attachment.
NOTE: To operate the mini-levers, the operator must be on the seat and the arm
rest must be in the down position.
NOTE: If truck is equipped with four levers and clamp attachment, the last (4th)
lever controls clamp functions.
Trucks with Clamp Attachment: To engage the clamp, move the mini-lever
backward. To disengage the clamp, press the override button located directly
behind the mini-lever and push the mini-lever forward.
Trucks without Clamp Attachment: The lever is operated by moving it forward
and back. The lever is spring-loaded to return to the neutral position when
released.
