Table 4. Operator Controls (See Figure 8) (Continued)
Item
No.
Item Function
12 Direc-
tion
Con-
trol
Lever
NOTE: There is a sensor in the seat that actuates an audible
buzzer. If the opera-
tor leaves the seat with the key switch ON and the lever is not in NEUTRAL, the
buzzer will pulse ON and OFF for 10 seconds.

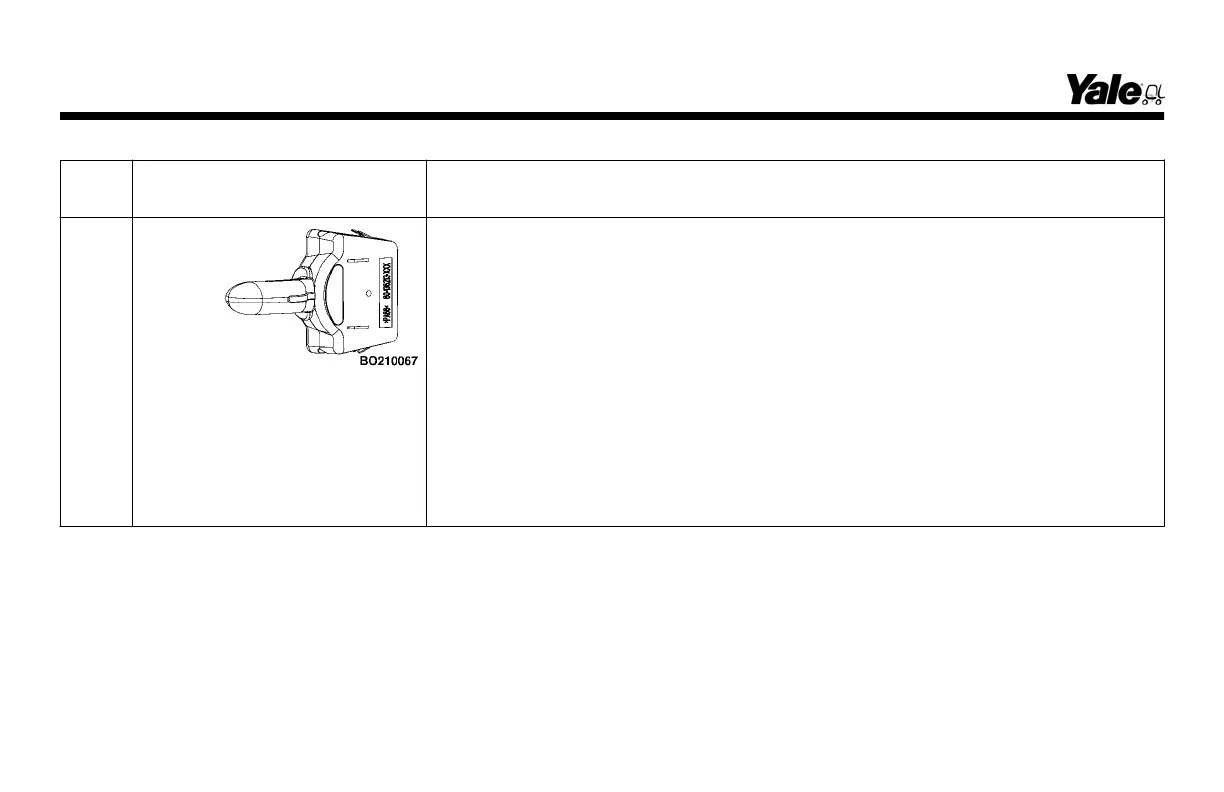

The Direction Control Lever for the transmission is on the left side of the Display
Switch Cluster. The Direction Control Lever is used on lift trucks without a pedal.
The Direction Control Lever has three positions that are indicated by three green
lights on left side of Display Switch Cluster (see Figure 7 and Table 3): FOR-
WARD, NEUTRAL (N), and REVERSE. Move the lever to one of the direction
positions for travel. The Direction Control Lever must be in the NEUTRAL (N)
position before the engine can be started. The reverse lights will be on and, if
equipped, reverse alarm will be activated when the lever is placed in the
REVERSE position.
