Table 4. Operator Controls (See Figure 8) (Continued)
Item
No.
Item Function

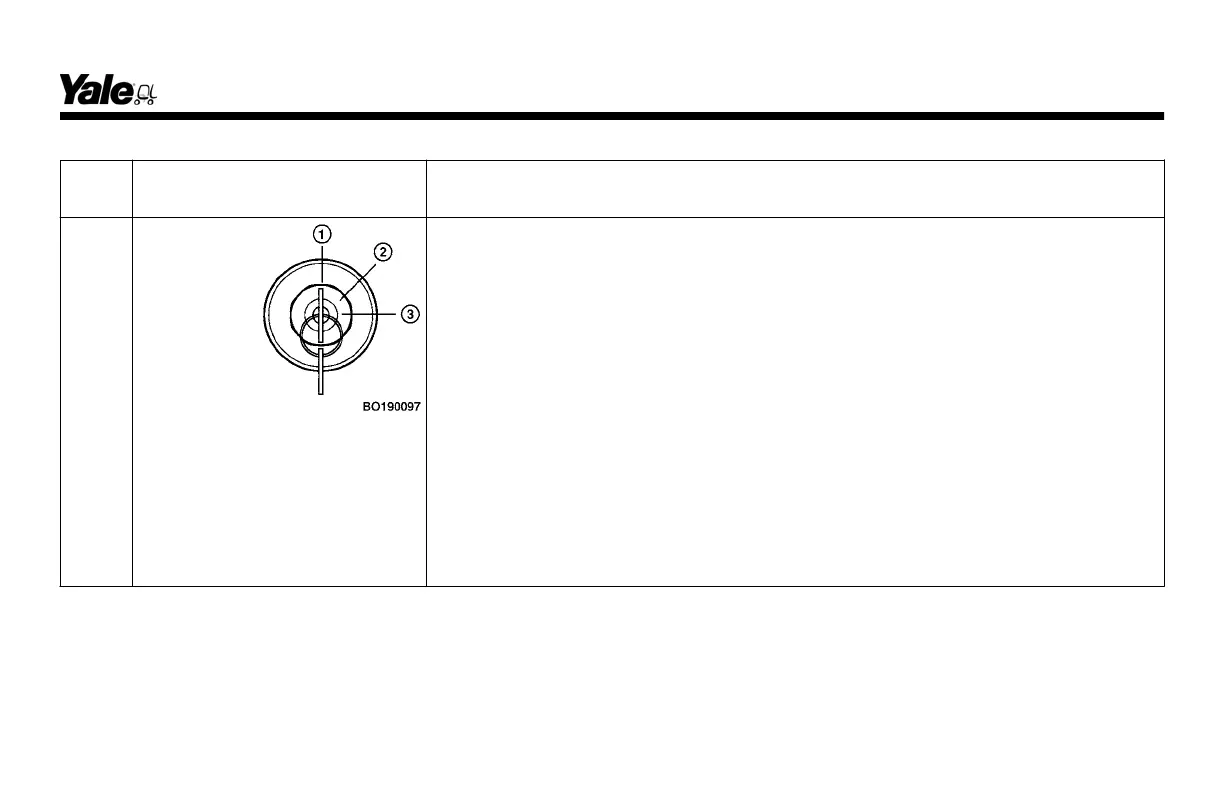

13 Key Switch NOTE: There is no mechanical
lockout that prevents the key switch from being
returned to the START position without first being returned to the OFF position.
However, the Vehicle System Manager (VSM) software prevents the starter motor
from being energized while the engine is running.
The key switch is located on the right side of the Display Switch Cluster. The key
switch has three positions:
No. 1 Position: OFF position. De-energizes all electric circuits except for the horn
and front and rear work lights.
No. 2 Position: ON position. Energizes all electric circuits except the starter circuit.
The key switch will be in this position during normal operation.
No. 3 Position: START position. Energizes the starter motor for starting the
engine. A spring returns the key to position No. 2 (ON position) when the key is
released.
