WARNING
Do not try to move a fork without a lifting device. Each
hook fork for these lift trucks can weigh 45 to 115 kg (99
to 253 lb).
NOTE: Forks are to be replaced only in sets and not individ-
ually.
2. A fork can be removed from the carriage for replacement
of the fork or other maintenance. Slide a hook fork to the fork
removal notch on the carriage. See Figure 31 and Fig-
ure 33. Lower the fork onto blocks so that the bottom hook of
the fork moves through the fork removal notch. See Fig-
ure 33. Lower the carriage further so that the top hook of the
fork is disengaged from the top carriage bar. Move the car-
riage away from the fork, or use a lifting device to move the
fork away from the carriage. See Figure 32.

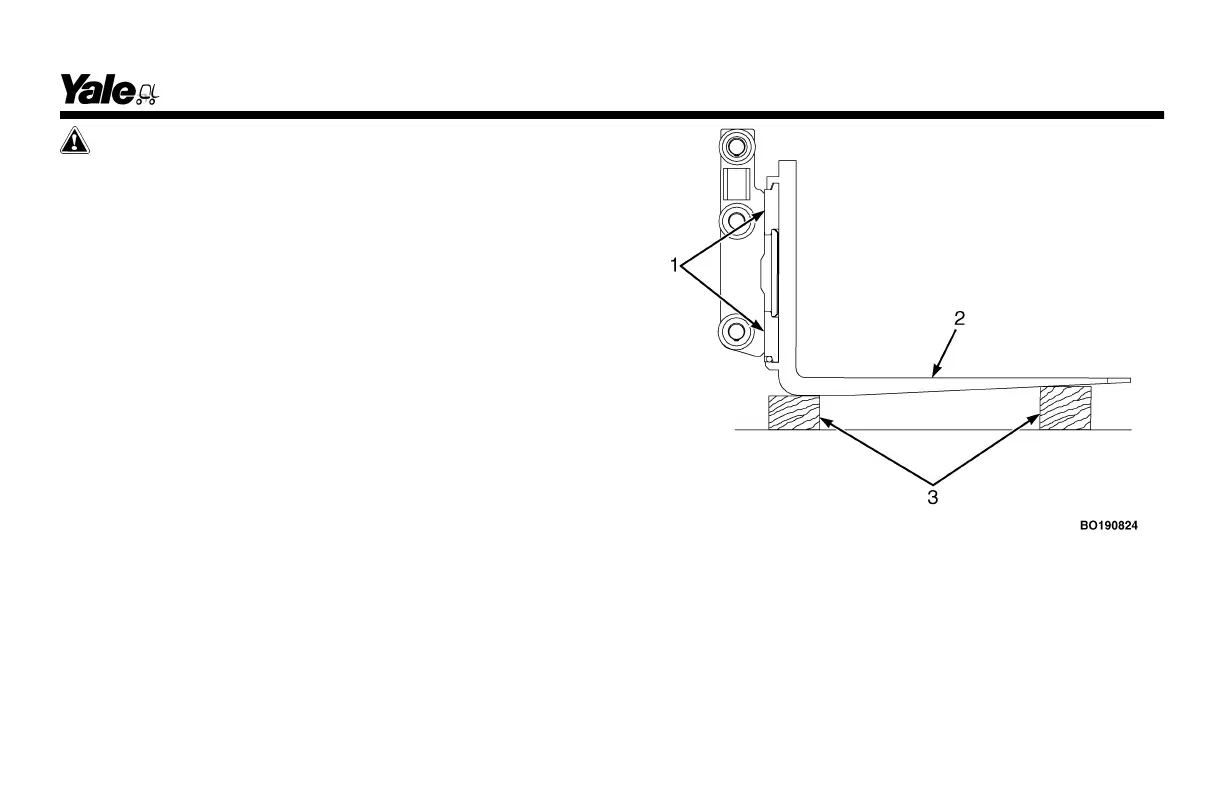

1. CARRIAGE BARS
2. HOOK FORK
3. BLOCKS
Figure 31. Remove a Hook Fork
Maintenance
153
