Tire Installation, Three- or Four-Piece Wheel
WARNING
Damage to the tire and wheel assembly and injury or
death can occur if you do not do the following proce-
dures:
• Clean and inspect all parts of the wheel before instal-
ling the tire.
• DO NOT use any damaged or repaired wheel parts.
• Make sure that all parts of the wheel are the correct
parts for the wheel assembly.
• DO NOT mix parts between different types or manu-
facturers of wheels.
• DO NOT mix types of tires, type of tire tread, or wheel
assemblies of different manufacturers on any one lift
truck.
Do not use a steel hammer on the wheel. Use a rubber,
lead, plastic, or brass hammer to put parts together.
Make sure that the side ring is in the correct position.
The ends of the side ring must not touch. The clearance
at the ends of the side rings will be approximately 13 to
25 mm (0.5 to 1.0 in.) after it is installed. If the clearance
is wrong, the wrong part has been used.

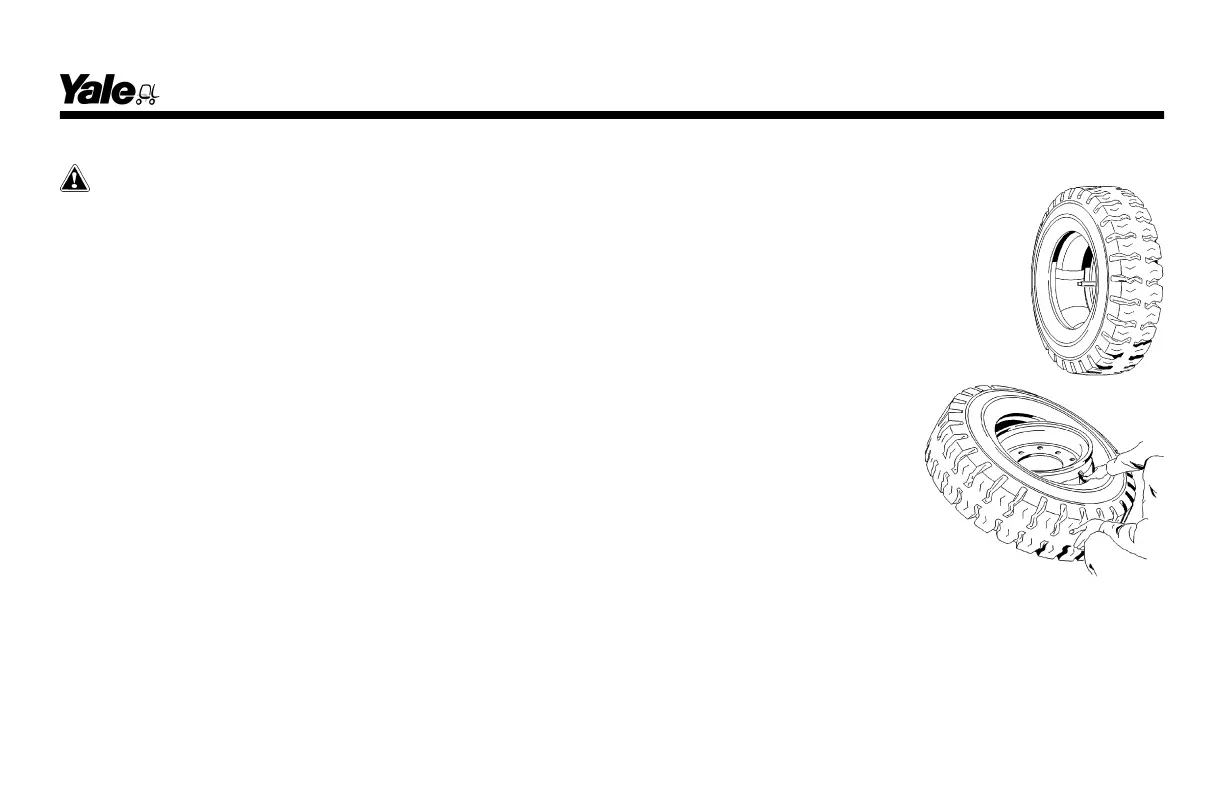

1. Install the inner tube and the rubber flap
in the tire.
2. Install the wheel rim in the tire. Make sure
the stem of the inner tube is aligned with the
slot in the rim.
Maintenance
179
