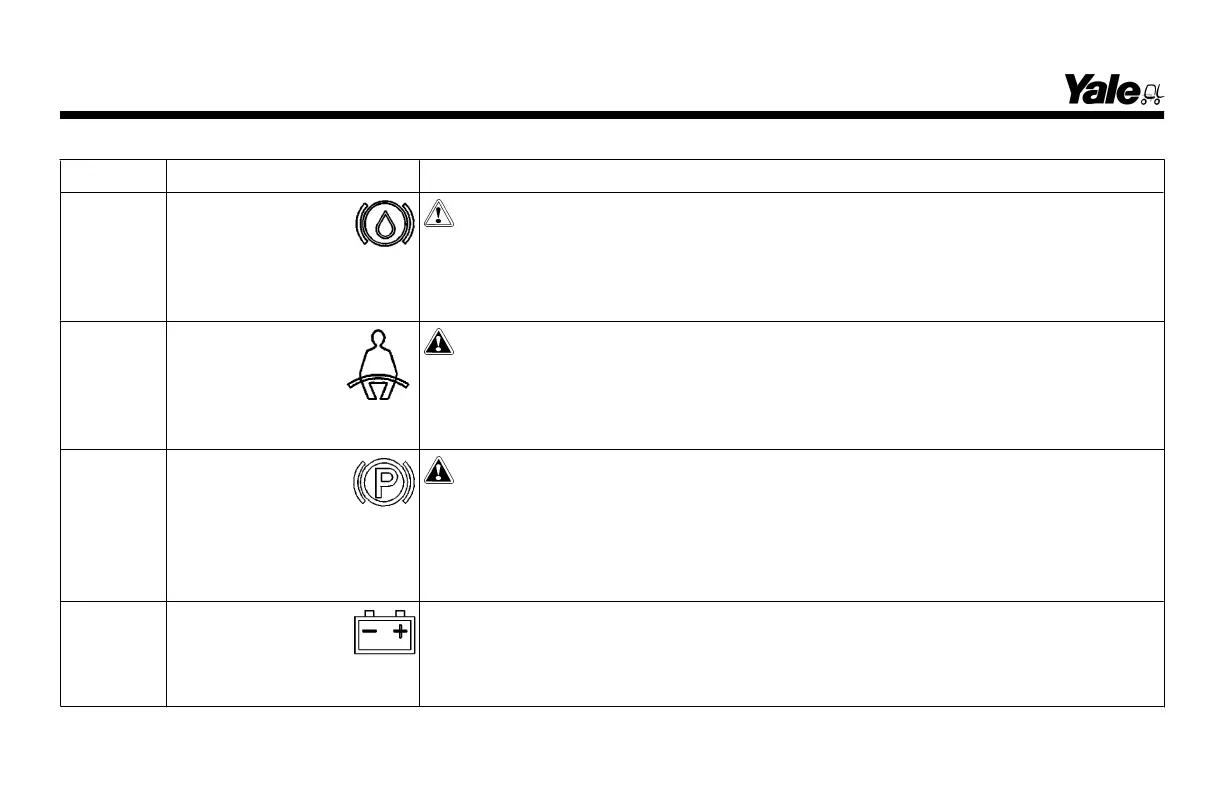

Table 2. Instruments – Warning and Indicator Lights (See Figure 8) (Continued)
Item No. Item Function
6 Warning Light,
Brake Fluid Level
Malfunction
Indicator
CAUTION
Do not continue to operate the lift truck if the light is on during operation.
The red brake fluid light will illuminate when the brake fluid level switch indicates a
low fluid condition.
7 Warning Light,
Fasten Seat Belt
Malfunction
Indicator
WARNING
Always fasten the seat belt when operating the lift truck.
The red light is illuminated for 10 seconds after system power is turned ON. Not on
at Start Check.
8 Warning Light,
Parking Brake
Malfunction
Indicator
WARNING
Always apply the parking brake when leaving the lift truck.
The red parking brake light will illuminate any time the system power is ON and the
parking brake lever is moved into the applied position. The indicator light will flash
any time the Parking Brake Warning alarm is active. Not on at Start Check.
9 Warning Light,
Alternator
Malfunction
Indicator
The red Alternator light will illuminate when the system is not in the OFF state and
the alternator is not in a charging state. This includes illuminating at System Power
On until the normal operating minimum is reached. Not on at Start Check.
Model Description
34
