40 Chapter 2—Control Surface & Rear Panel
02R96 Version 2—Owner’s Manual

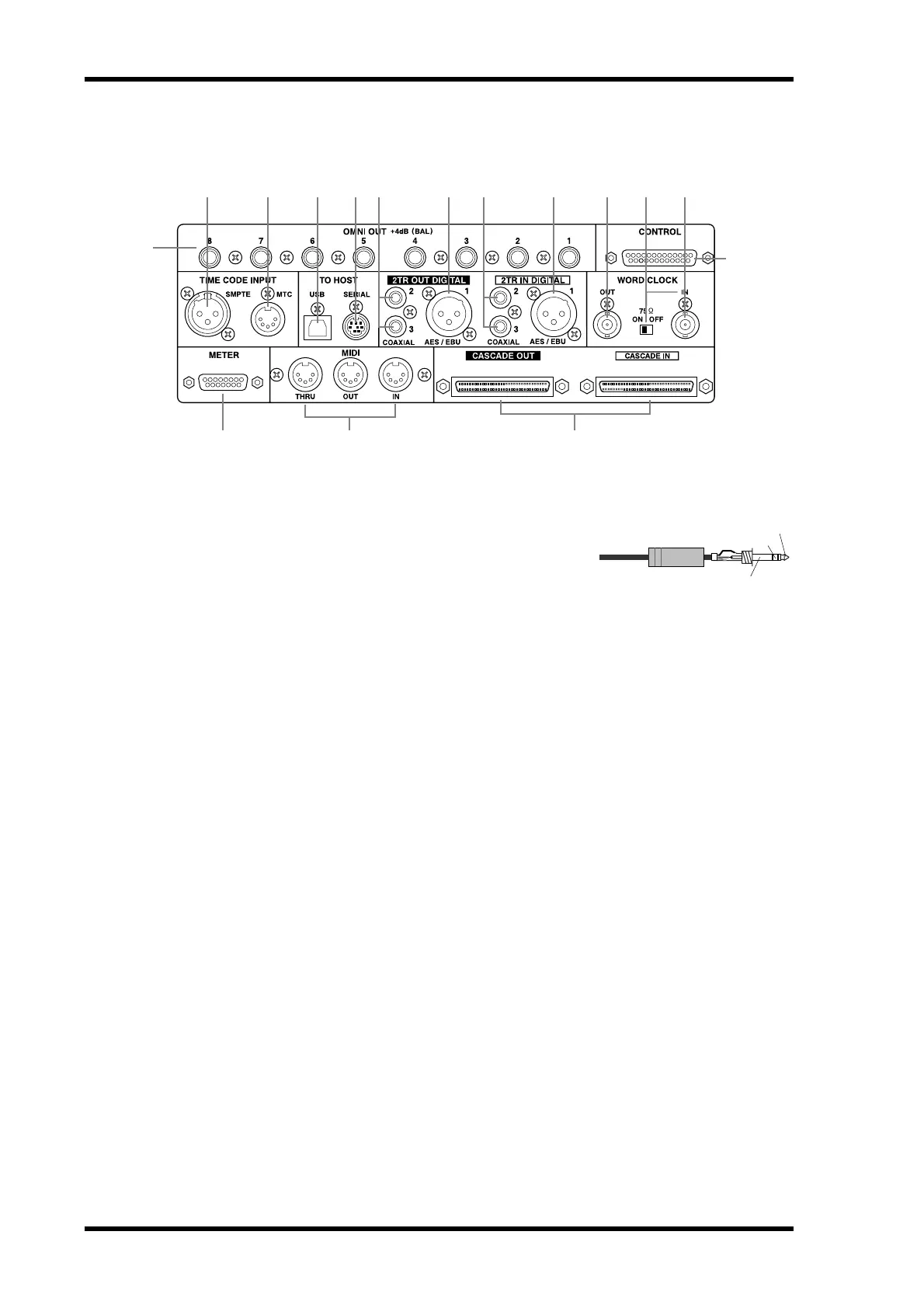

OMNI OUTs, Digital I/O & Control Section
A
OMNI OUT +4dB (BAL)
These balanced 1/4-inch TRS phone jacks, nominal output
level +4 dB, provide eight analog outputs that can be
patched to the following: Bus Outs, Aux Sends, the Stereo
Out, Insert Outs, Direct Outs, or Surround Monitor Chan-
nels. See “Omni Outs” on page 54.
B SMPTE TIME CODE INPUT connector
This balanced XLR-3-31-type connector is used to input SMPTE timecode for synchroniz-
ing the Automix function. See “Selecting the Timecode Source & Frame Rate” on page 177.
C MTC TIME CODE INPUT connector
This 5-pin DIN connector is used to input MTC for synchronizing the Automix function.
See “Selecting the Timecode Source & Frame Rate” on page 177.
D USB TO HOST port
This USB port is for MIDI communication between the 02R96 and a host computer with a
USB port. See “MIDI I/O” on page 190 for more information.
E SERIAL TO HOST port
This 8-pin mini DIN port is for MIDI communication between the 02R96 and a host com-
puter with a serial port. See “MIDI I/O” on page 190 for more information.
F 2TR OUT DIGITAL COAXIAL 2 & 3
These phono connectors output consumer format (IEC-60958) digital audio, and are typ-
ically connected to the digital stereo inputs of 2-track recorders. The following signals can
be patched to these outputs: Stereo Out, Bus Outs, Aux Sends, Direct Outs, Insert Outs, and
Control Room. Dither can be applied for digital audio transfer to lower-resolution systems.
See “2TR Digital Outs” on page 57 for more information.
G 2TR OUT DIGITAL AES/EBU 1
This XLR-3-32-type connector outputs AES/EBU format digital audio, and is typically con-
nected to the digital stereo input of a 2-track recorder. The following signals can be patched
to this output: Stereo Out, Bus Outs, Aux Sends, Direct Outs, Insert Outs, and Control
Room. Dither can be applied for digital audio transfer to lower-resolution systems. See
“2TR Digital Outs” on page 57 for more information.
N PO
2 3 4 5 6 7 8 9 J L
M
1
K
1/4" TRS phone plug
Tip (hot)
Ring (cold)
Sleeve (ground)
