Using Surround Pan 85
02R96 Version 2—Owner’s Manual
Using Surround Pan
The 02R96 supports 3-1, 5.1 and 6.1 Surround modes. Surround pan is independent of nor-
mal panning. Normal panning determines how the Input Channel signal is panned
between the left and right channels of the Stereo out. Whereas surround panning deter-
mines how the Input Channel signal is panned among the Surround channels (i.e., the Bus
Outs).
If Input Channel Follow Pan is off, you can patch signals to the corresponding Bus Outs
without being affected by the surround pan setting. This is useful when you want to assign
the surround source or surround effect return to Bus Outs.
When the Nominal Pan preference is on (see page 231), signals will be at nominal level
when panned hard left or hard right, and at +3 dB when the preference is turned off.
The following table shows how Surround channels are handled by the Bus Outs.
The table may vary depending on the settings on the Surround Bus Setup page (see
page 87).

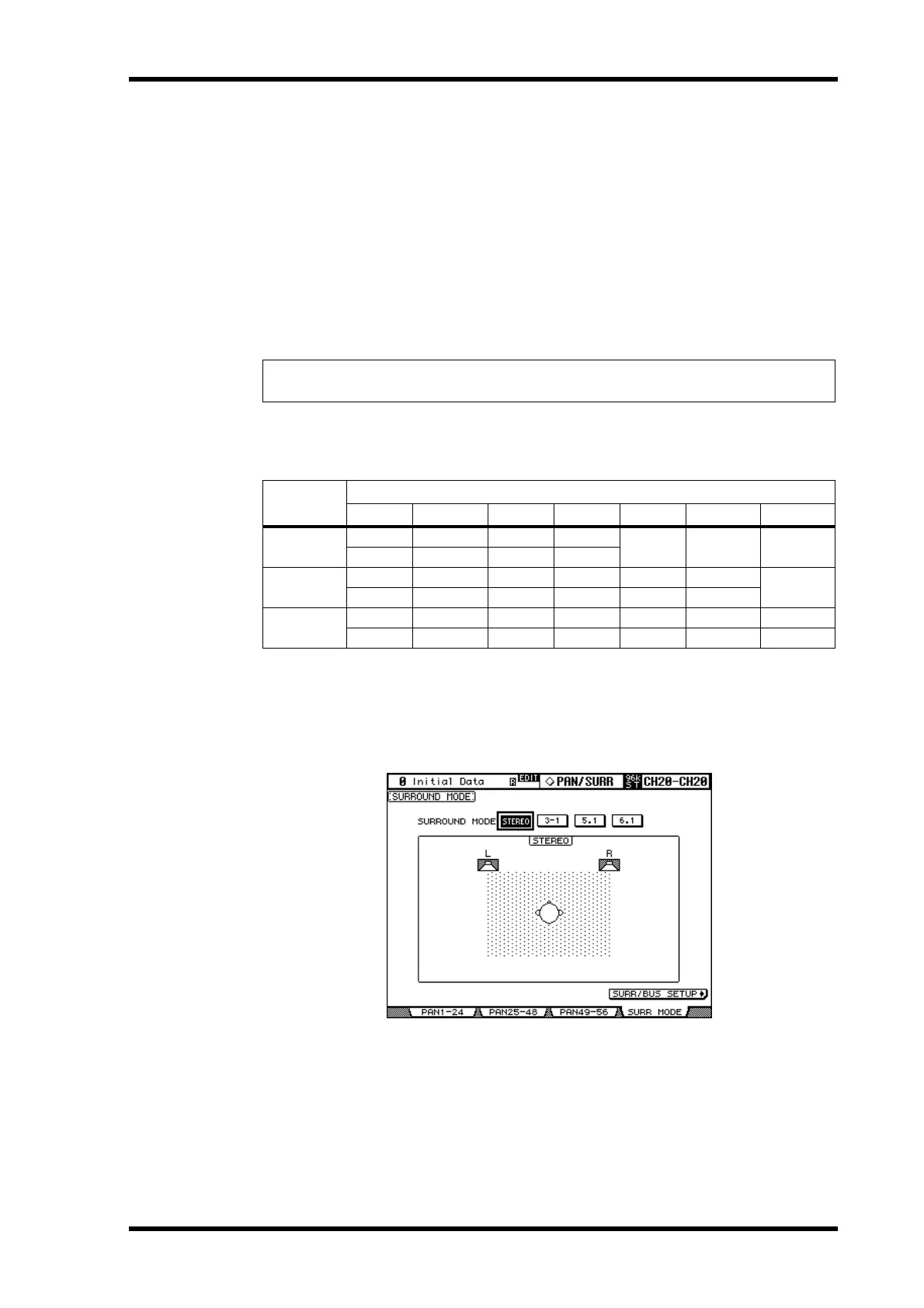

Selecting Surround Pan Modes
The Surround mode can be selected as follows.
1 Use the SELECTED CHANNEL PAN/SURROUND [DISPLAY] button to select
the Surround Mode page.
Note: If you have saved a scene with the Follow Pan function turned off on a 02R96 that is
older than Version 2.0, the surround setting may not be reproduced
Surround
Mode
Bus Outs
12345 6 7
3-1
LRCS
—— —
Front left Front right Center Surround
5.1
LRLsRs C LFE
—
Front left Front right Rear left Rear right Center Subwoofer
6.1
LRLsRs C Bs LFE
Front left Front right Rear left Rear right Center Rear center Subwoofer
To Next Page
