64 Chapter 5—Digital I/O & Cascading
02R96 Version 2—Owner’s Manual

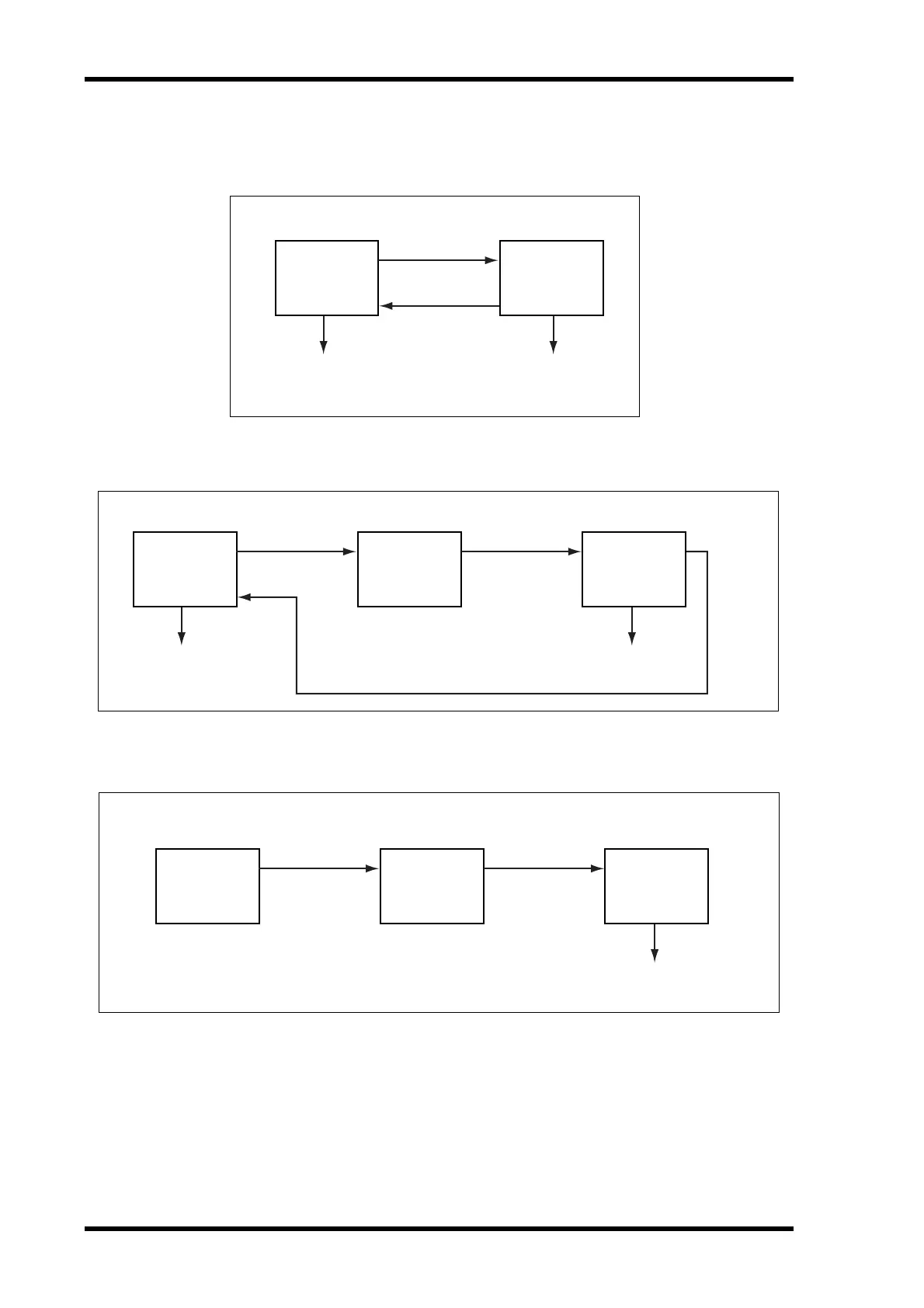

Cascade Hookup Examples
Cascading Two 02R96s
Cascading Three or More 02R96s
Cascading an 02R Digital Recording Console
02R96 #1 02R96 #2
CASCADE IN
CASCADE OUT
CASCADE OUT
CASCADE IN
Master: Off
Bi-directional: –
Final signals can be output by
the Slot Outputs or Omni Outs.
Final signals can be output by
the Slot Outputs or Omni Outs.
Master: On
Bi-directional: On
02R96 #1 02R96 #2/3 02R96 #4
CASCADE IN
CASCADE OUT
CASCADE IN
CASCADE OUT CASCADE OUT
CASCADE IN
Master: Off
Bi-directional: –
Final signals can be output by
the Slot Outputs or Omni Outs.
Master: Off
Bi-directional: –
Master: On
Bi-directional: On
Final signals can be output by
the Slot Outputs or Omni Outs.
02R 02R96 #1/2 02R96 #3
CASCADE IN
CASCADE OUT
CASCADE IN
CASCADE OUT
Master: On
Bi-directional: Off
Final signals can be output by
the Slot Outputs or Omni Outs.
Master: Off
Bi-directional: –
Cascade In from: 02R
