Yamaha 2009 YZF-R1 (Y) - CHANGING THE ENGINE OIL

PERIODIC MAINTENANCE
3-29
TIP
Before checking the engine oil level, wait a few
minutes until the oil has settled.
EAS20790

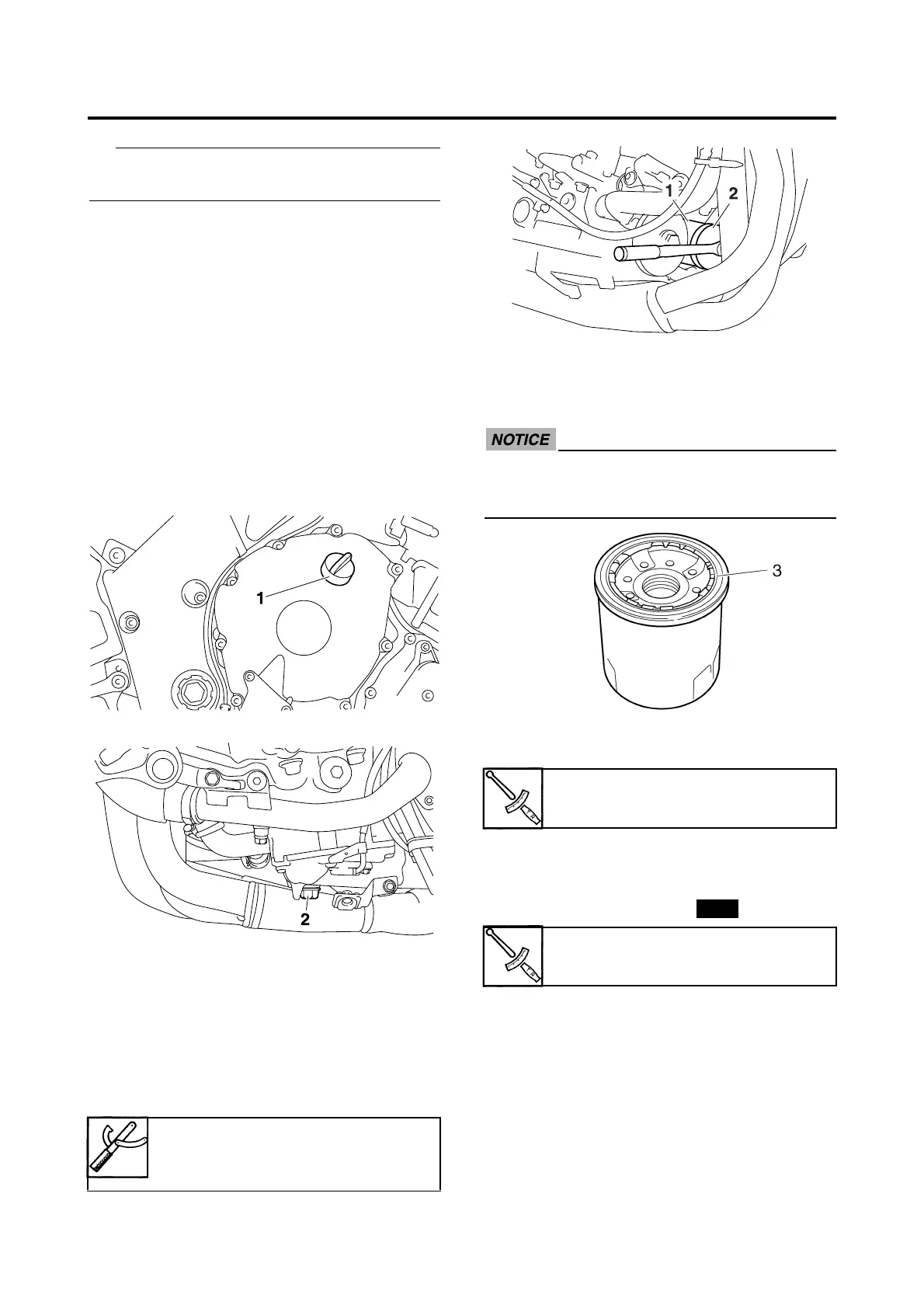

CHANGING THE ENGINE OIL
1. Start the engine, warm it up for several
minutes, and then turn it off.
2. Place a container under the engine oil drain
bolt.
3. Remove:
• Lower cowlings
Refer to “GENERAL CHASSIS” on page
4-1.
4. Remove:
• Engine oil filler cap “1”
• Engine oil drain bolt “2”
(along with the gasket)
5. Drain:
• Engine oil
(completely from the crankcase)
6. If the oil filter cartridge is also to be
replaced, perform the following procedure.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the oil filter cartridge “1” with an oil
filter wrench “2”.
b. Lubricate the O-ring “3” of the new oil filter
cartridge with a thin coat of lithium-soap-
based grease.
ECA13390
Make sure the O-ring “3” is positioned cor-
rectly in the groove of the oil filter car-
tridge.
c. Tighten the new oil filter cartridge to speci-
fication with an oil filter wrench.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
7. Install:
• Engine oil drain bolt
(along with the gasket )
8. Fill:
•Crankcase
(with the specified amount of the recom-
mended engine oil)
Oil filter wrench
90890-01426
YU-38411
Oil filter cartridge
17 Nm (1.7 m·kgf, 12 ft·lbf)
Engine oil drain bolt
43 Nm (4.3 m·kgf, 31 ft·lbf)
New
