Yamaha 2009 YZF-R1 (Y) - Removing the Camshafts

CAMSHAFTS
5-15

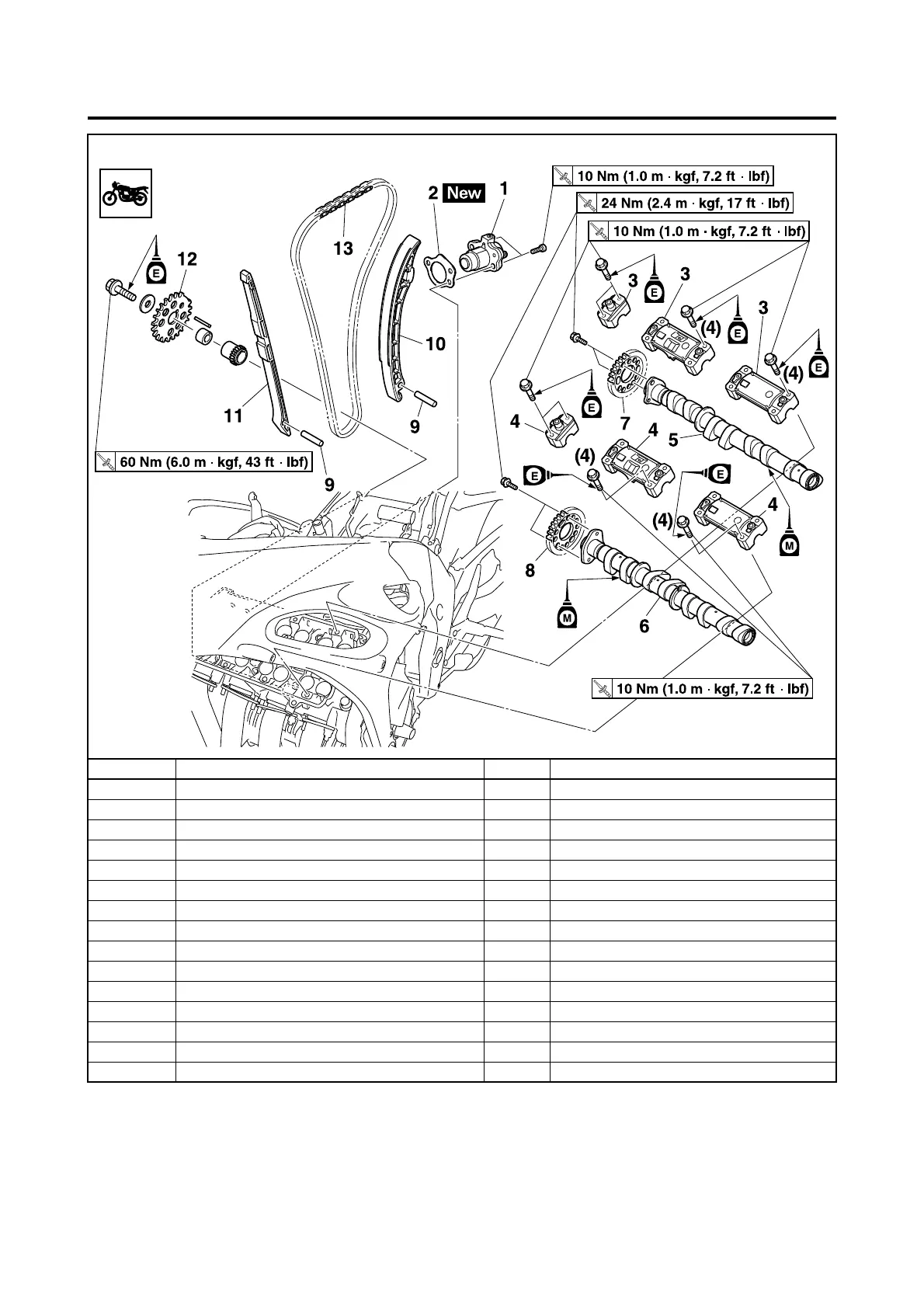

Removing the camshafts
Order Job/Parts to remove Q’ty Remarks
Pickup coil cover 2 Refer to “PICKUP ROTOR” on page 5-43.
Generator cover Refer to “GENERATOR” on page 5-37.
1 Timing chain tensioner 1
2 Timing chain tensioner gasket 1
3 Intake camshaft cap 3
4 Exhaust camshaft cap 3
5 Intake camshaft 1
6 Exhaust camshaft 1
7 Intake camshaft sprocket 1
8 Exhaust camshaft sprocket 1
9Dowel pin 2
10 Intake side timing chain guide 1
11 Exhaust side timing chain guide 1
12 Pickup rotor 1 Refer to “PICKUP ROTOR” on page 5-43.
13 Timing chain 1
