Yamaha 2009 YZF-R1 (Y) - Removing and Installing the Lower Cowlings; Removing and Installing the Side Cowling Inner Panels; Removing the Air Chamber Covers

GENERAL CHASSIS
4-13
EAS14B1040

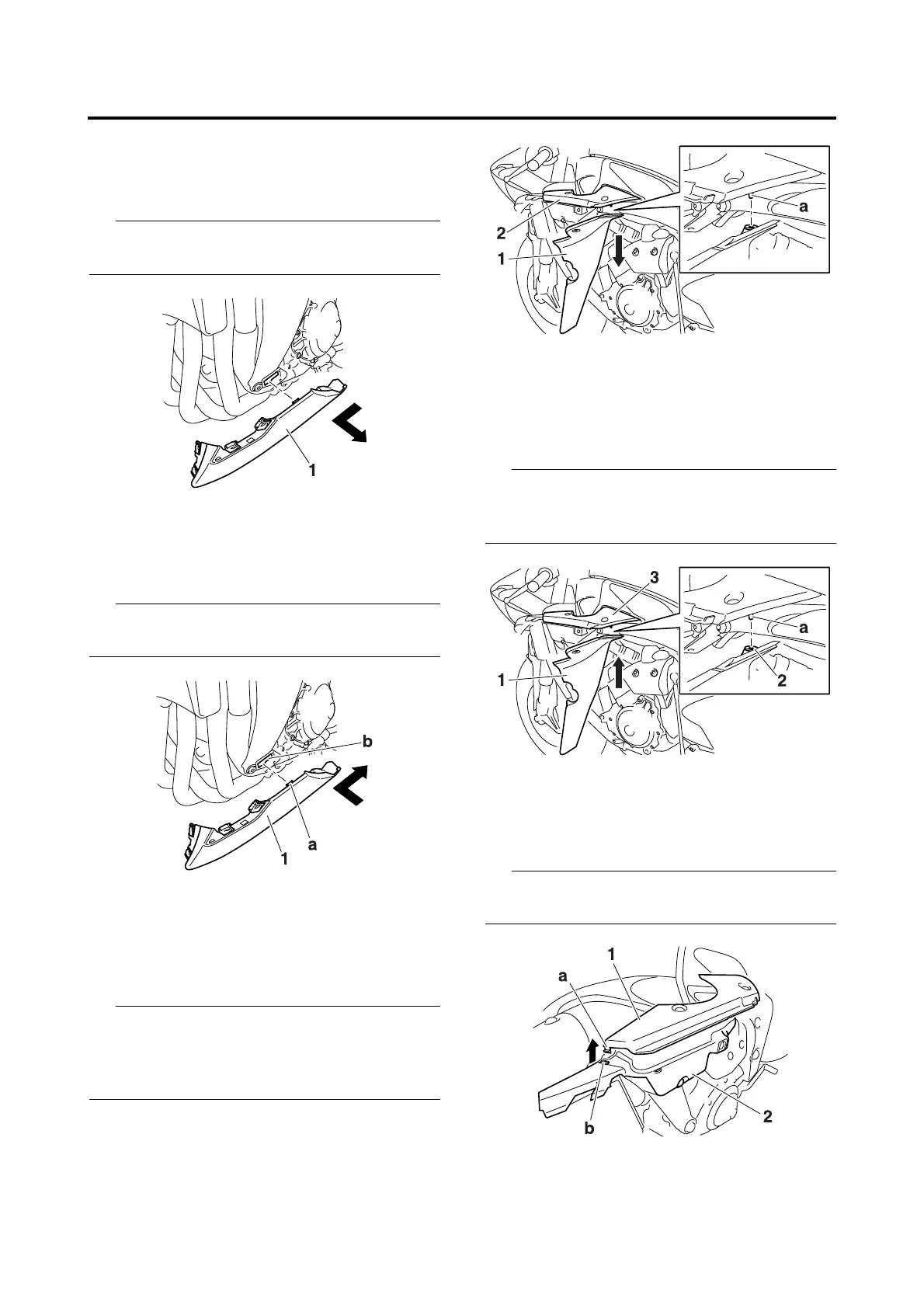

REMOVING THE LOWER COWLINGS
1. Remove:
• Lower cowling “1”
TIP
Slide the lower cowling to the forward and
remove.
EAS14B1041
INSTALLING THE LOWER COWLINGS
1. Install:
• Lower cowling “1”
TIP
Insert the lower cowling tab “a” into the inner
panel hole “b” and slide back.
EAS14B1042
REMOVING THE SIDE COWLING INNER
PANELS
1. Remove:
• Side cowling inner panel “1”
TIP
When removing the side cowling inner panel
downward, pull out the side cowling inner
panel hole from the projection “a” of the air
chamber cover “2”.
EAS14B1043
INSTALLING THE SIDE COWLING INNER
PANELS
1. Install:
• Side cowling inner panel “1”
TIP
Install the grommet “2” to the side cowling
inner panel and insert them into the projection
“a” of the air chamber cover “3”.
EAS14B1044
REMOVING THE AIR CHAMBER COVERS
1. Remove:
• Air chamber cover “1”
TIP
Pull out the air chamber cover tab “a” upward
from the hole “b” of the air chamber “2”.
