REAR WHEEL
4-26

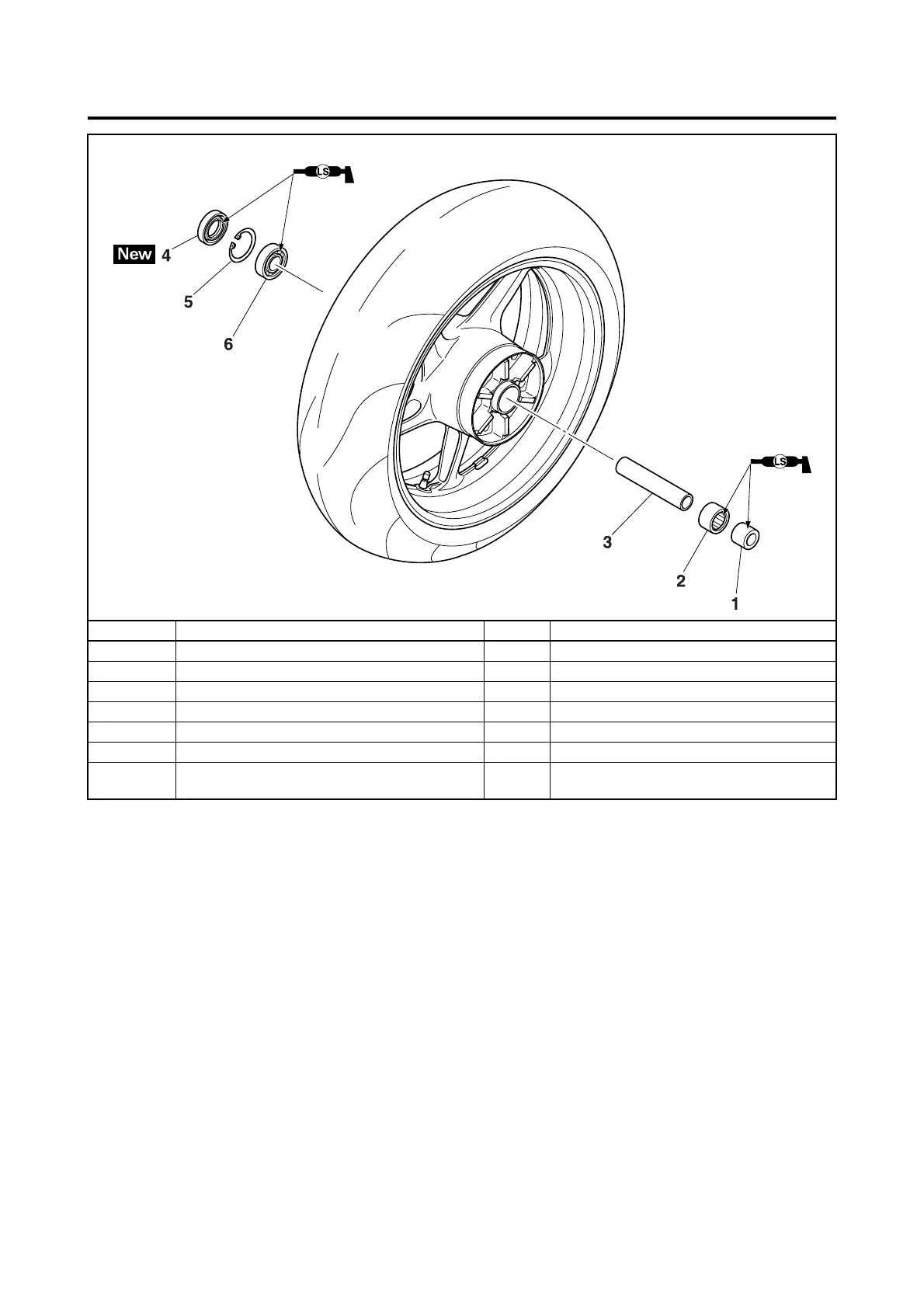

Disassembling the rear wheel
Order Job/Parts to remove Q’ty Remarks
1 Collar 1
2 Bearing 1
3Spacer 1
4 Oil seal 1
5 Circlip 1
6 Bearing 1
For assembly, reverse the disassembly pro-
cedure.
