Yamaha 2009 YZF-R1 (Y) User Manual

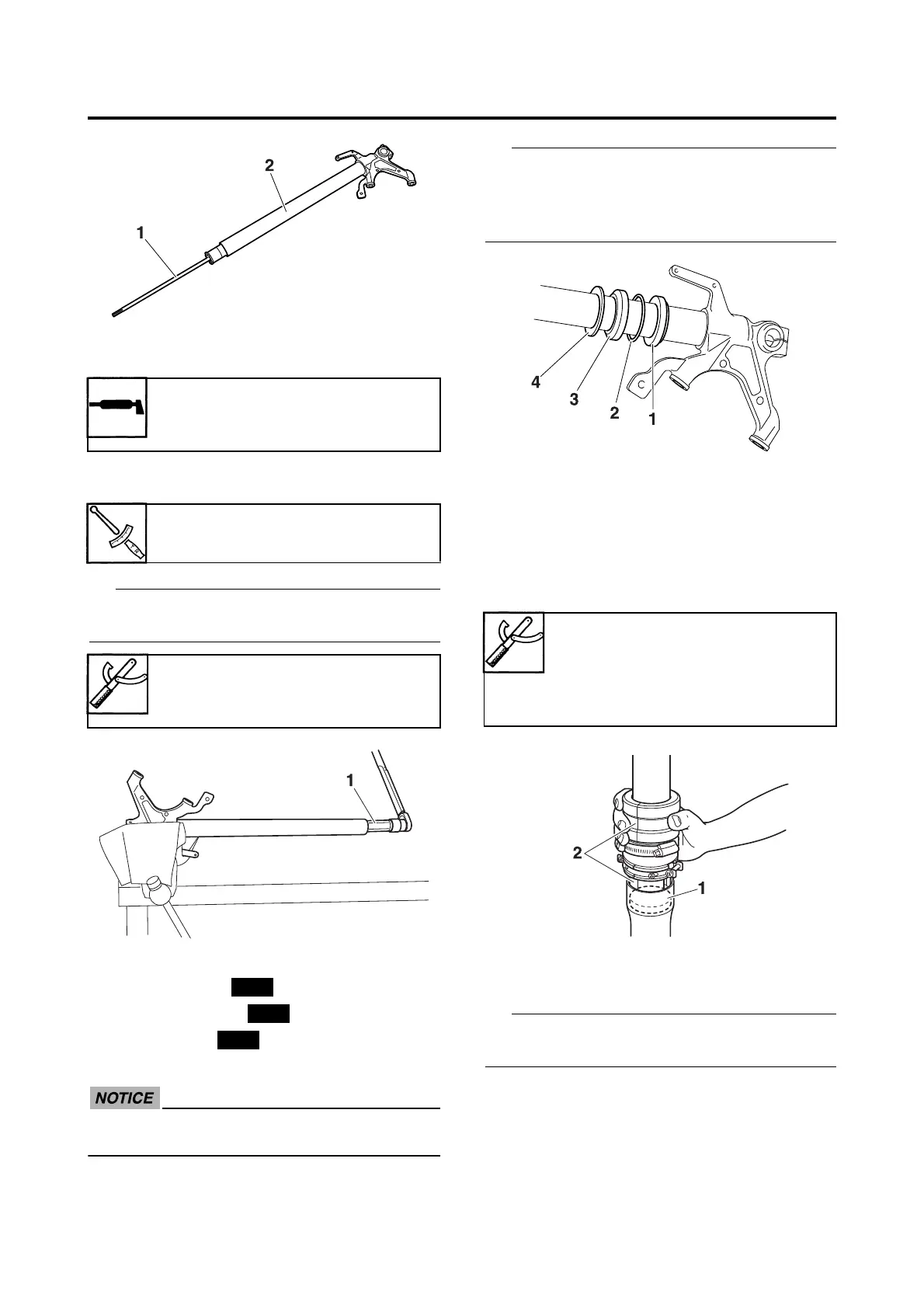

FRONT FORK
4-65
2. Lubricate:
• Inner tube’s outer surface
3. Tighten:
• Damper rod assembly
TIP
Tighten the damper rod assembly with the
damper rod holder “1”.
4. Install:
• Dust seal “1”
• Oil seal clip “2”
• Oil seal “3”
• Washer “4”
ECA14B1007
Make sure the numbered side of the oil seal
faces bottom side.
TIP
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
• Lubricate the outer surface of the inner tube
with fork oil.
5. Install:
• Outer tube
(to the inner tube)
6. Install:
• Washer
•Oil seal “1”
(with the fork seal driver “2”)
7. Install:
• Oil seal clip “1”
TIP
Adjust the oil seal clip so that it fits into the
outer tube’s groove.
Recommended oil
Suspension oil M1 or equiva-
lent
Damper rod assembly
75 Nm (7.5 m·kgf, 54 ft·lbf)
Damper rod holder
90890-01506
YM-01506
New
New
New
Fork seal driver
90890-01442
Adjustable fork seal driver (36–
46 mm)
YM-01442

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
