PERIODIC MAINTENANCE
3-20
EAS30647
CHECKING THE FASTENERS
1. Check:
• Fasteners
Damage/pitting → Replace.
Refer to “GENERAL CHASSIS (1)” on page
4-1.
EAS30804
LUBRICATING THE BRAKE LEVER
Lubricate the pivoting point and metal-to-metal
moving parts of the lever.
EAS30649
LUBRICATING THE PEDAL
Lubricate the pivoting point and metal-to-metal
moving parts of the pedal.
EAS30805
LUBRICATING THE CLUTCH LEVER
Lubricate the pivoting point and metal-to-metal
moving parts of the lever.
EAS30650
CHECKING THE SIDESTAND
1. Check:
• Sidestand operation
Check that the sidestand moves smoothly.
Rough movement → Repair or replace.
EAS30651
LUBRICATING THE SIDESTAND
Lubricate the pivoting point, metal-to-metal mov-
ing parts and spring contact point of the side-
stand.
EAS30652
CHECKING THE SIDESTAND SWITCH
Refer to “CHECKING THE SWITCHES” on
page 8-123.
EAS30653

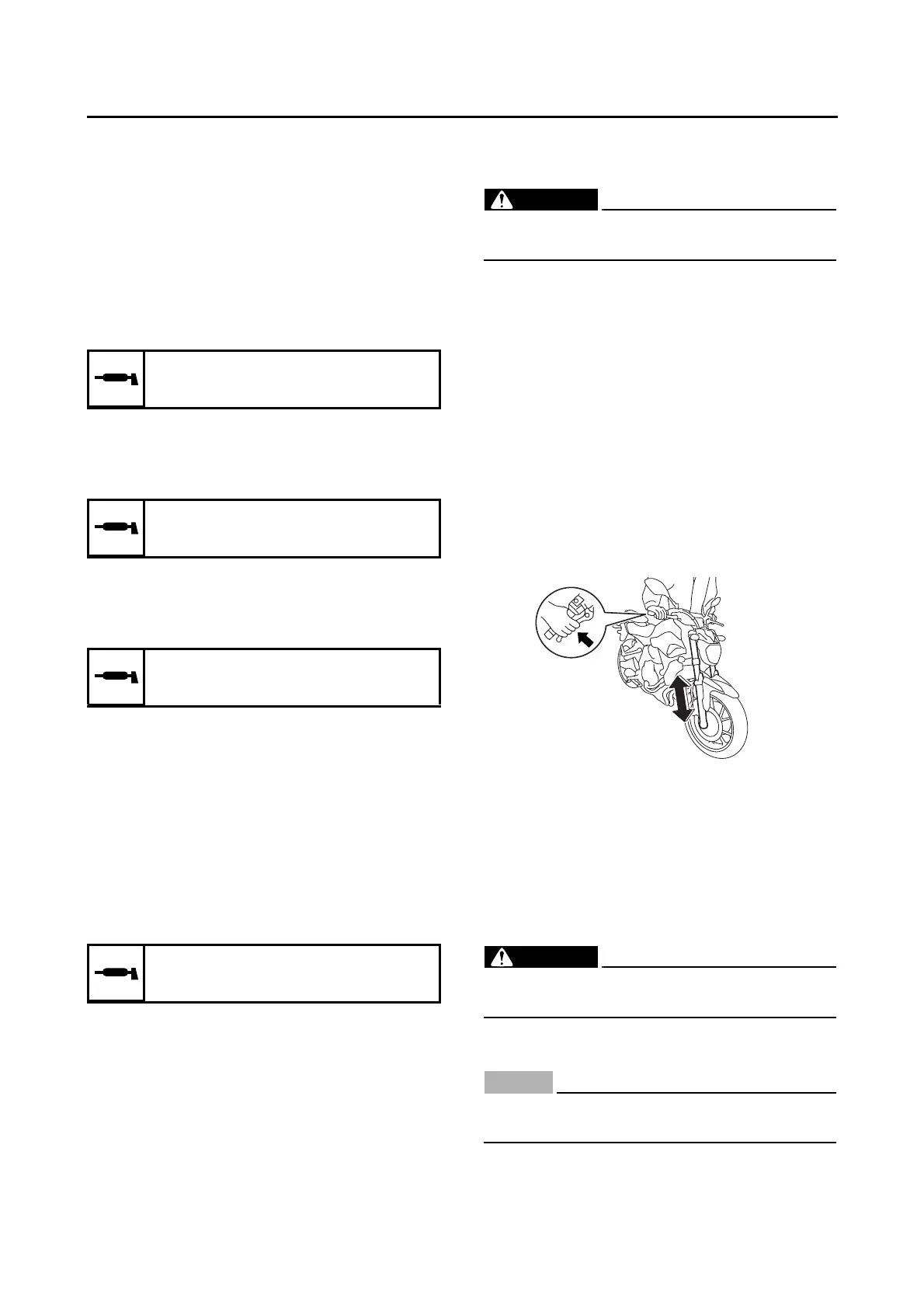

CHECKING THE FRONT FORK
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
2. Check:
• Inner tube
Damage/scratches → Replace.
• Front fork leg
Oil leaks between inner tube and outer tube
→ Replace the oil seal.
3. Hold the vehicle upright and apply the front
brake.
4. Check:
• Front fork operation
Push down hard on the handlebar several
times and check if the front fork rebounds
smoothly.
Rough movement → Repair.
Refer to “FRONT FORK” on page 4-75.
EAS30808
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
Refer to “CHECKING THE REAR SHOCK AB-
SORBER ASSEMBLY” on page 4-93.
EAS30655
ADJUSTING THE REAR SHOCK ABSORBER
ASSEMBLY
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Spring preload
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Spring preload
Recommended lubricant
Silicone grease
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
