ELECTRIC STARTER
5-49
7. Check:
• Bearing
• Oil seal
Damage/wear → Replace the starter motor
front cover.
EAS30326

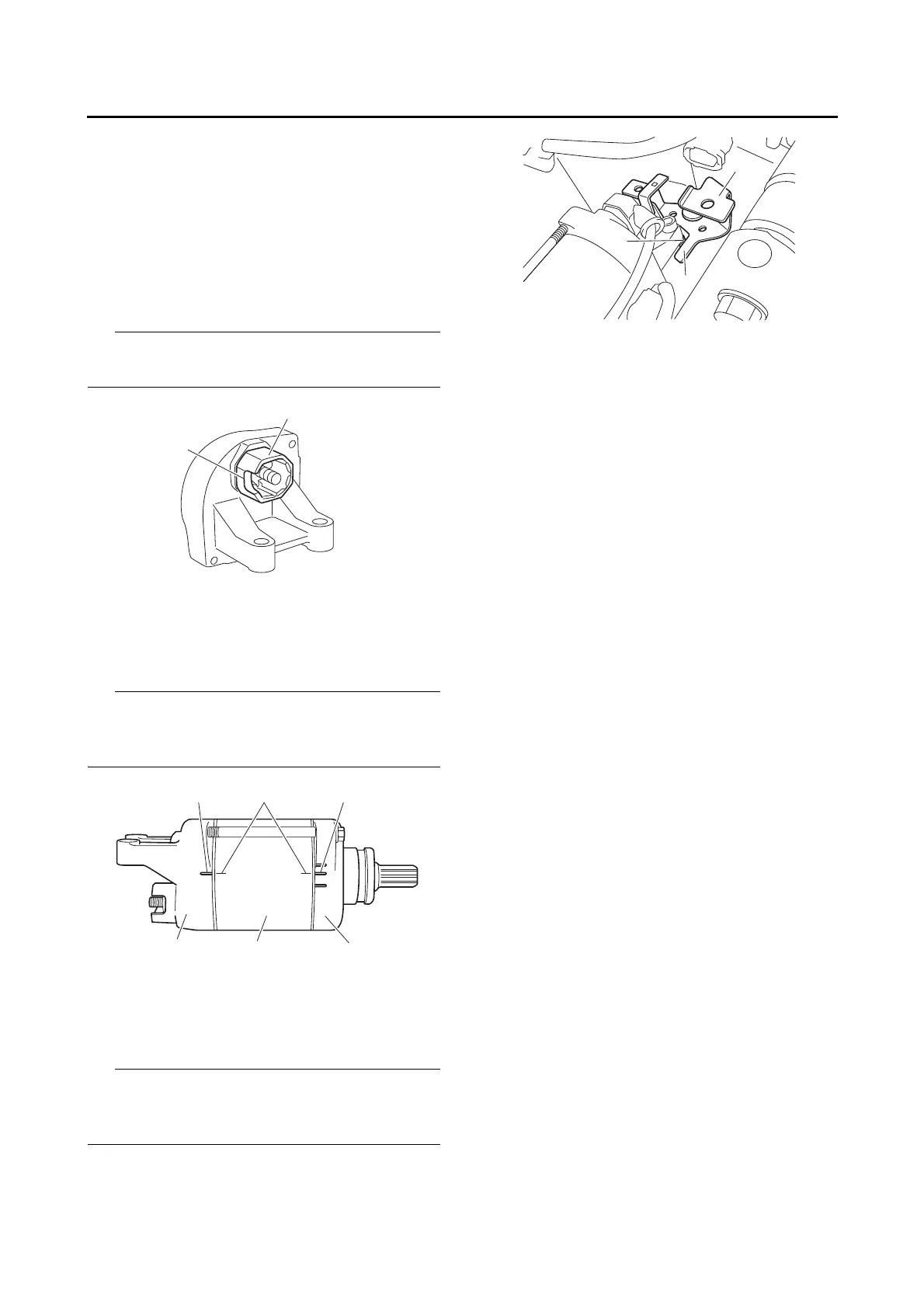

ASSEMBLING THE STARTER MOTOR
1. Install:
• Lead guide “1”
TIP
Make sure that the slot “a” in the lead guide is
facing in the direction shown in the illustration.
2. Install:
• Starter motor yoke “1”
• Starter motor front cover “2”
• Starter motor rear cover “3”
TIP
Align the match marks “a” on the starter motor
yoke with the match marks “b” on the front cover
and rear covers.
EAS30327
INSTALLING THE STARTER MOTOR
1. Install:
• Coupler and hose holder bracket “1”
TIP
Make sure that the tab “a” on the coupler and
hose holder bracket contacts the projection “b”
on the cylinder block.
a
1
21
ba b
3
a
b
1
