Yamaha 2014 MT-07 Service Manual

FEATURES
1-16
EAS30712
ABS WARNING LIGHT AND OPERATION
ABS warning light
• If the ABS warning light comes on while riding, stop the vehicle, and then turn the main switch to
“OFF”, then back to “ON”. The ABS operation is normal if the ABS warning light comes on, then goes
off.
• If the rear wheel is raced with the vehicle on a suitable stand, the ABS warning light may flash or come
on. If this occurs, turn the main switch to “OFF”, then back to “ON”. The ABS operation is normal if the
ABS warning light comes on, then goes off.
• The ABS operation is normal if the ABS warning light flashes.
• Even if the ABS warning light remains on and does not go off, or if it comes on after riding, conven-
tional braking performance of the vehicle is maintained.

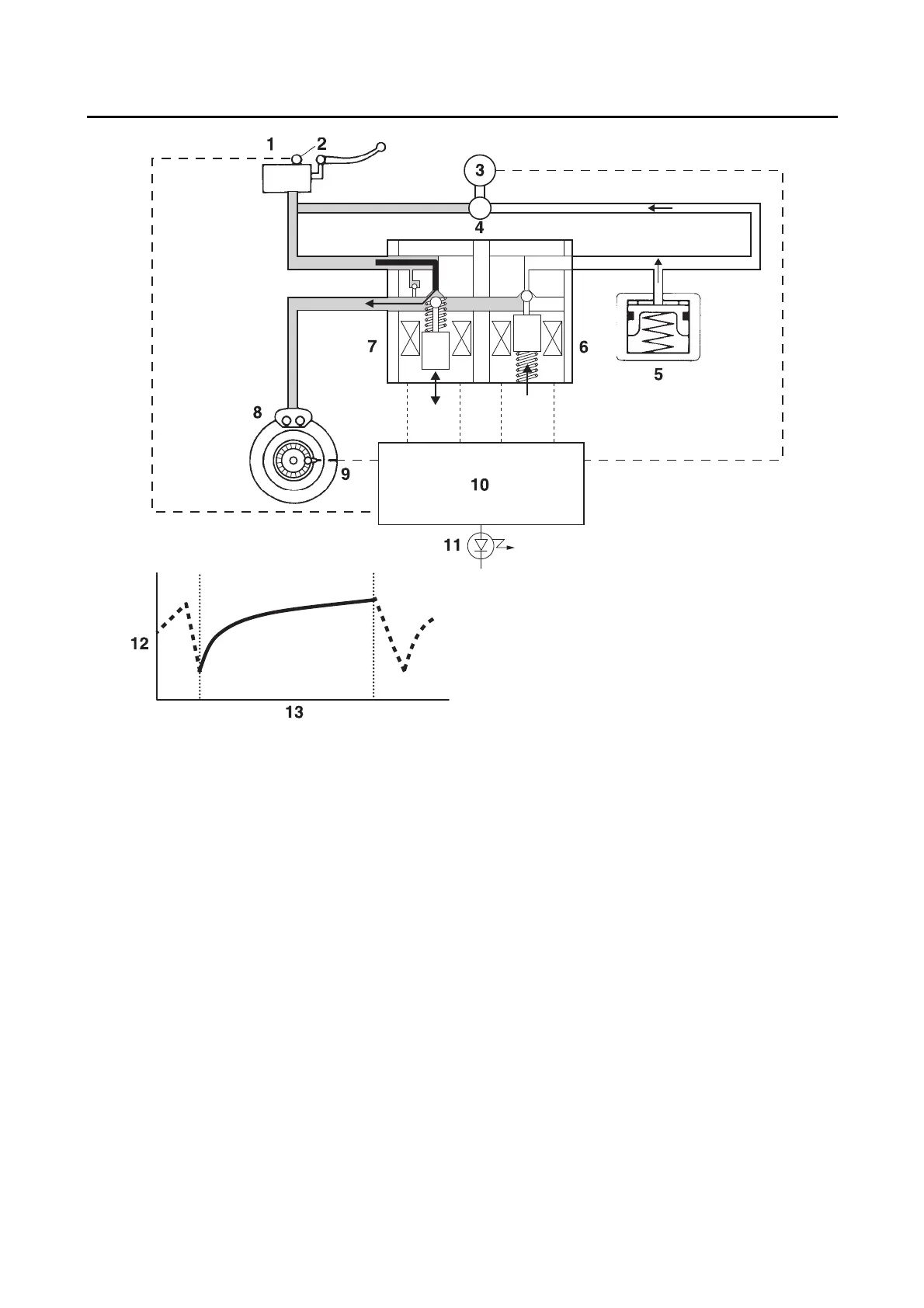

1. Brake master cylinder
2. Brake light switch
3. ABS motor
4. Hydraulic pump
5. Buffer chamber
6. Outlet solenoid valve
7. Inlet solenoid valve
8. Brake caliper
9. Wheel sensor
10.ABS ECU
11.ABS warning light
12.Brake fluid pressure
13.Time

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
