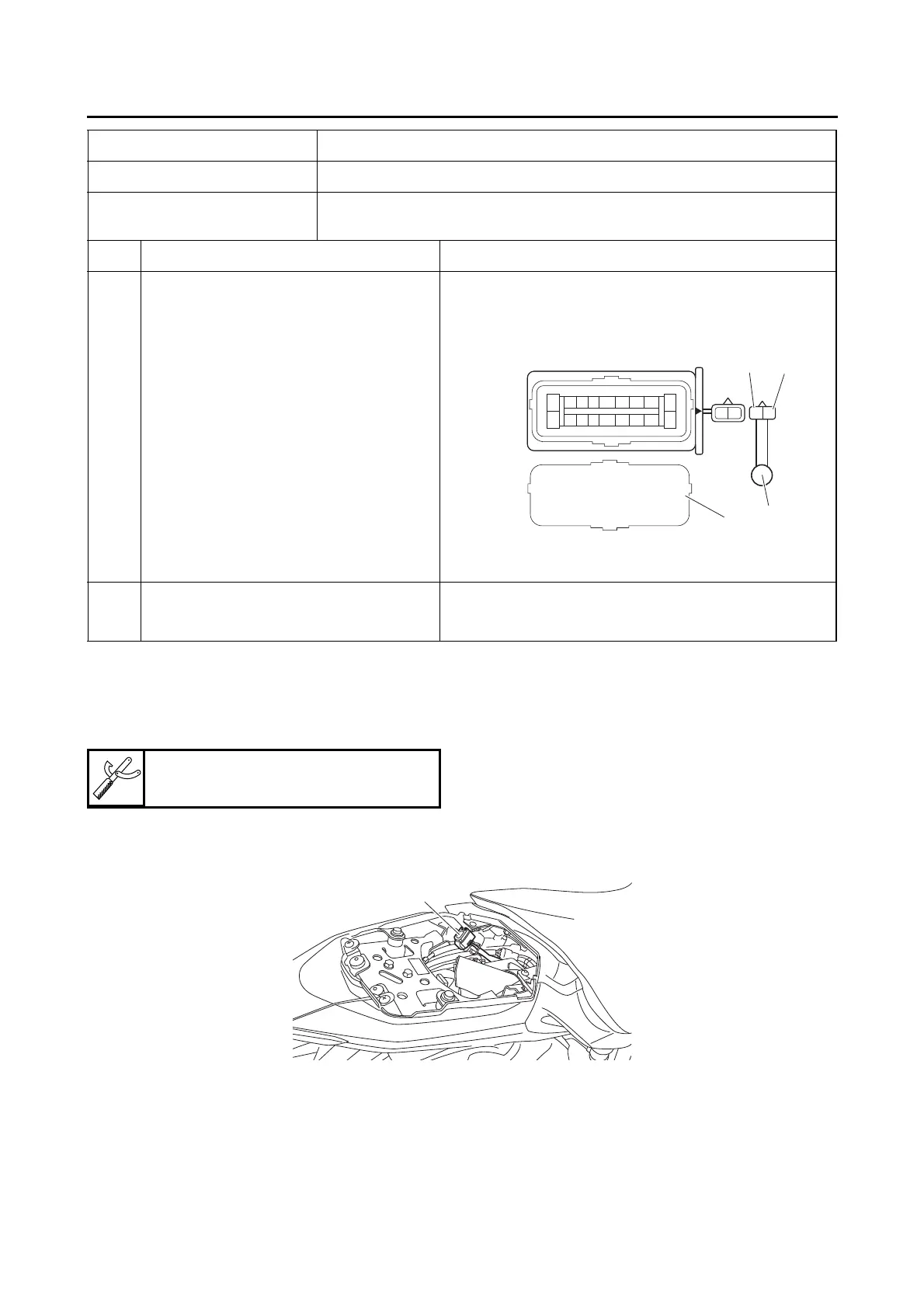

ABS (ANTI-LOCK BRAKE SYSTEM)
8-116
EAS31139
[B-3] DELETING THE FAULT CODES
To delete the fault codes, use the Yamaha diagnostic tool. For information about deleting the fault
codes, refer to the operation manual of the Yamaha diagnostic tool.
Check that all the displayed fault codes are deleted.
Connecting the Yamaha diagnostic tool
Remove the protective cap “1”, and then connect the Yamaha diagnostic tool to the coupler.
EAS31140
[C-1] FINAL CHECK
Check all the following items to complete the inspection.
If the process is not completed properly, start again from the beginning.
2 Defective rear wheel sensor • Check that there is no short circuit between the gray
terminal “1” and the white terminal “2”.
• If there is a short circuit, the wheel sensor is defective.
Repair or replace the wheel sensor.
3. ABS ECU
4. Rear wheel sensor
3 Defective hydraulic unit assembly Replace the hydraulic unit assembly.
Refer to “ABS (ANTI-LOCK BRAKE SYSTEM)” on page
4-62.
Yamaha diagnostic tool
90890-03231
Fault code No. 64
Item Rear wheel sensor power supply (voltage of power supply is low)
Symptom
Power voltage supplied from the ABS ECU to the rear wheel sensor is
too low.
Order Item/components and probable cause Check or maintenance job
WB
GyW
R/W
R/L
WBB
WG
G/RW/Y
YGG
Br/W L/RL/BB/L
B
B/G
1
2
3
4
1

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
