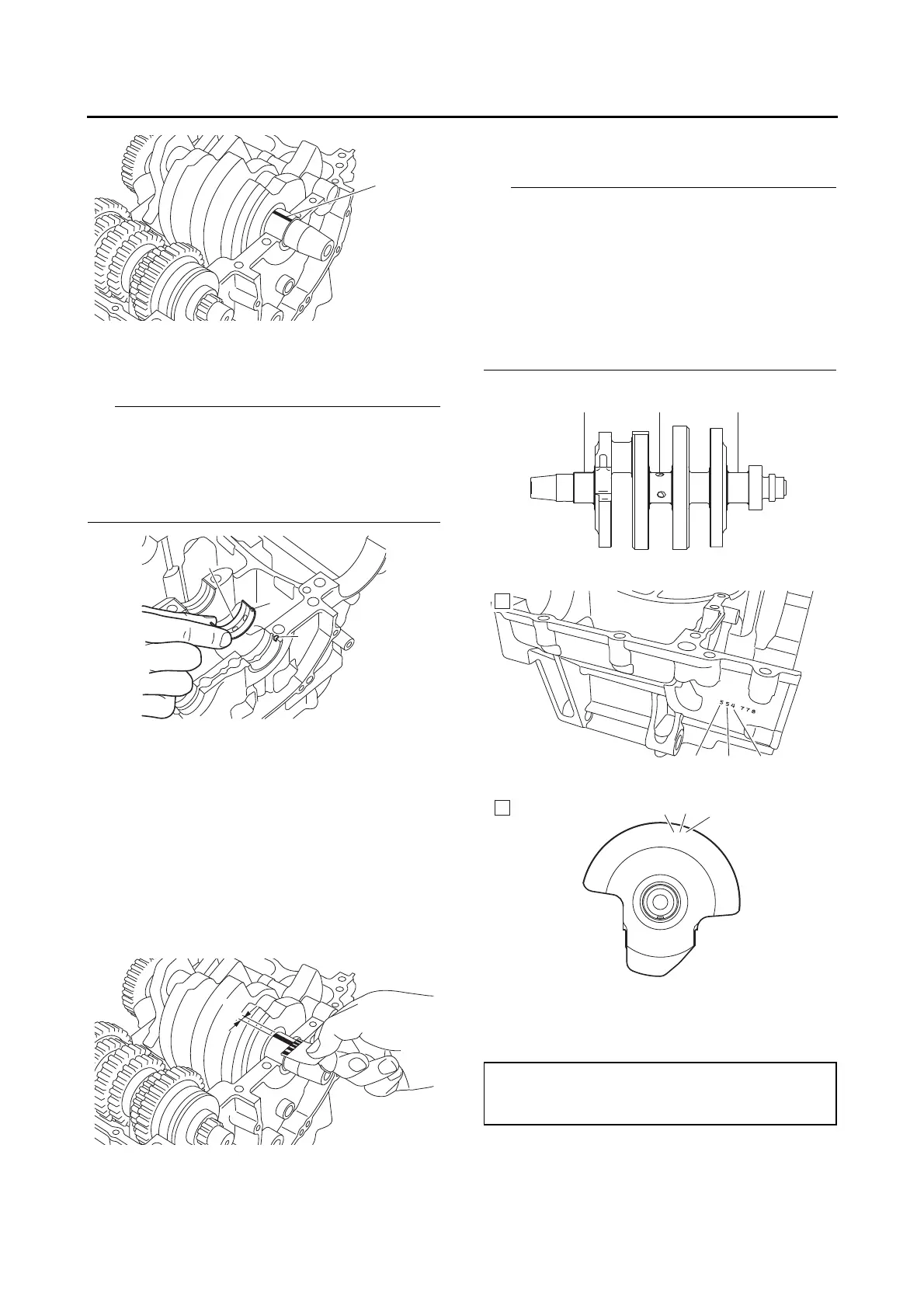

CRANKSHAFT AND BALANCER SHAFT
5-90
d. Install the crankshaft journal lower bearings
“3” into the crankcase and assemble the
crankcase and cylinder.
TIP
• Align the projections “d” of the crankshaft jour-
nal lower bearings with the notches “e” in the
crankcase.
• Do not move the crankshaft until the clearance
measurement has been completed.
e. Tighten the bolts to specification in the tight-
ening sequence cast on the crankcase.
Refer to “CRANKCASE” on page 5-69.
f. Remove the crankcase and the crankshaft
journal lower bearings.
g. Measure the compressed Plastigauge®
width “g” on each crankshaft journal.
If the crankshaft-journal-to-crankshaft-jour-
nal-bearing clearance is out of specification,
select replacement crankshaft journal bear-
ings.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
5. Select:
• Crankshaft journal bearings (J
1
–J
3
)
TIP
• The numbers “A” stamped into the crankcase
and the numbers “B” stamped into the crank-
shaft web are used to determine the replace-
ment crankshaft journal bearing sizes.
•J
1
–J
3
refer to the bearings shown in the crank-
case and crankshaft web illustration.
• If J
1
–J
3
are the same, use the same size for all
of the bearings.
For example, if the crankcase J
1
and crank-
shaft web J
1
numbers are 5 and 3 respective-
ly, then the bearing size for J
1
is:
2
e
d
3
g
J
1
(crankcase) – J
1
(crankshaft web) –2
= 5 – 3 – 2
= 0 (white–pink)
J1 J2 J3
A
J1
J2 J3
33322
J1
J3
J2
B

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
