Trouble recovery
146

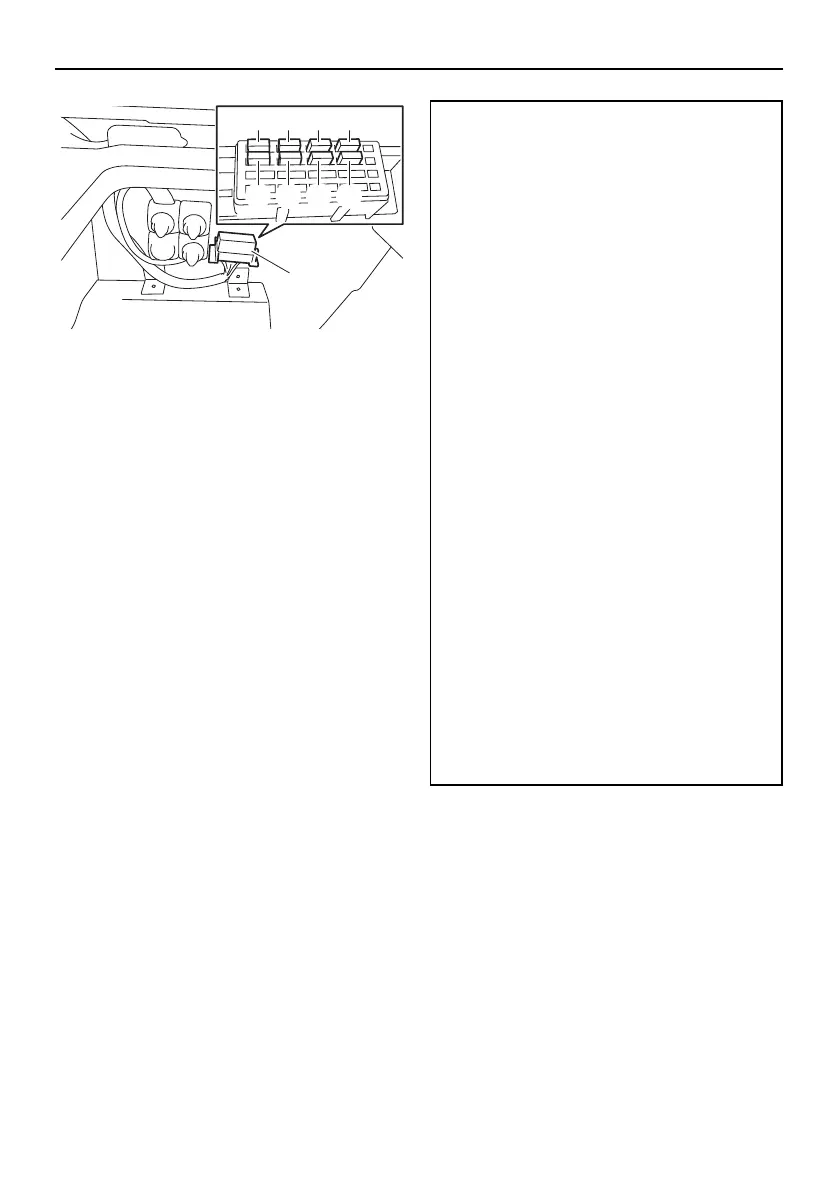

1 Accessory fuse cover
2 Display/Buzzer/GPS/Audio Controller/
Switch Panel fuse
3 CLH/CLG/Power Port/USB fuse
4 Horn fuse
5 Bilge pump fuse
6 Power distribution module fuse
7 USB fuse
8 Accessory 2 fuse
9 Accessory 1 fuse
(5) Replace the blown fuse with the spare
fuse of the correct amperage by using
the fuse puller.
(6) Install the fuse box cover.
(7) If an accessory fuse was replaced, install
the accessory fuse holder or cover.
(8) Close the engine hood.
Fuse amperage:
Electronic throttle valve fuse:
10 A
Fuel pump fuse:
10 A
Main relay drive fuse:
10 A
Main fuse:
20 A
BCU fuse:
50 A
Display/Buzzer/GPS/Audio Controller/
Switch Panel fuse:
20 A
CLH/CLG/Power Port/USB fuse:
20 A
Horn fuse:
7.5 A
Bilge pump fuse:
3 A
Power distribution module fuse:
20 A
USB fuse:
3 A
Accessory 1 fuse:
20 A
Accessory 2 fuse:
20 A
