Yamaha 255XE 2021 - Multi-Function Display Operation Modes

Instrument operation
40
Multi-function display unit
operation
Because the multi-function display unit is
equipped with a touch screen, you can touch
the display directly to operate the display
functions.
In addition to touching the display, you can
use the joystick to operate the display func-
tions.

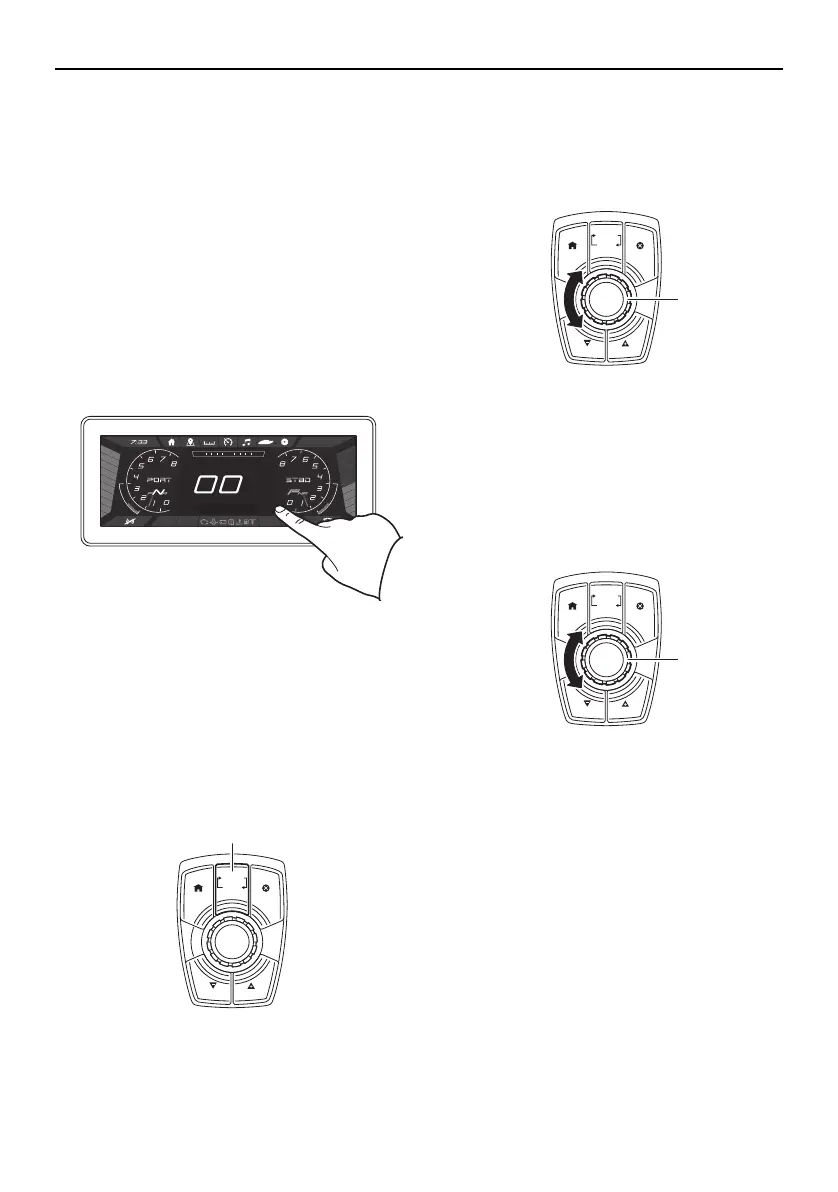

Touching the multi-function display
Using the joystick
This joystick has the following two operation
modes.
 Volume control mode
 Navigation control mode
Push the “VOLUME–(SCROLL)” button to
switch the operation mode.
1 “VOLUME–(SCROLL)” button
Volume control mode
Turn the joystick knob to change the audio
volume.
1 Joystick knob
Navigation control mode
(1) Turn the joystick knob to change the se-
lected setting or item.
1 Joystick knob
(2) Push the joystick knob to select an item
or confirm a setting.
