Description
30

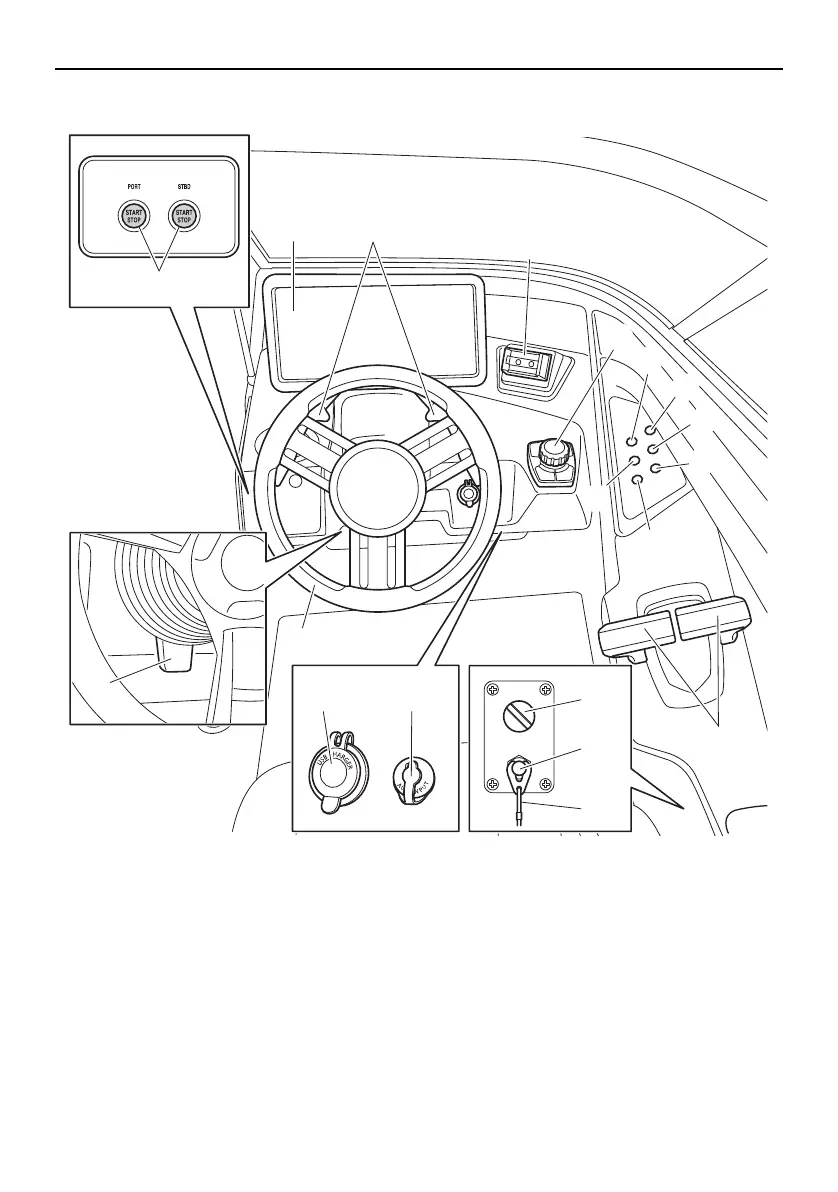

Helm components
1 “START/STOP” button (page 33)
2 Multi-function display unit (page 40)
3 Throttle/shift paddle (255XD)
4 Phone holder
5 Controller (page 41)
6 “HORN” switch (page 39)
7 “BILGE” swsitch (page 39)
8 “BLOWER” switch (page 39)
9 “ACC”2 switch (page 39)
10 “ACC”1 switch (page 39)
11 “NAV LIGHTS” switch (page 39)
12 Remote control lever (page 34)
13 Main switch (page 33)
14 Engine shut-off switch (page 32)
15 Engine shut-off cord (lanyard) (page 32)
16 USB charger
17 Aux input (page 56)
18 Steering wheel (page 37)
19 Tilt lever (page 38)
